Fuel Door Lock Switch: Testing and Inspection

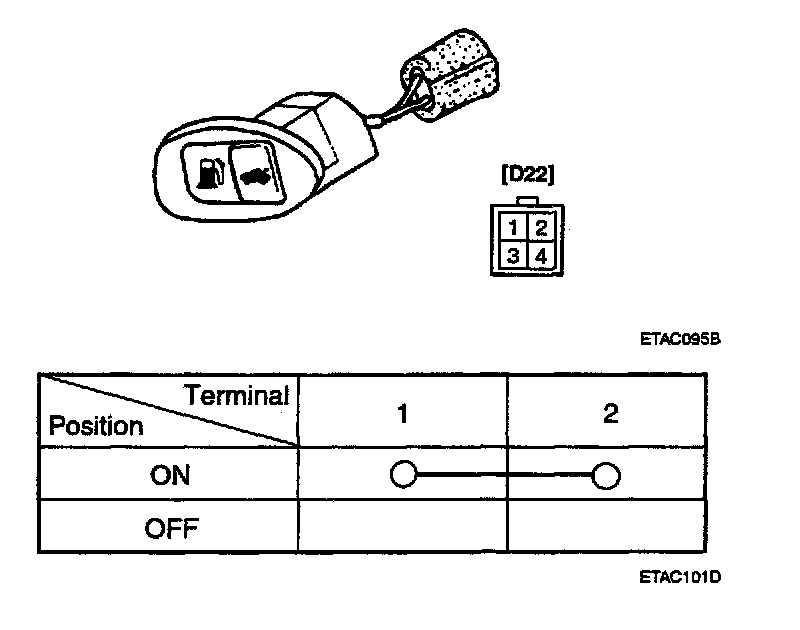

FUEL FILLER LID RELEASE SWITCH
Remove the fuel filler lid release switch and check that there is continuity between the terminals.
