Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Doors, Hood and Trunk
>>
Trunk / Liftgate
>>
Diagrams
>>
Exploded Views
Exploded Views

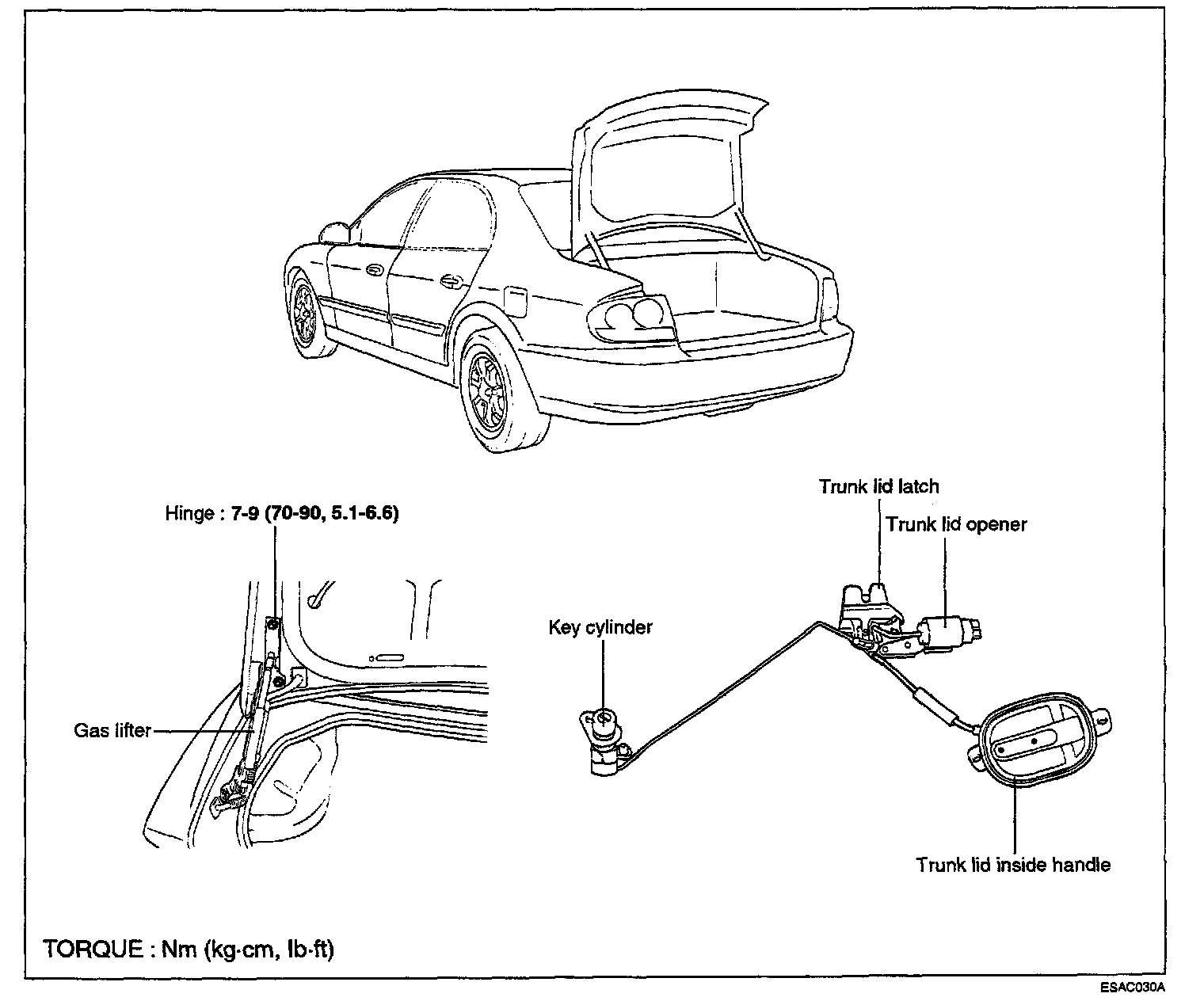

Trunk Lid:
