Cowl, Package Tray, Luggage Side Trim Removal

REMOVAL

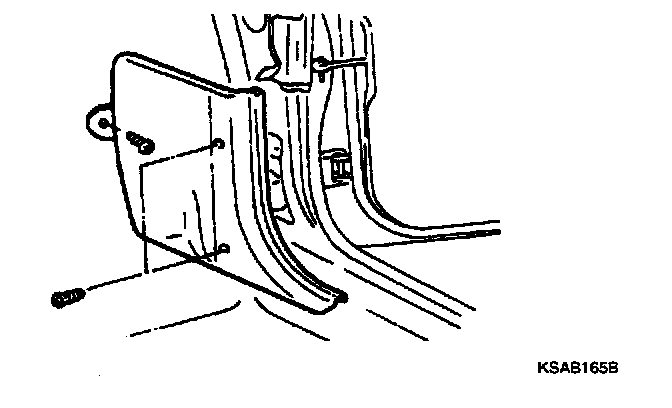

COWL SIDE TRIM
Remove the cowl side trim after removing the screws.

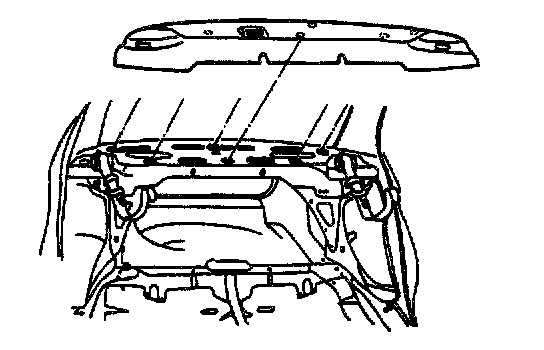

REAR PACKAGE TRAY TRIM
1. Remove the rear seat
2. Disconnect the high mounting stop lamp connector and the rear speaker connector.




3. Remove the trim plugs holding the rear package tray trim and remove the trim.

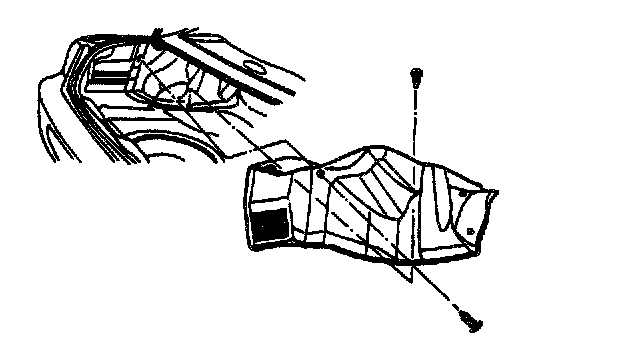

LUGGAGE SIDE TRIM
Remove the screws and trim plugs from luggage side trim.
