Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

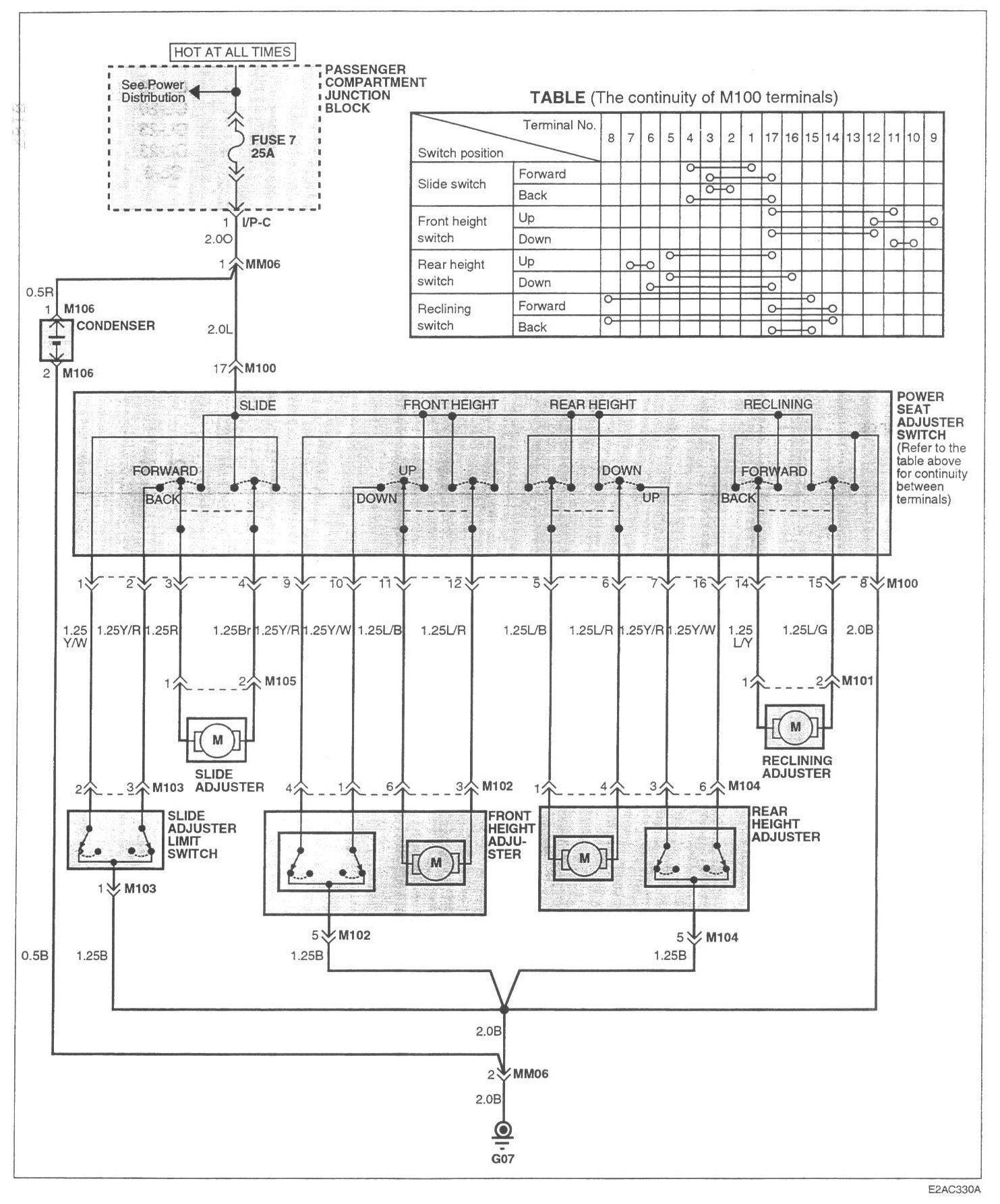

Image SD-152 Power Seat (1):
