Home >> Hyundai >> 2002 >> Sonata LX V6-2.7L >> Repair and Diagnosis >> Body and Frame >> Seats >> Locations

Seats: Locations

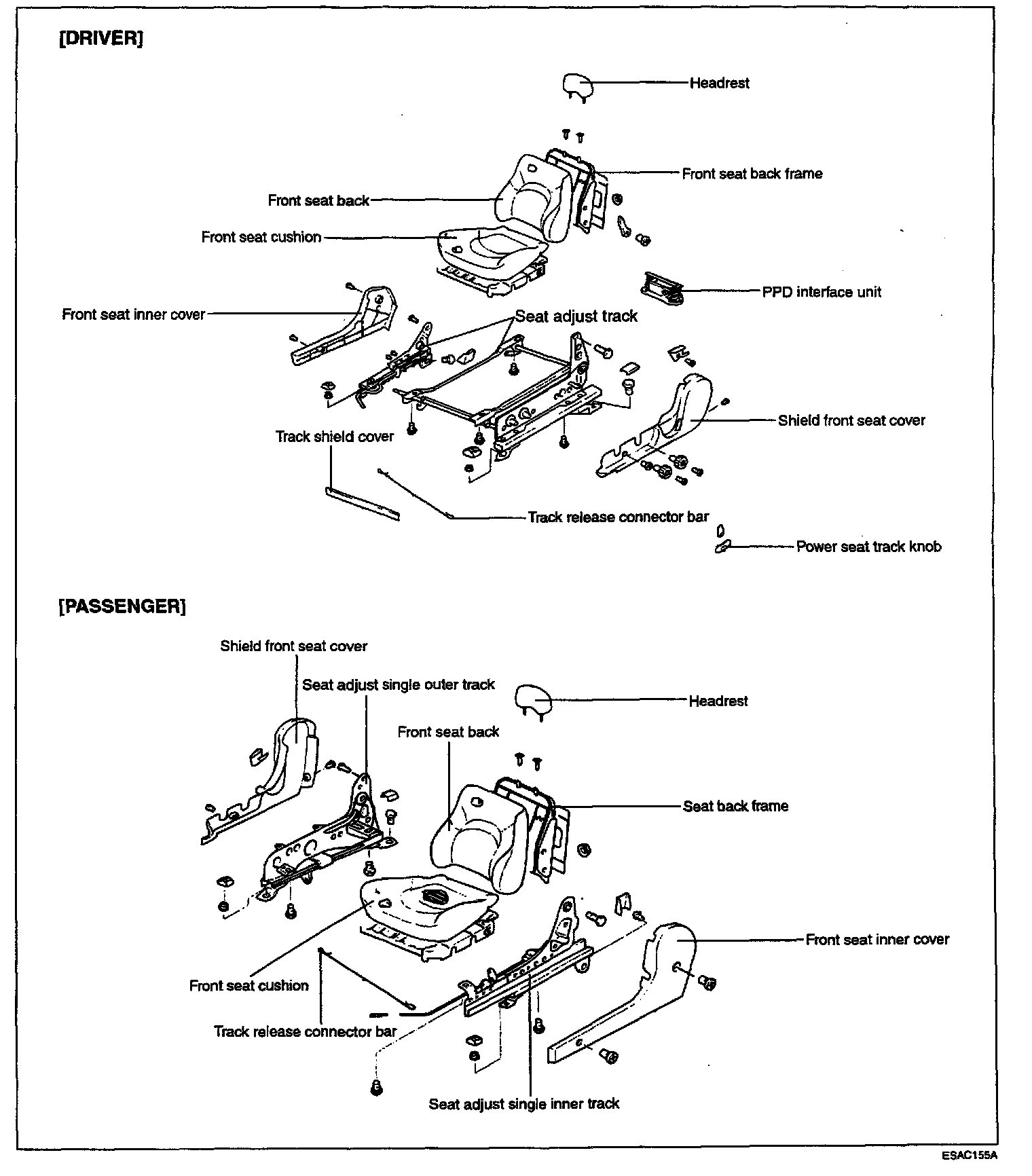

Front Seat:

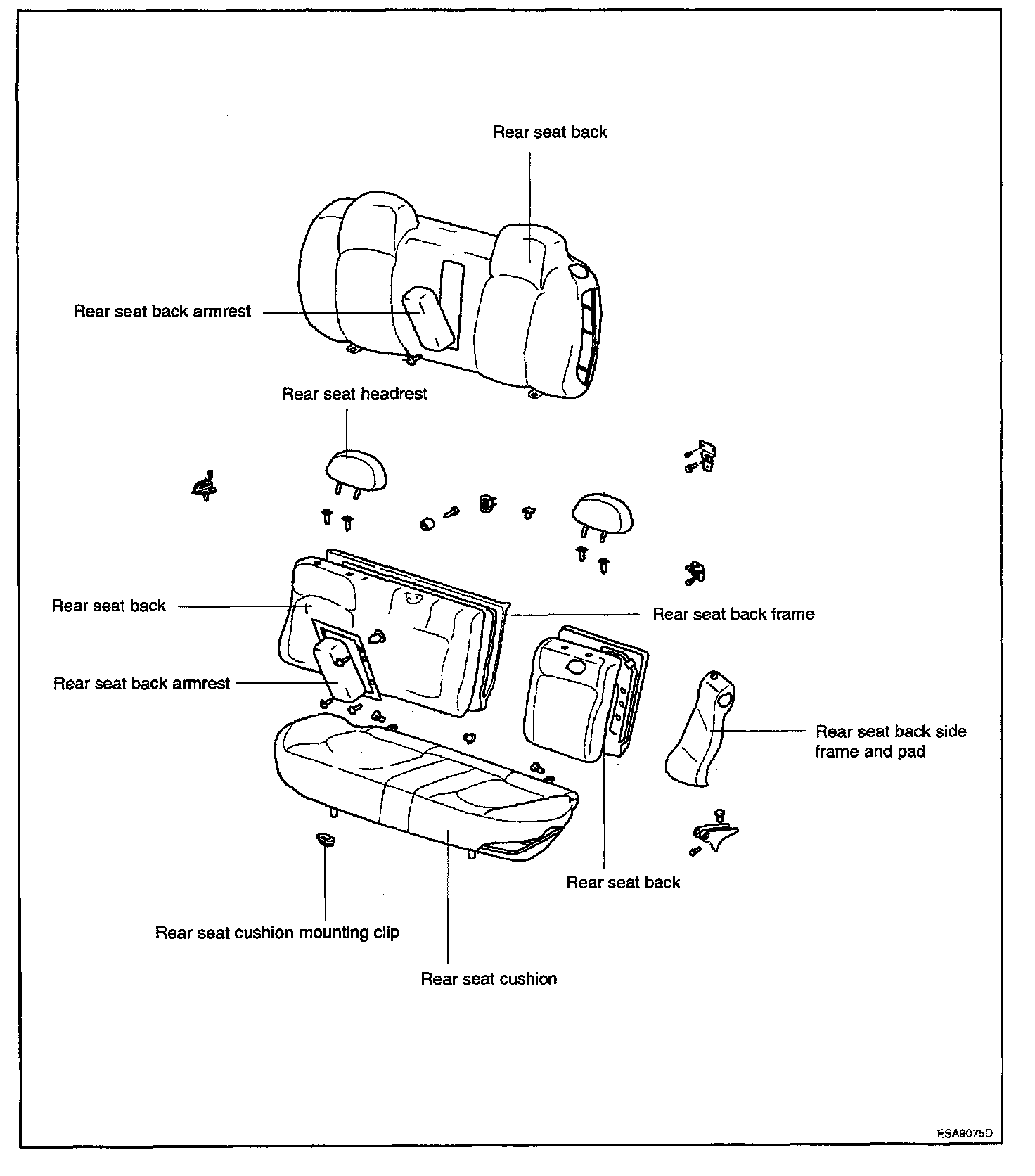

Rear Seat:
