Seat Temperature Switch: Testing and Inspection

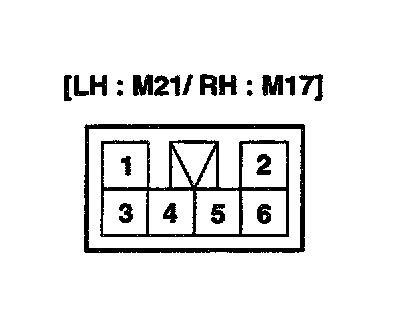

SEAT WARMER SWITCH
1. Disconnect the negative (-) battery terminal.
2. Remove the seat warmer switch from the floor console upper cover.

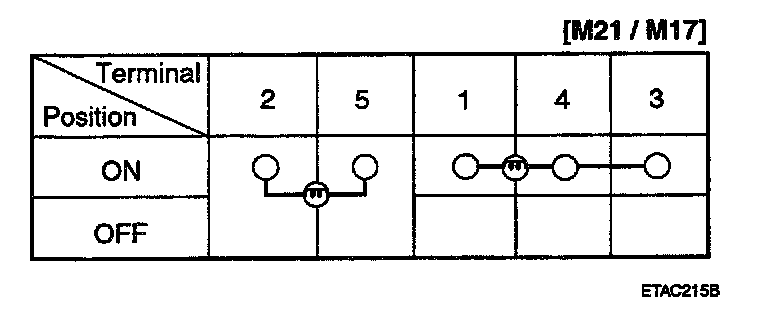

3. Check for continuity between the terminals.
SEAT WARMER SWITCH
1. Disconnect the negative (-) battery terminal.
2. Remove the seat warmer switch from the floor console upper cover.
3. Check for continuity between the terminals.
