Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
D Connectors (Door Harness)
D Connectors (Door Harness)

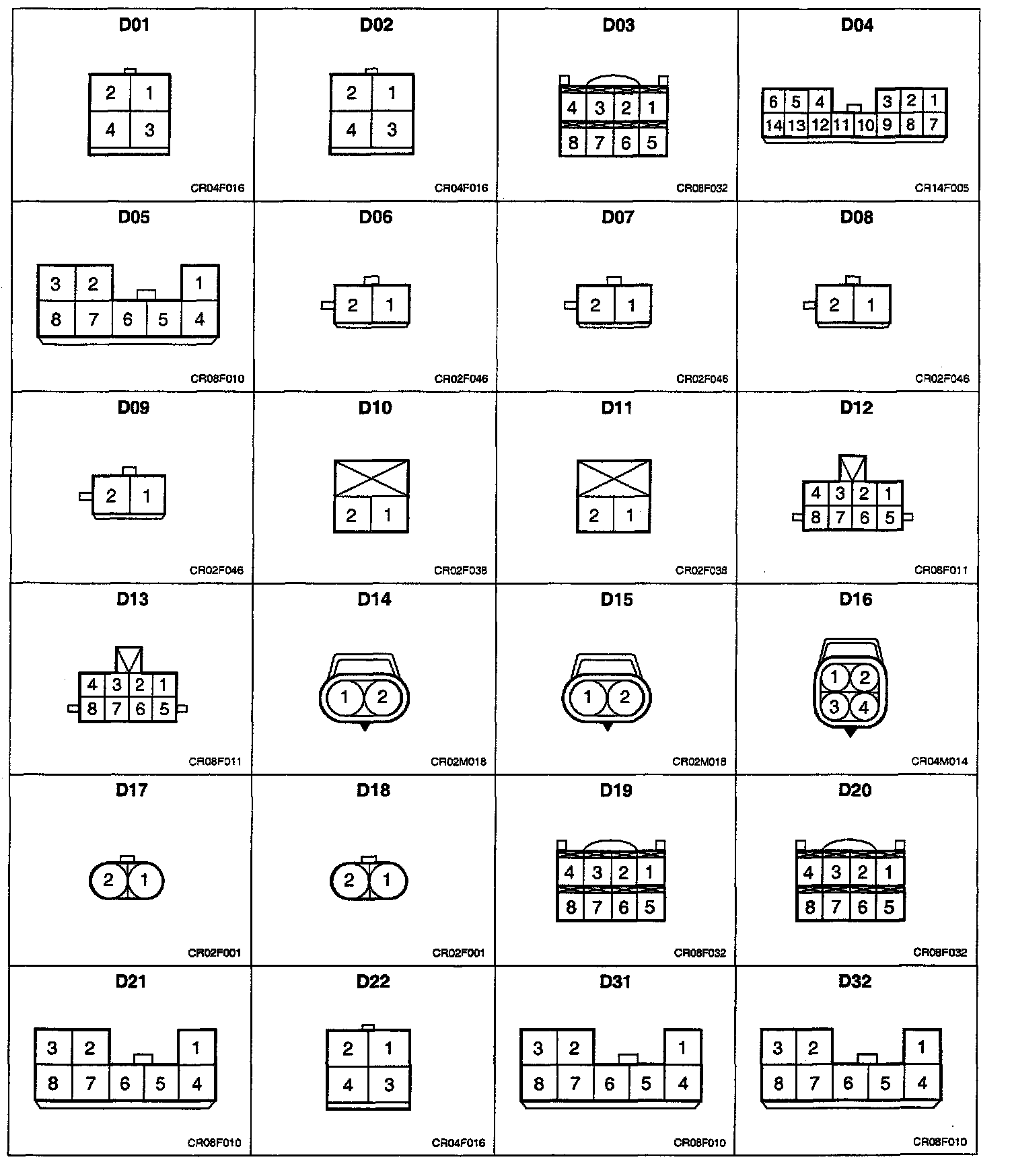

D01 - D32:

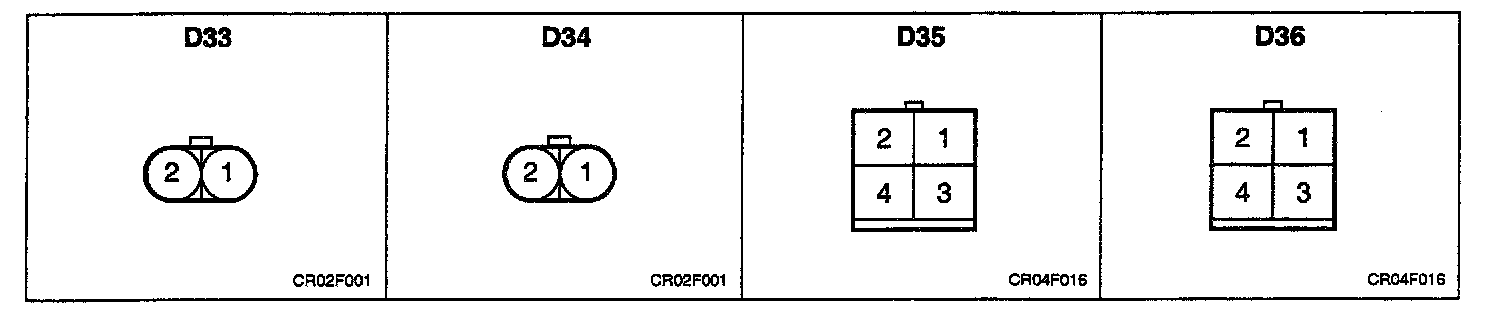

D33 - D36:
