System Diagram

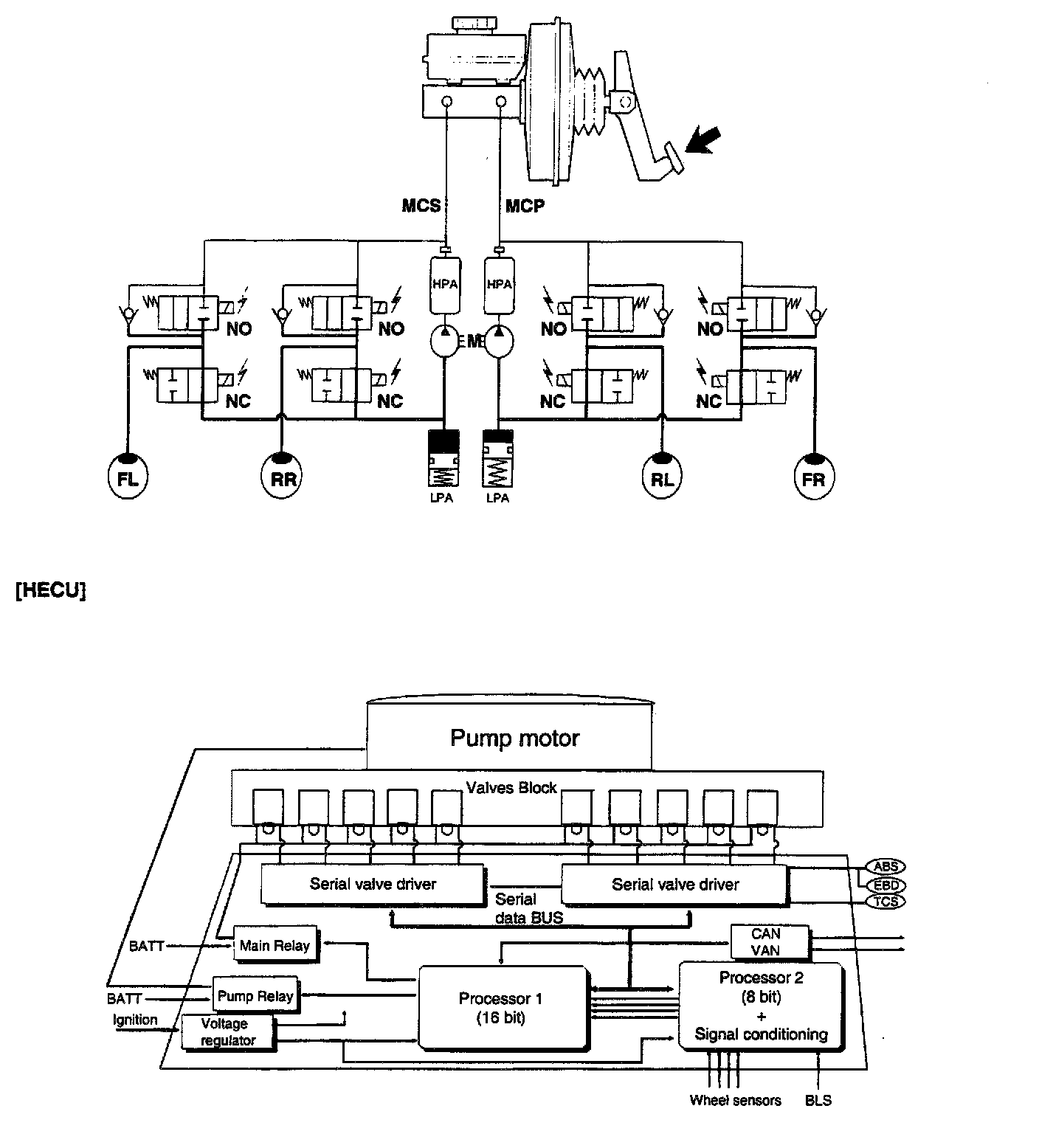

Image SD-110 Anti-Lock Brake System / Traction Control System (1):

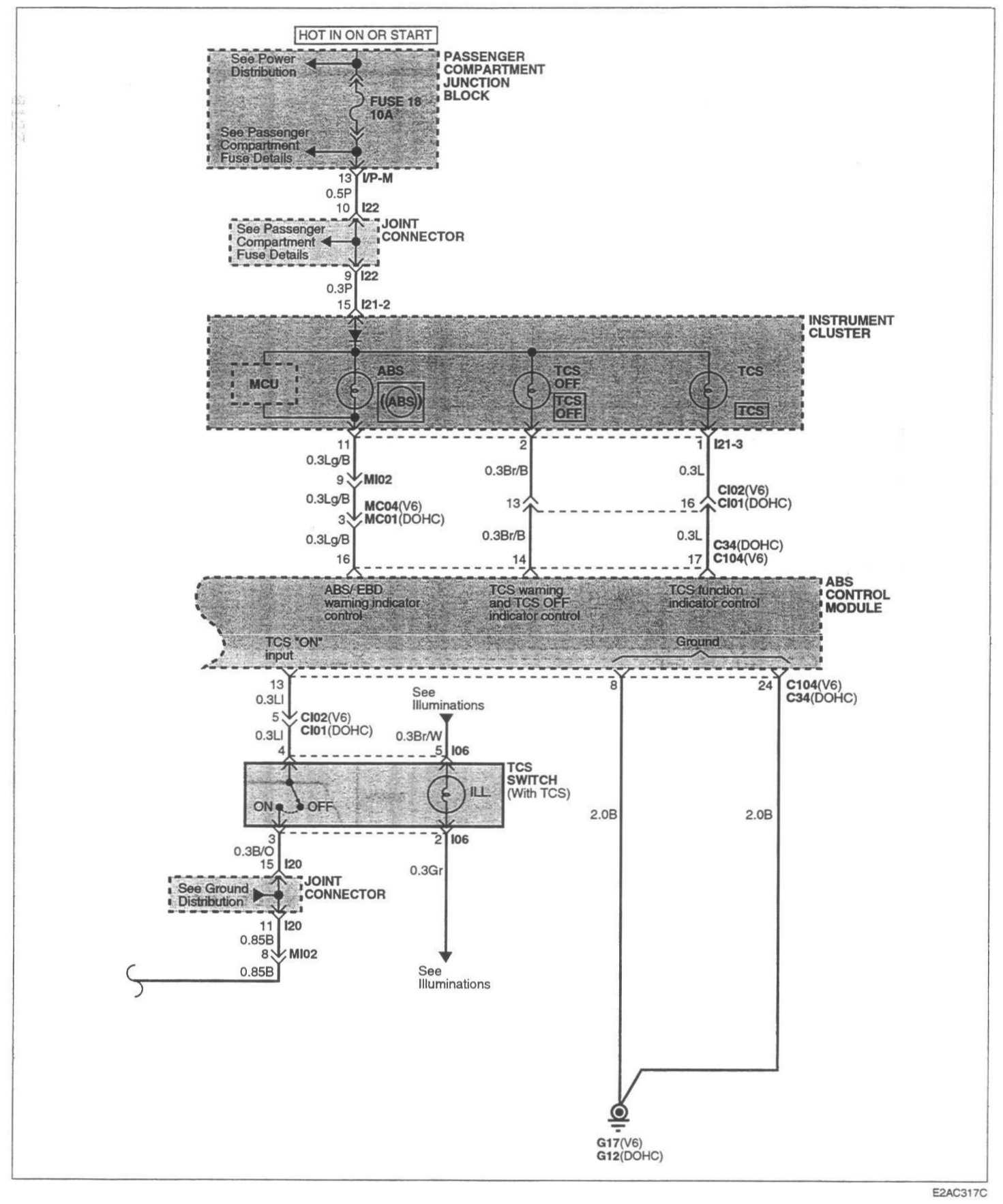

Image SD-111 Anti-Lock Brake System / Traction Control System (2):

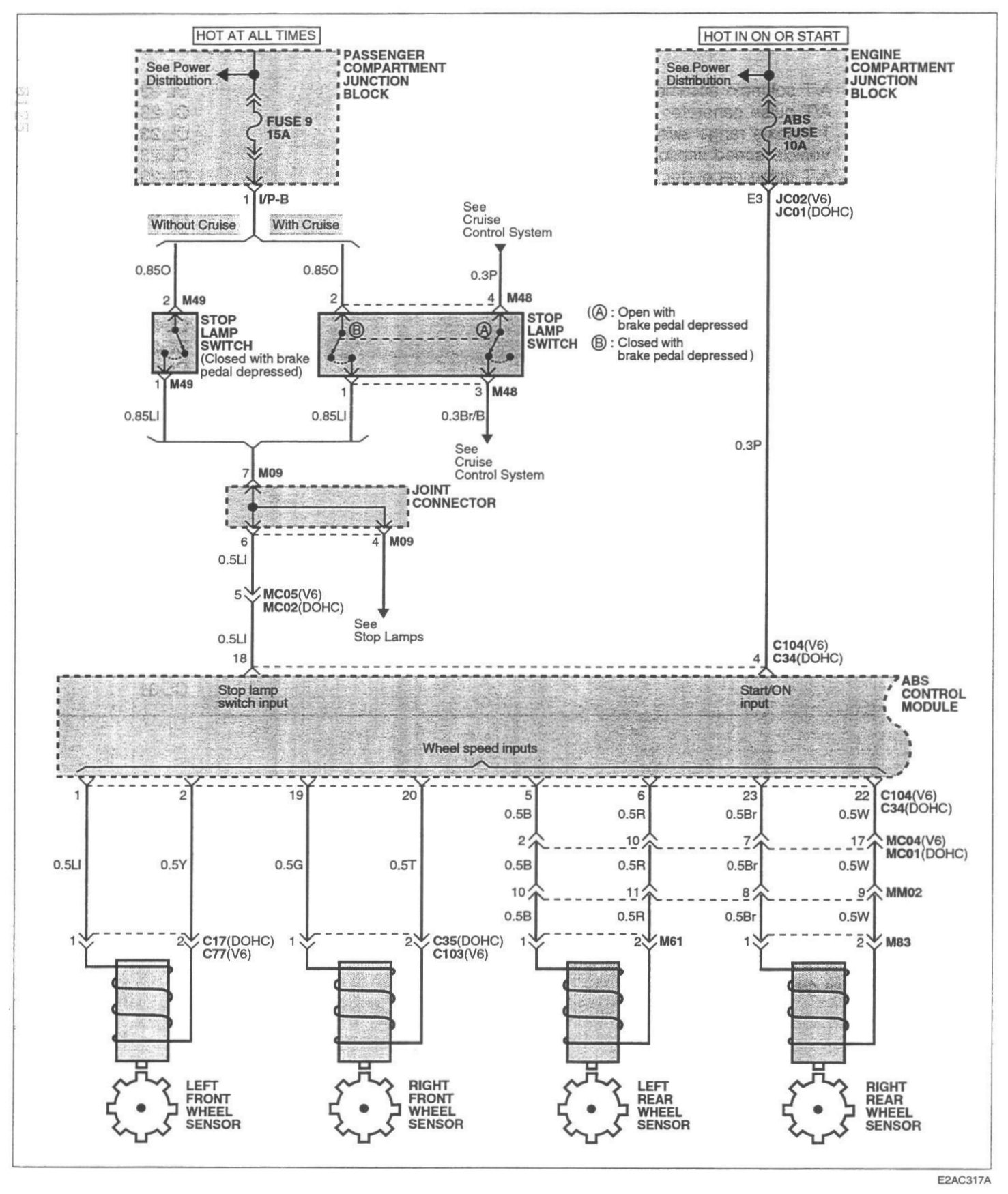

Image SD-112 Anti-Lock Brake System / Traction Control System (3):
