Cruise Control
Cruise Control

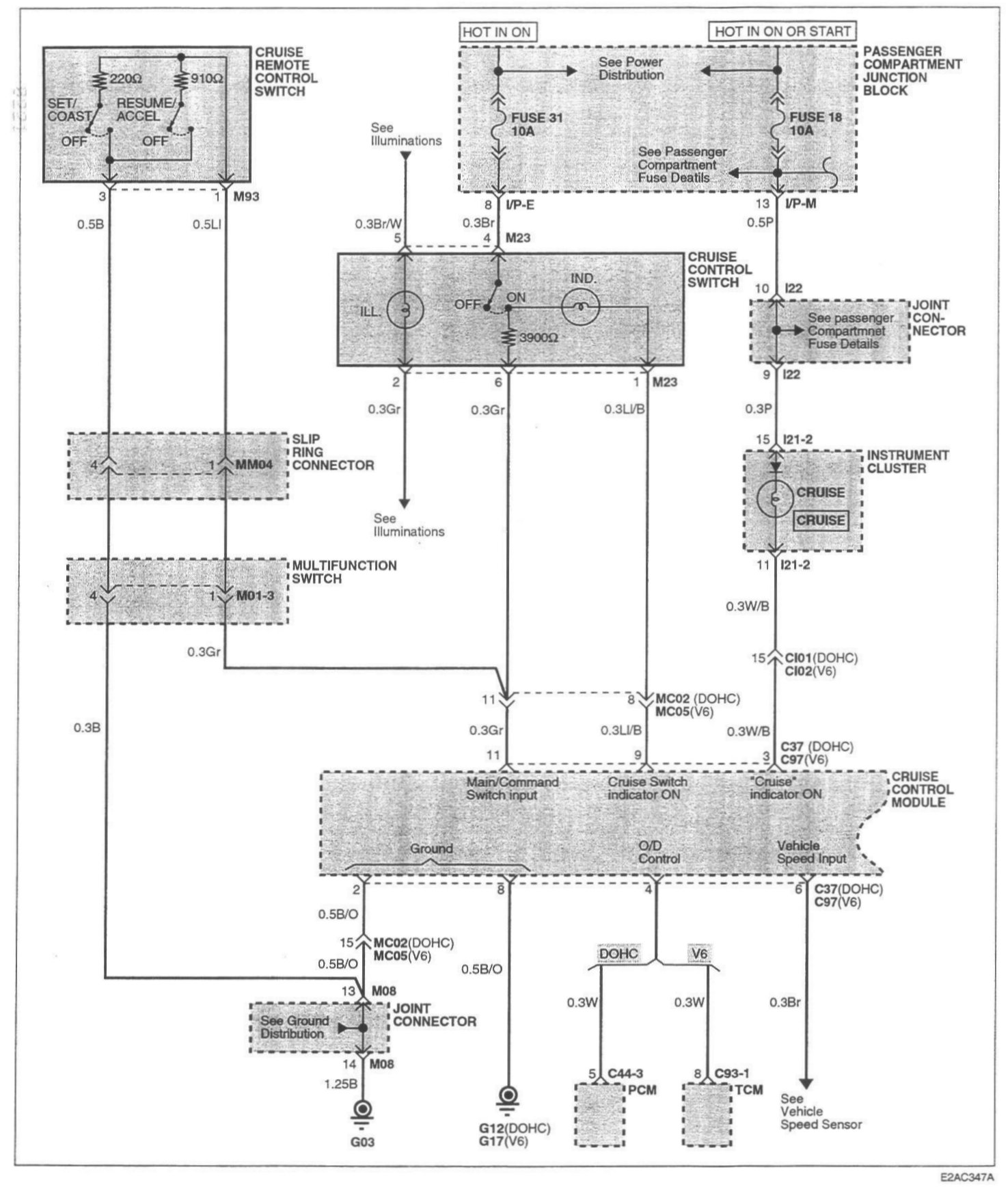

Image SD-206 Cruise Control System (1):

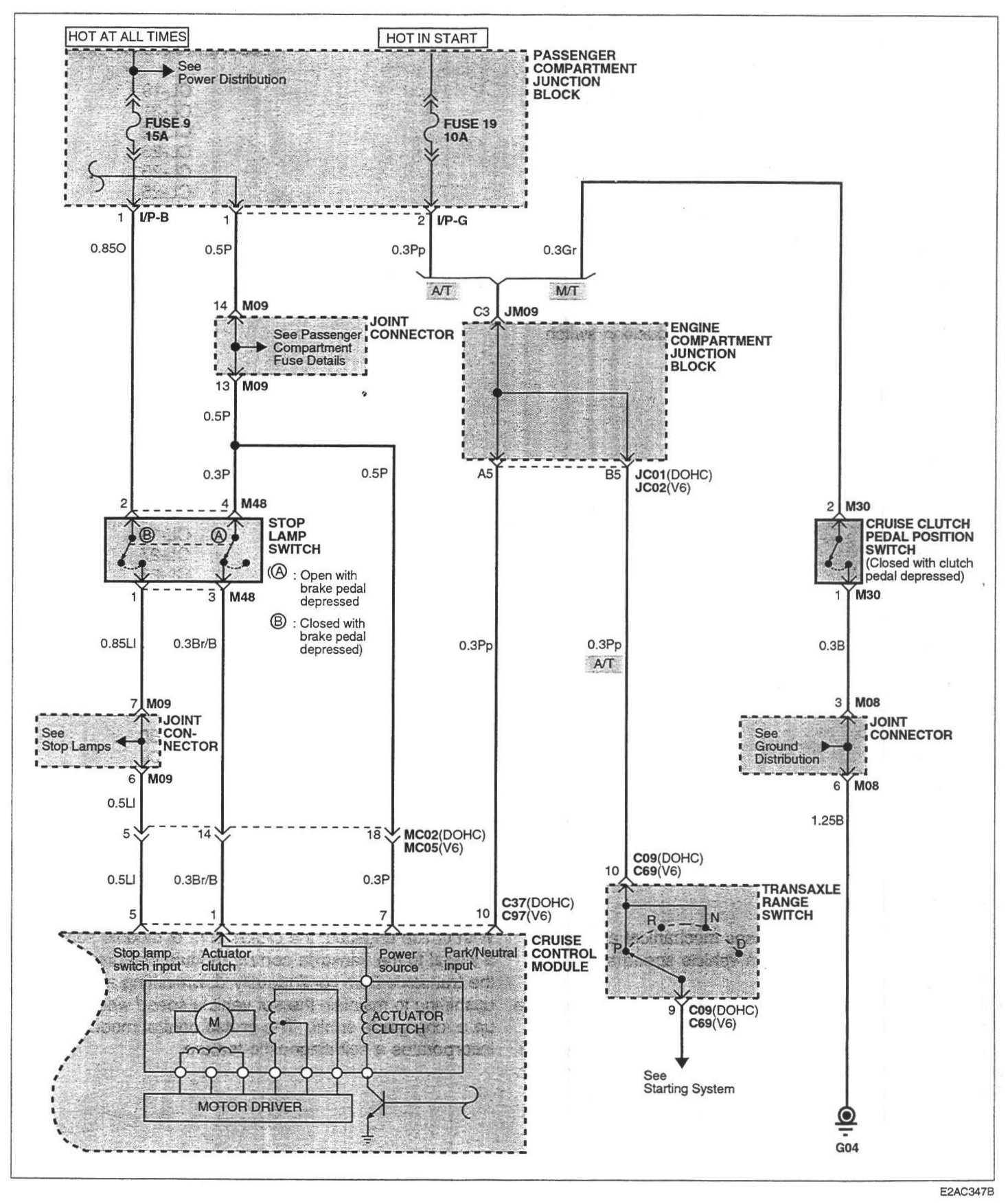

Image SD-207 Cruise Control System (2):
