Blower & A/C Controls (Auto)

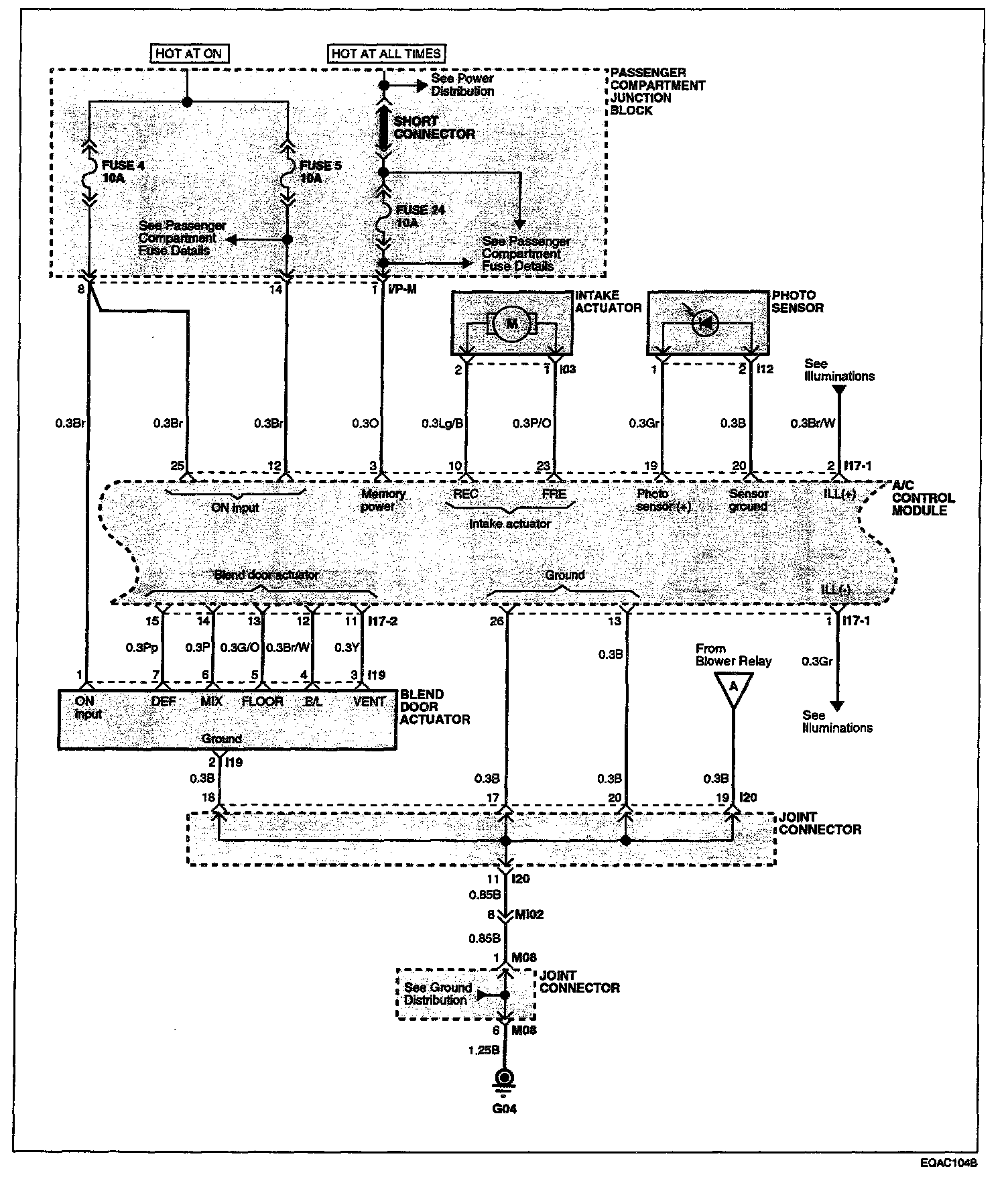

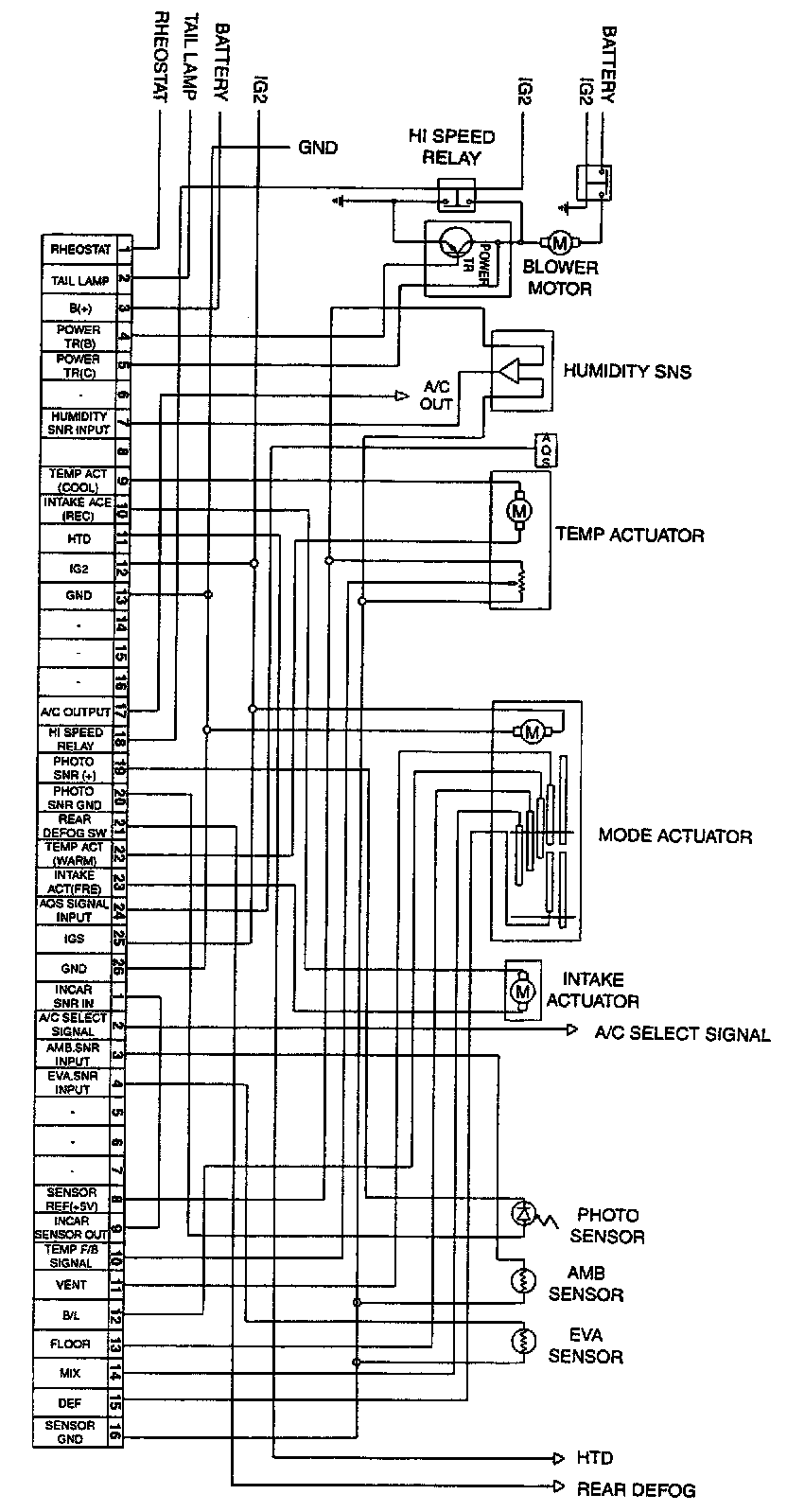

Blower And A/C Controls (Automatic) (1):

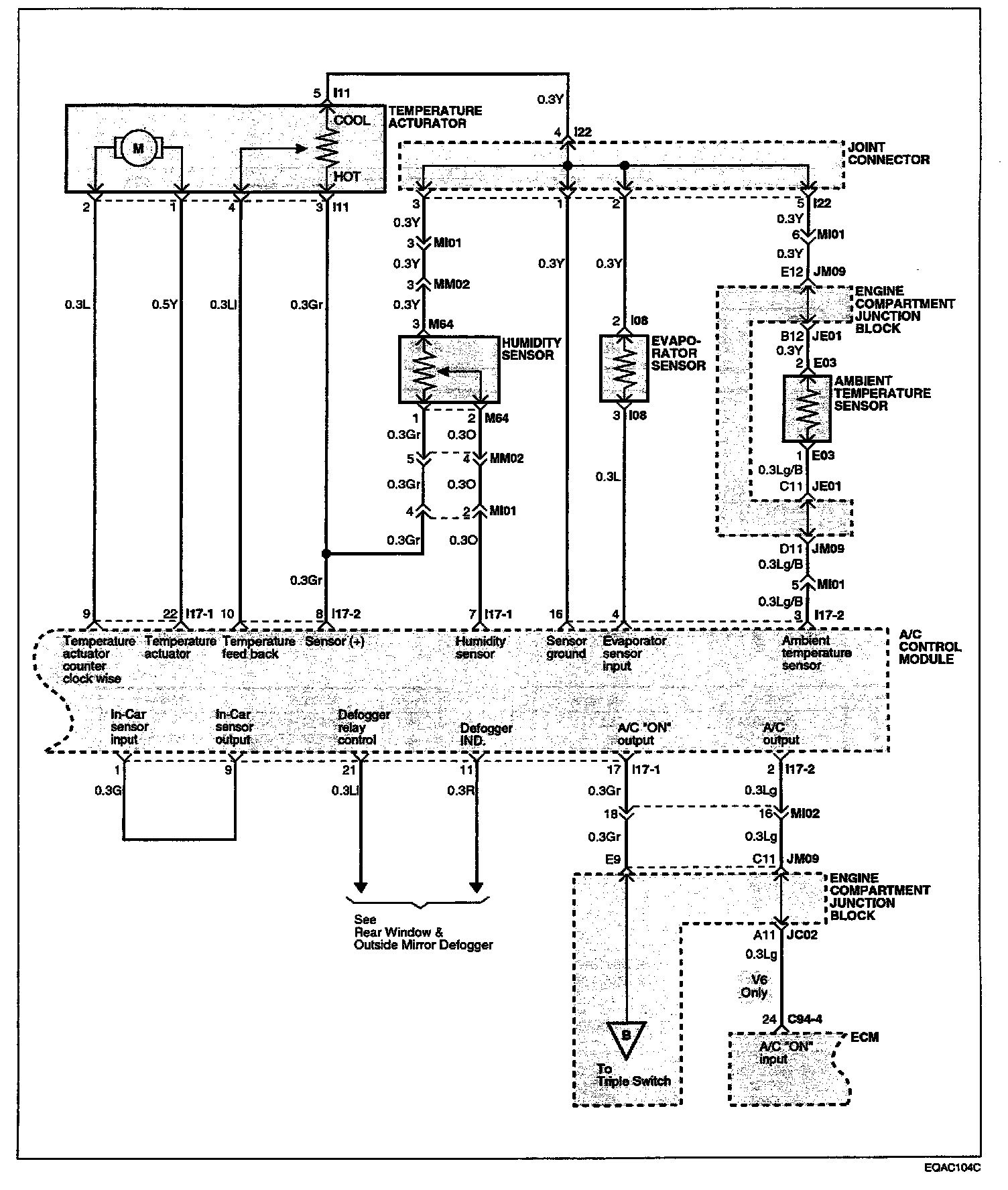

Blower And A/C Controls (Automatic) (2):

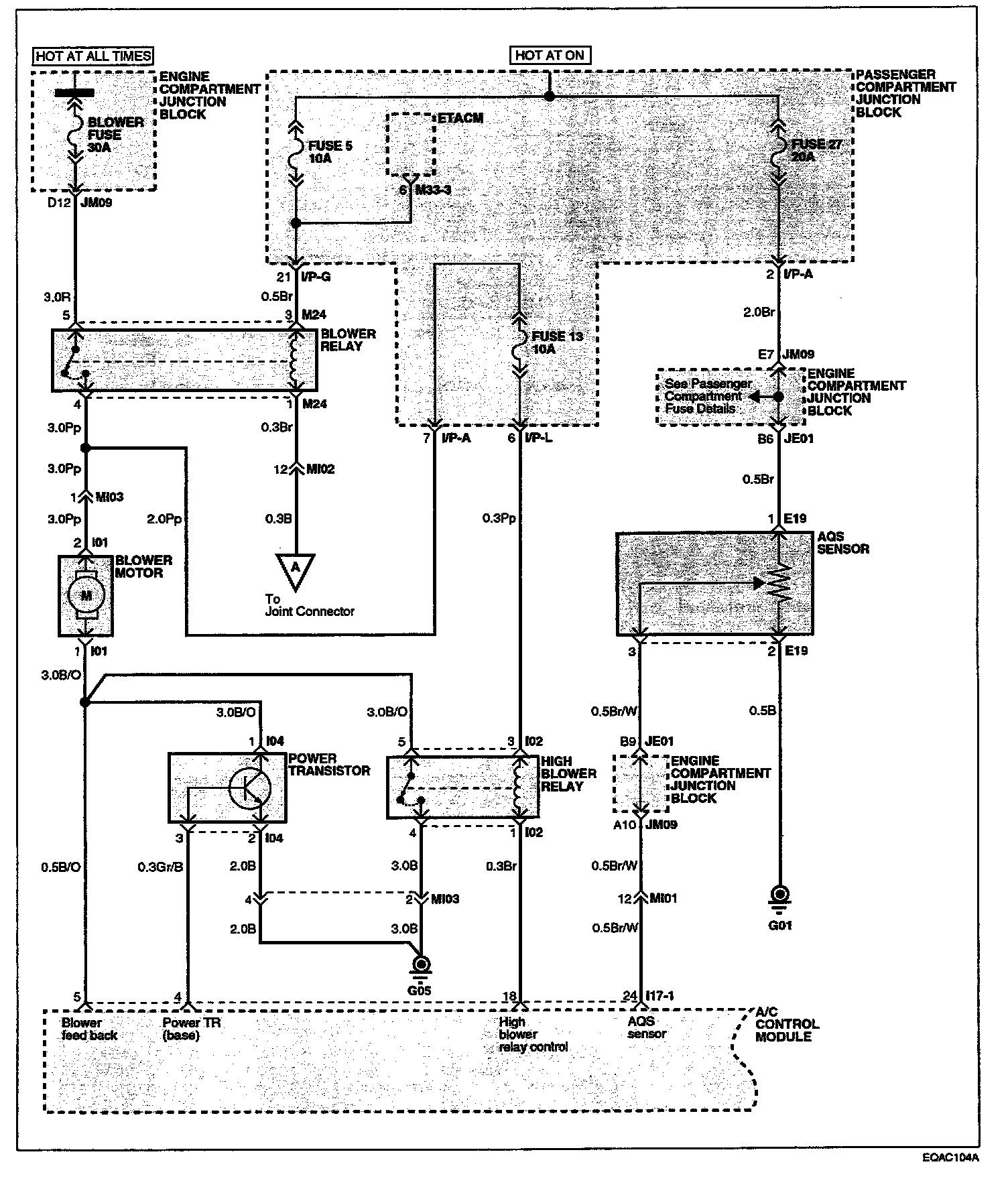

Blower And A/C Controls (Automatic) (3):
