Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
Radio, Stereo, and Compact Disc

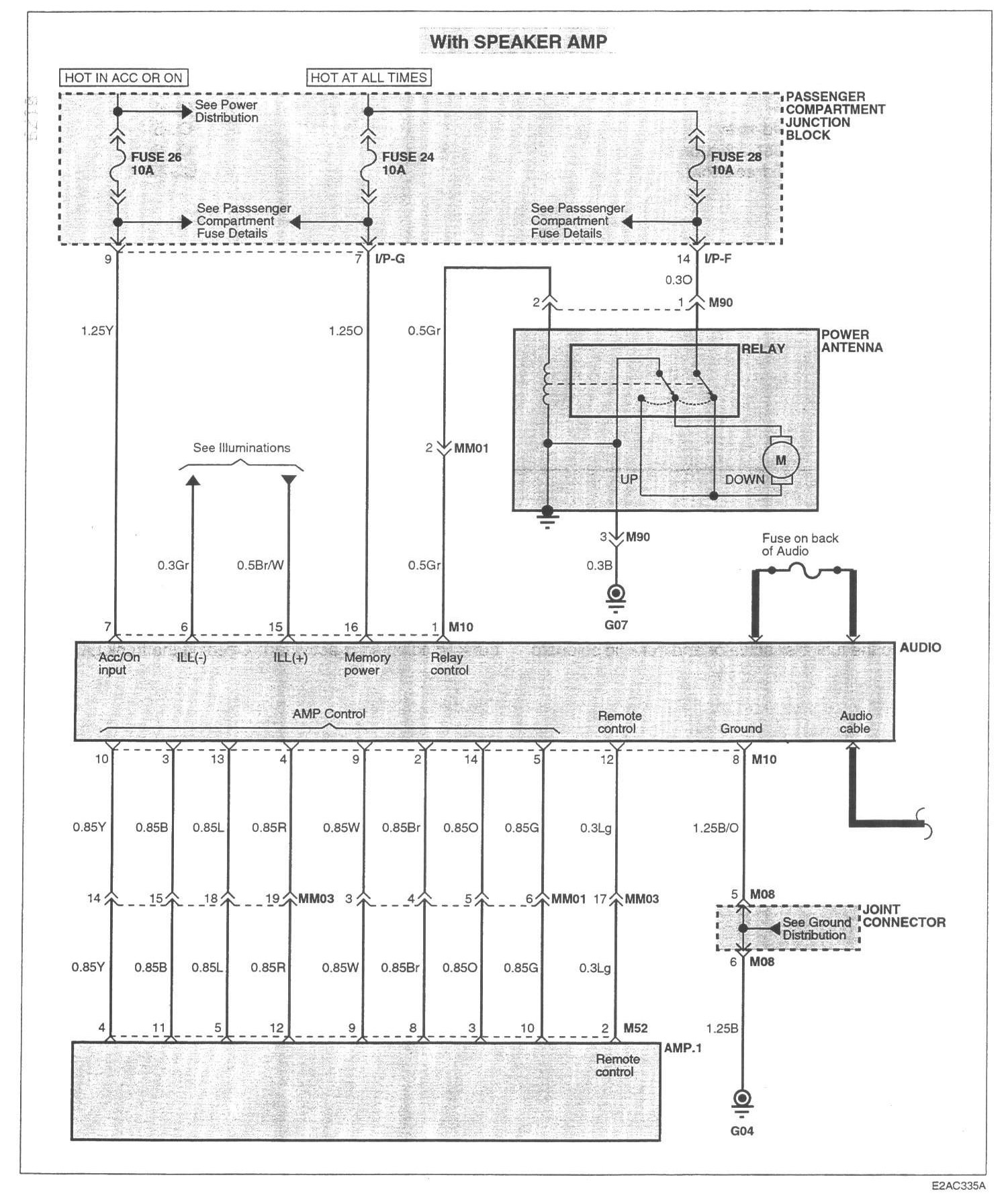

Image SD-164 Audio System (1):

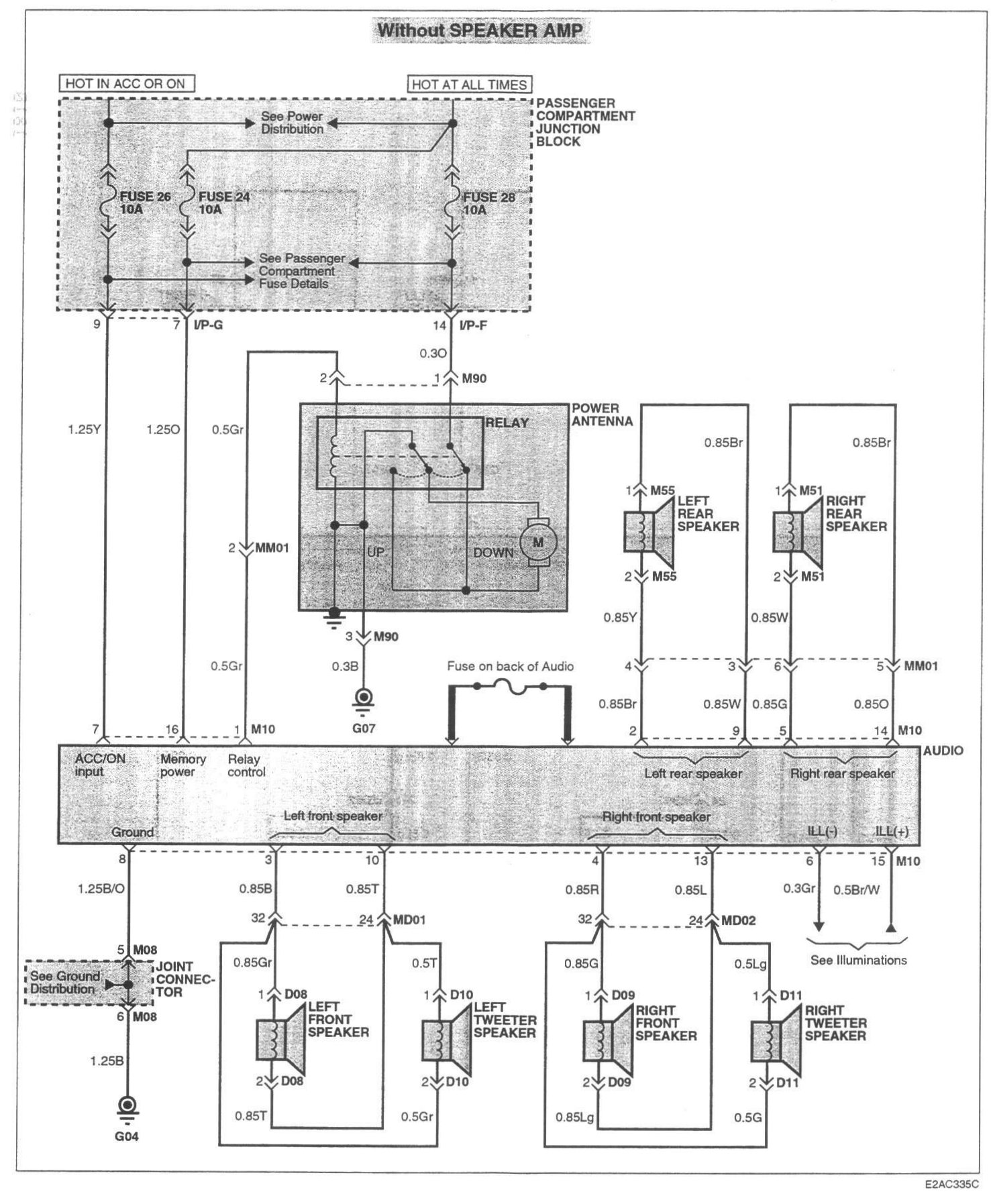

Image SD-165 Audio System (2):

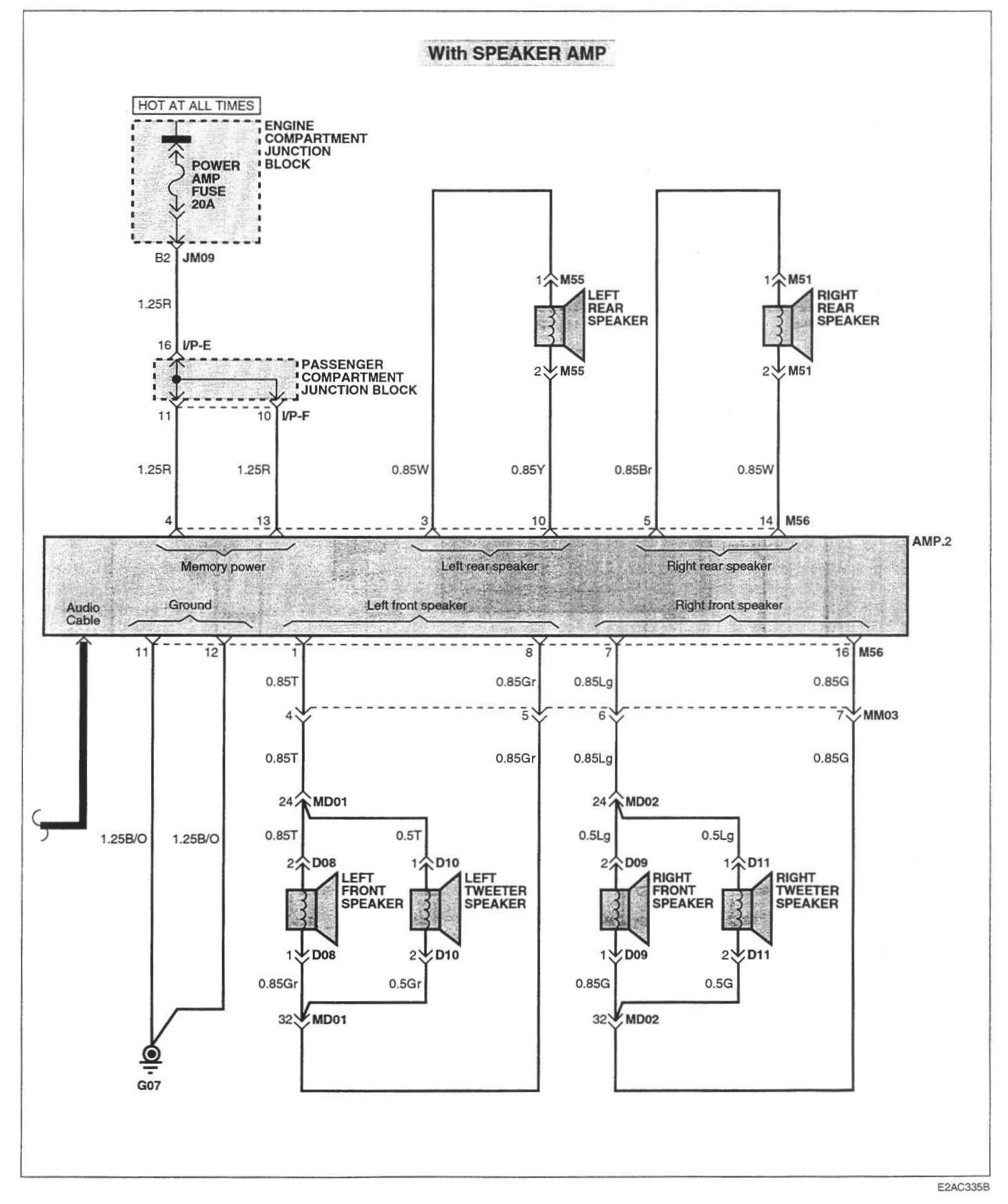

Image SD-166 Audio System (3):
