Steering Control Module

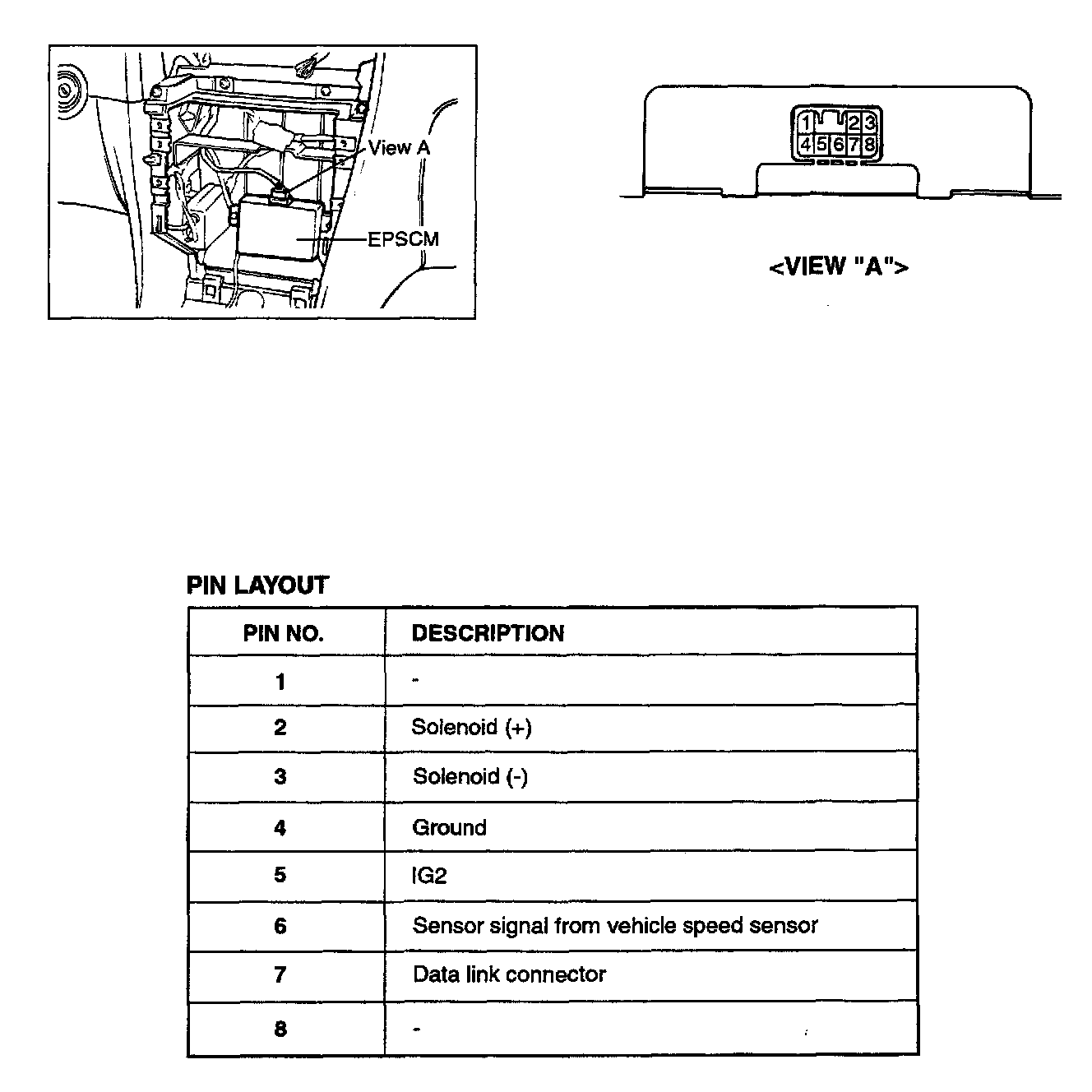

ELECTRONIC POWER MODULE
The EPSCM is installed underneath the audio inside the center facia.
