Turn Signal Lamp
Turn Signal Lamp

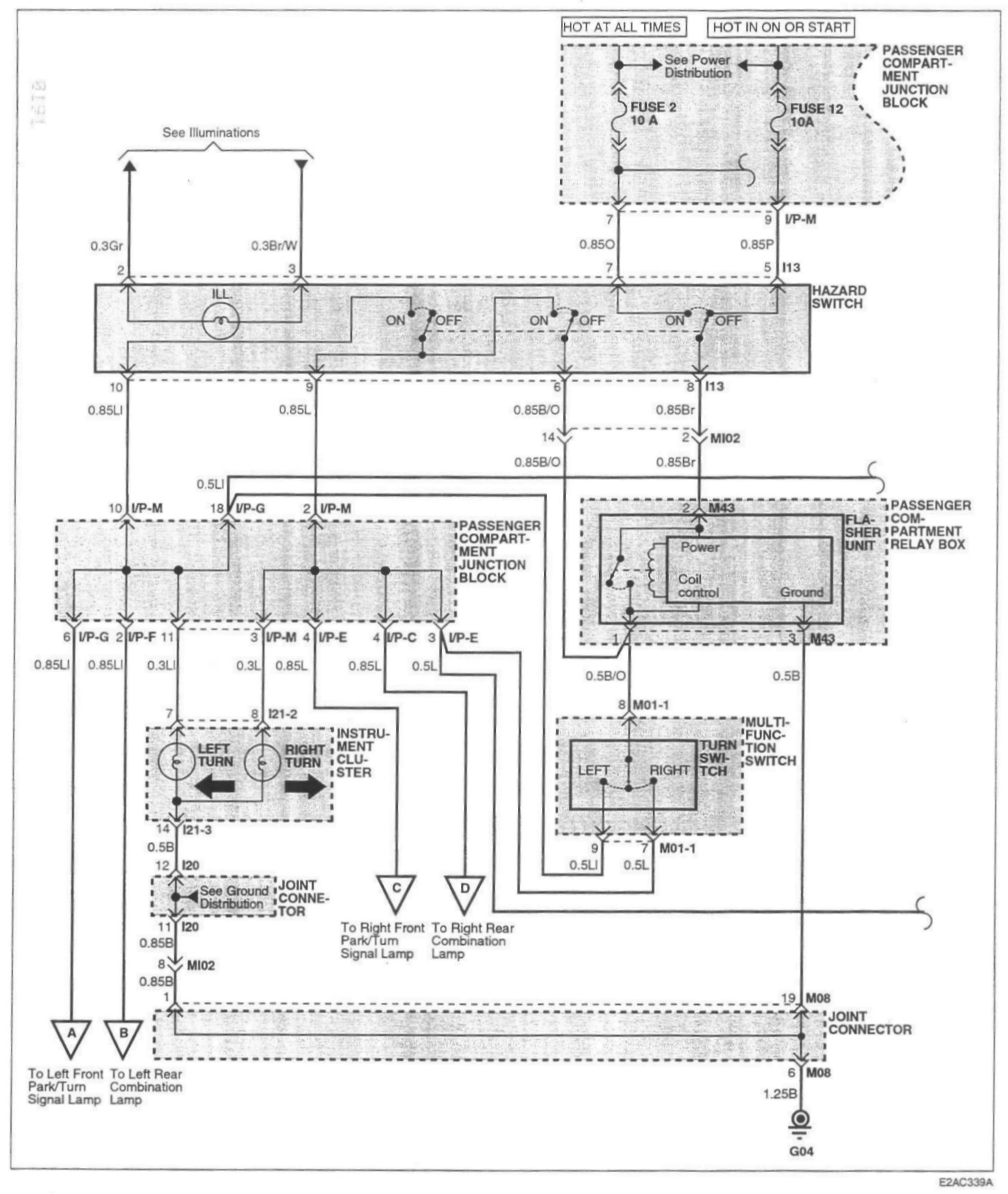

Image SD-176 Turn And Hazard Lamps (1):

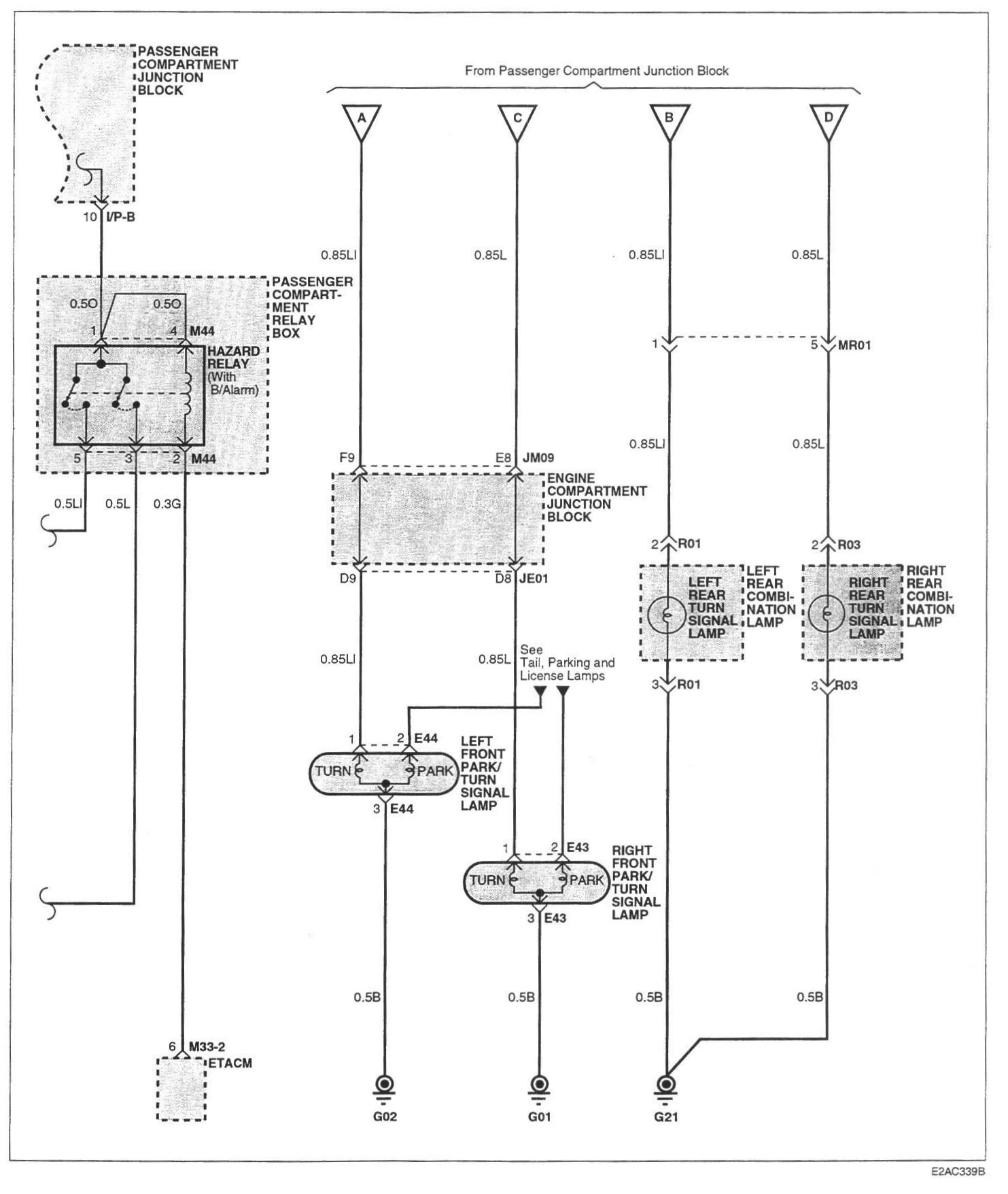

Image SD-177 Turn And Hazard Lamps (2):
