Fuel Return Line
Fuel Return Line

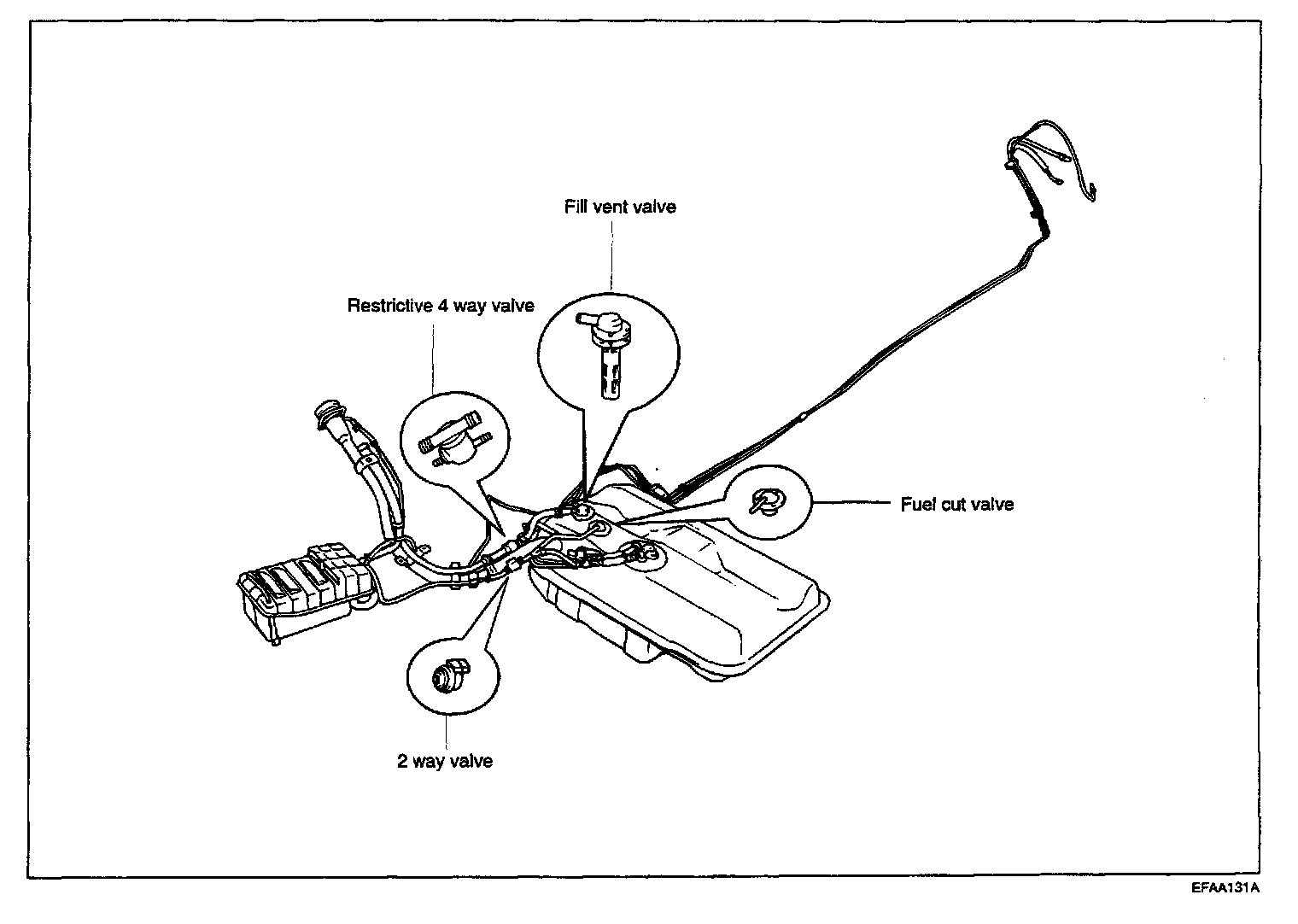

Fuel Line And Vapor Line Components:

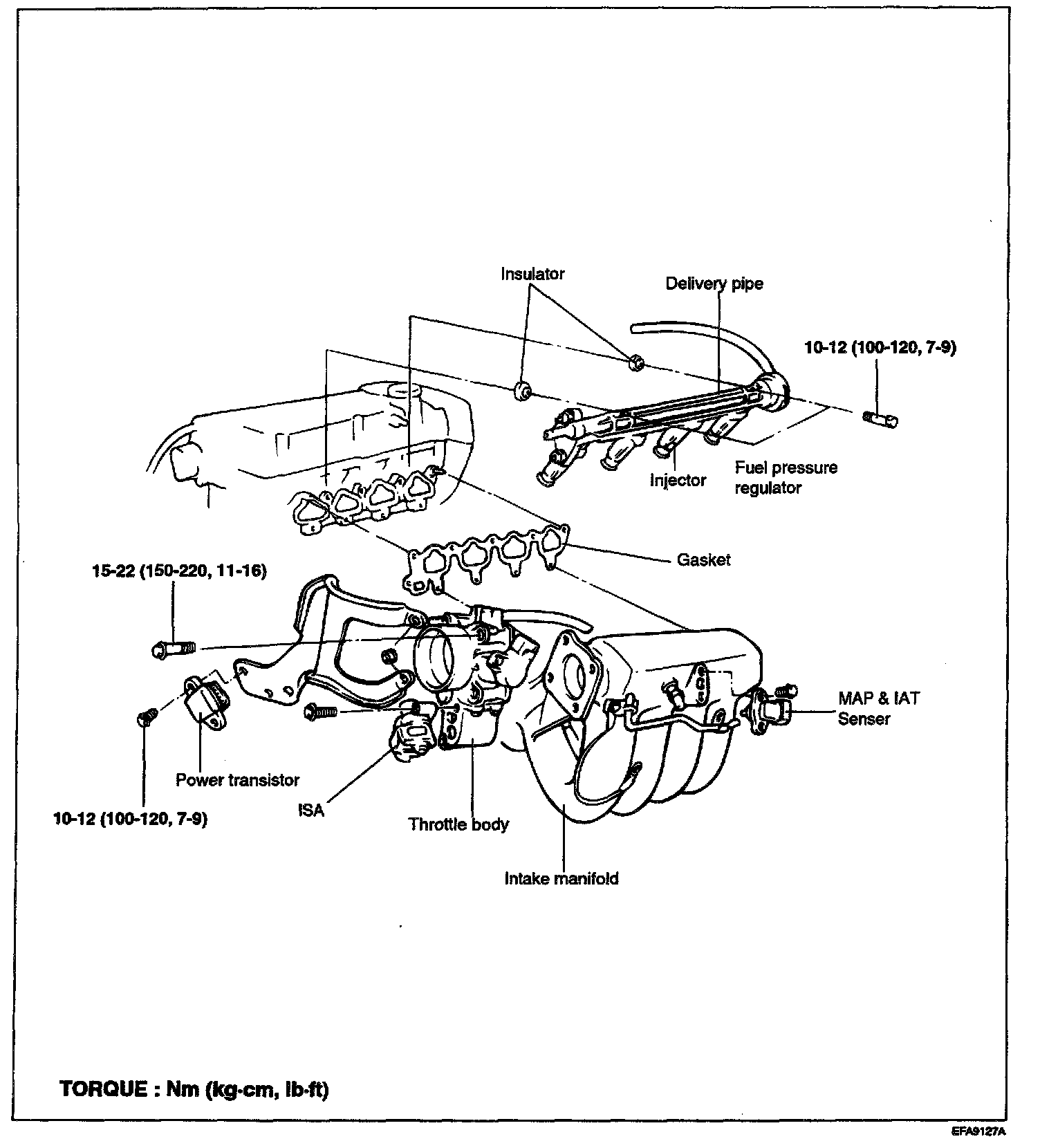

Fuel Line Part 1:

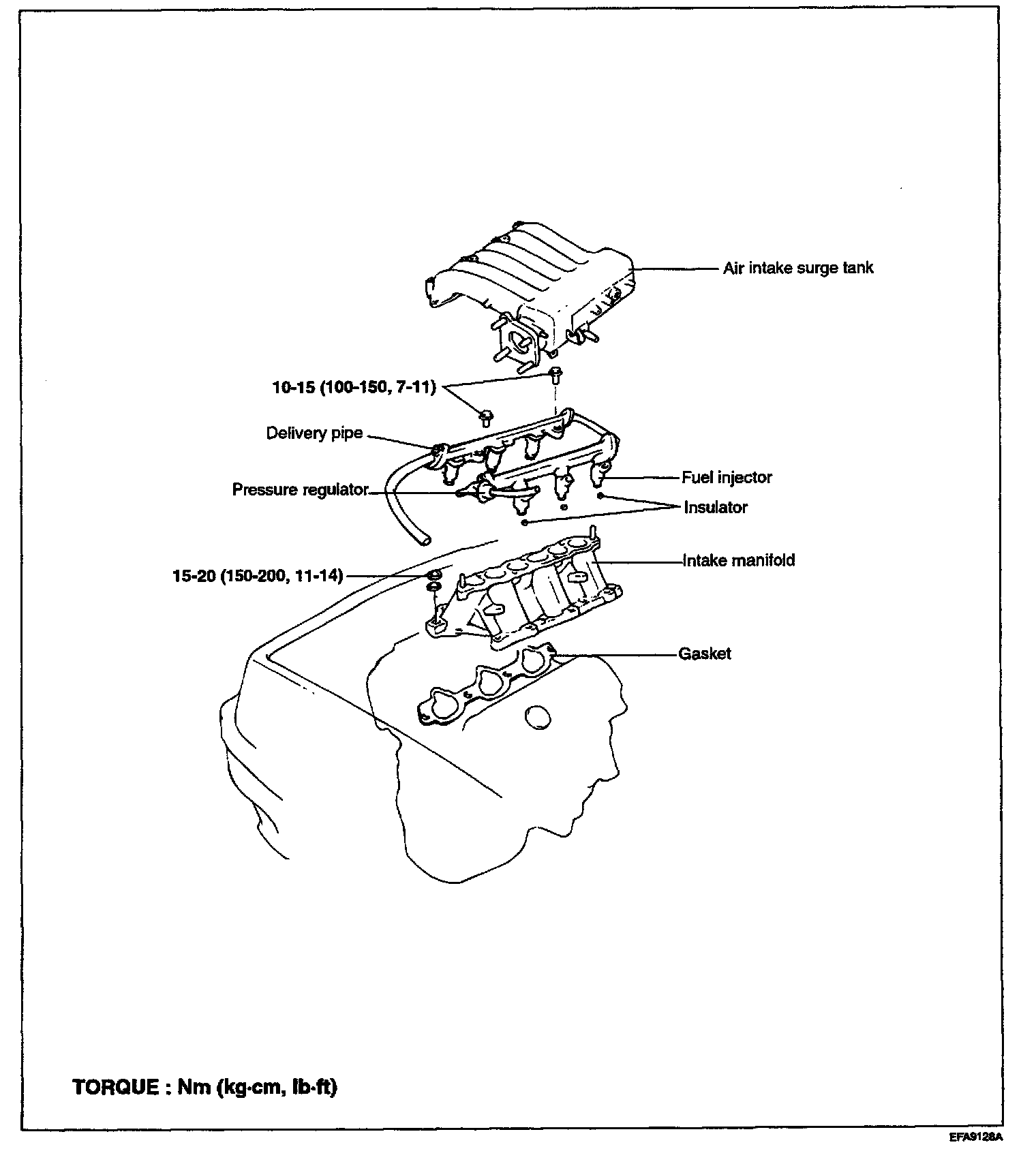

Fuel Line Part 2:
