Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
>>
Control Harness
Control Harness

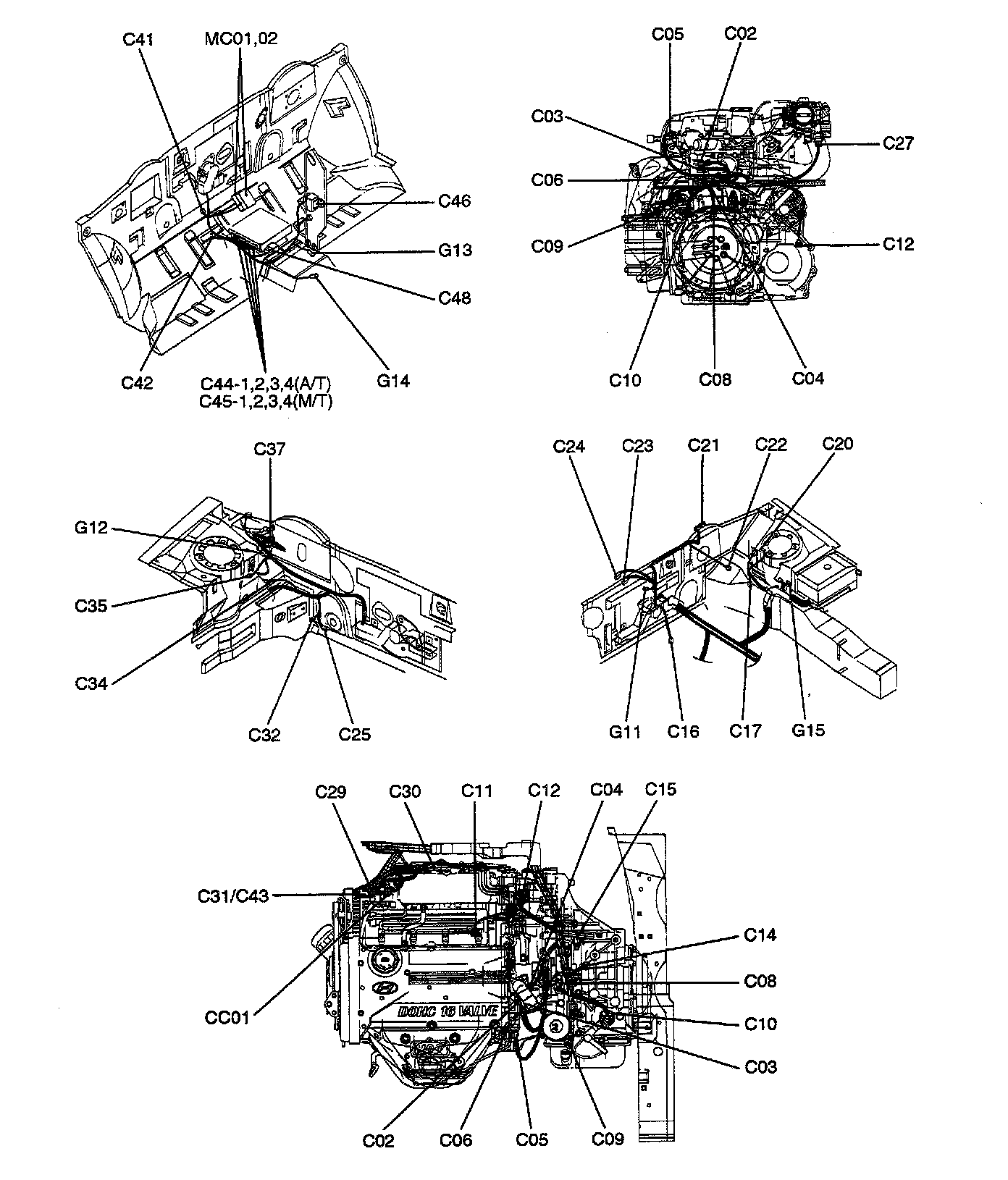

Control Harness (DOHC) - View:
Control Harness (DOHC) - Index:

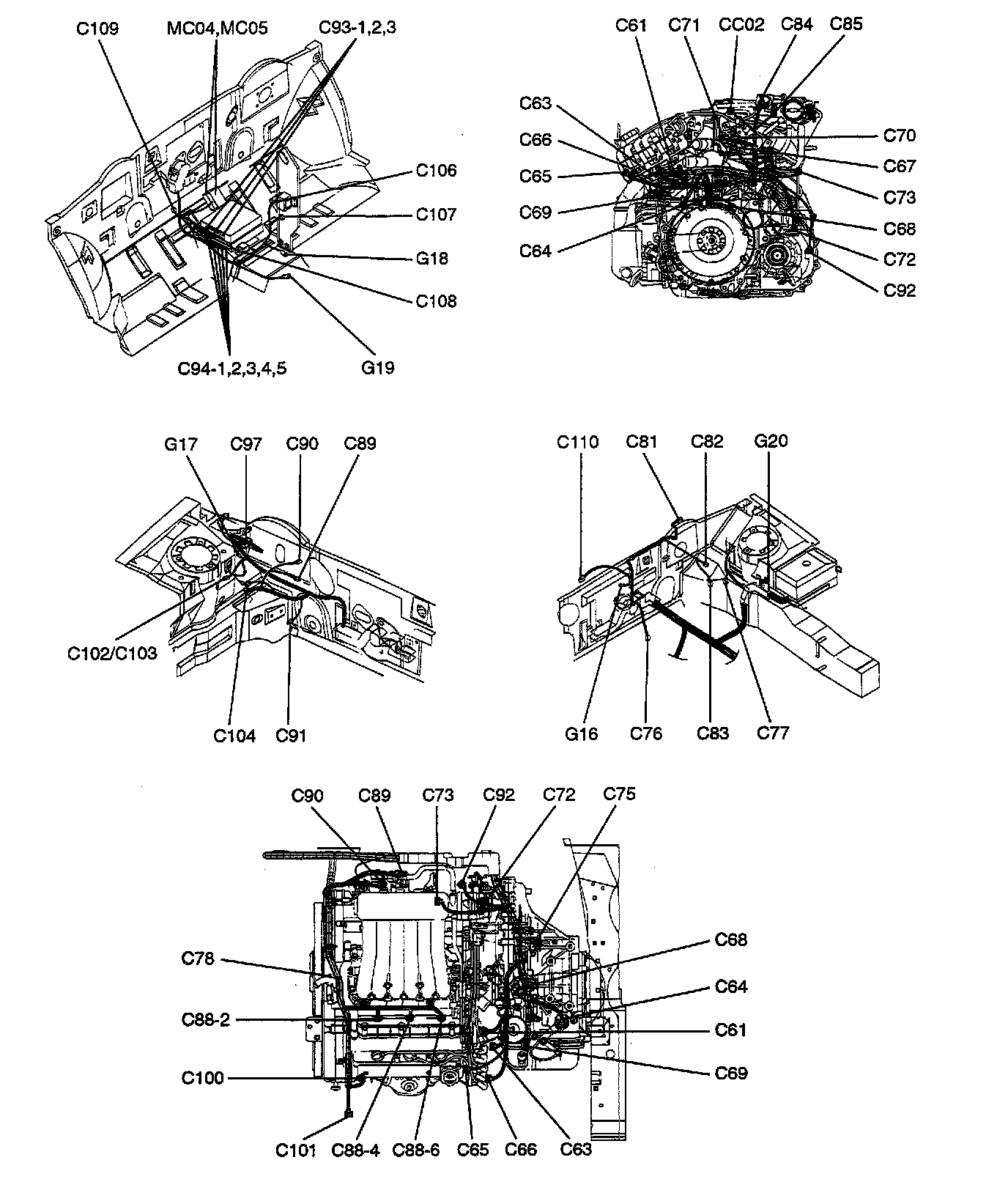

Control Harness (V6) - View:

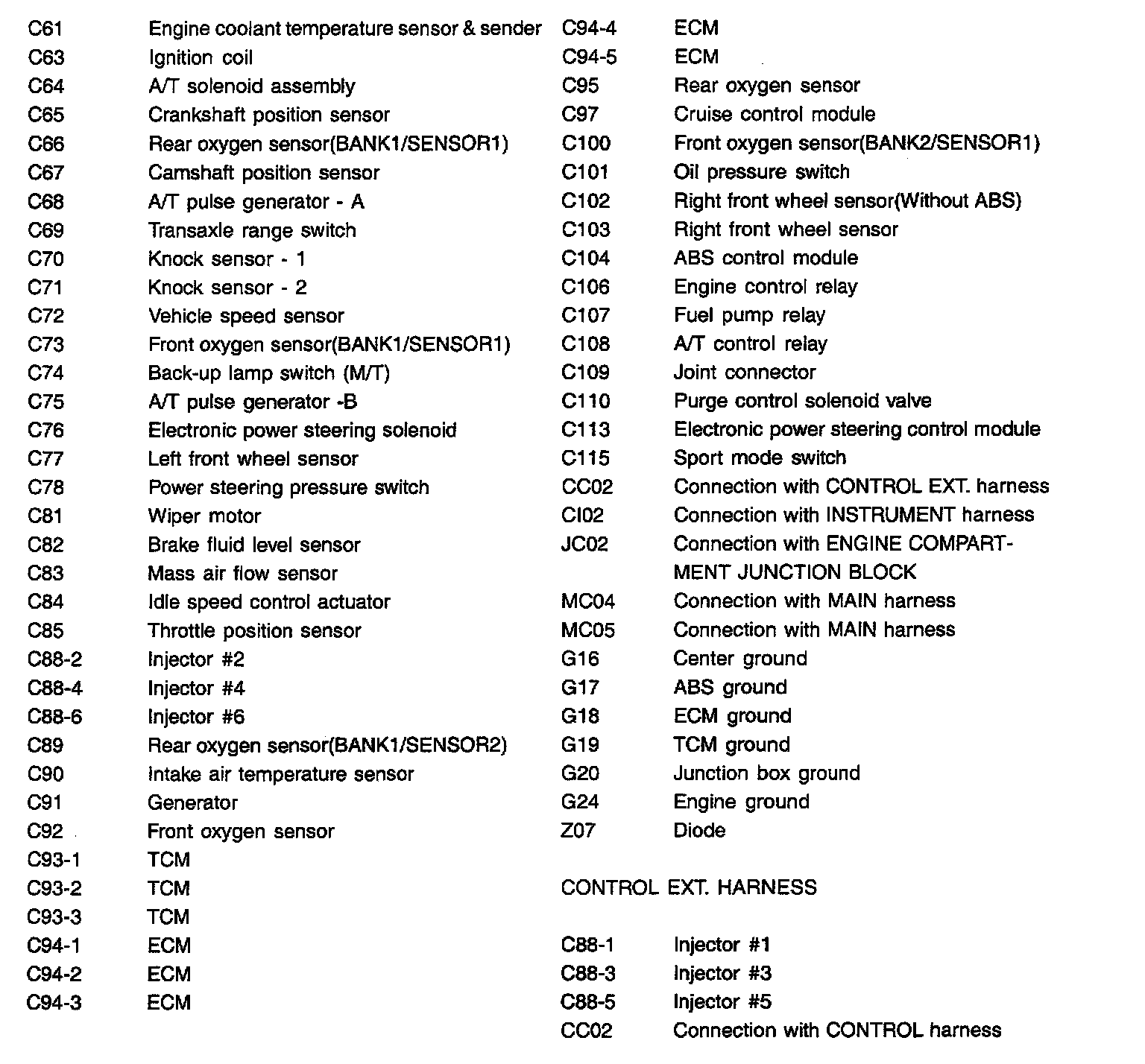

Control Harness (V6) - Index:
