Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Backup Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

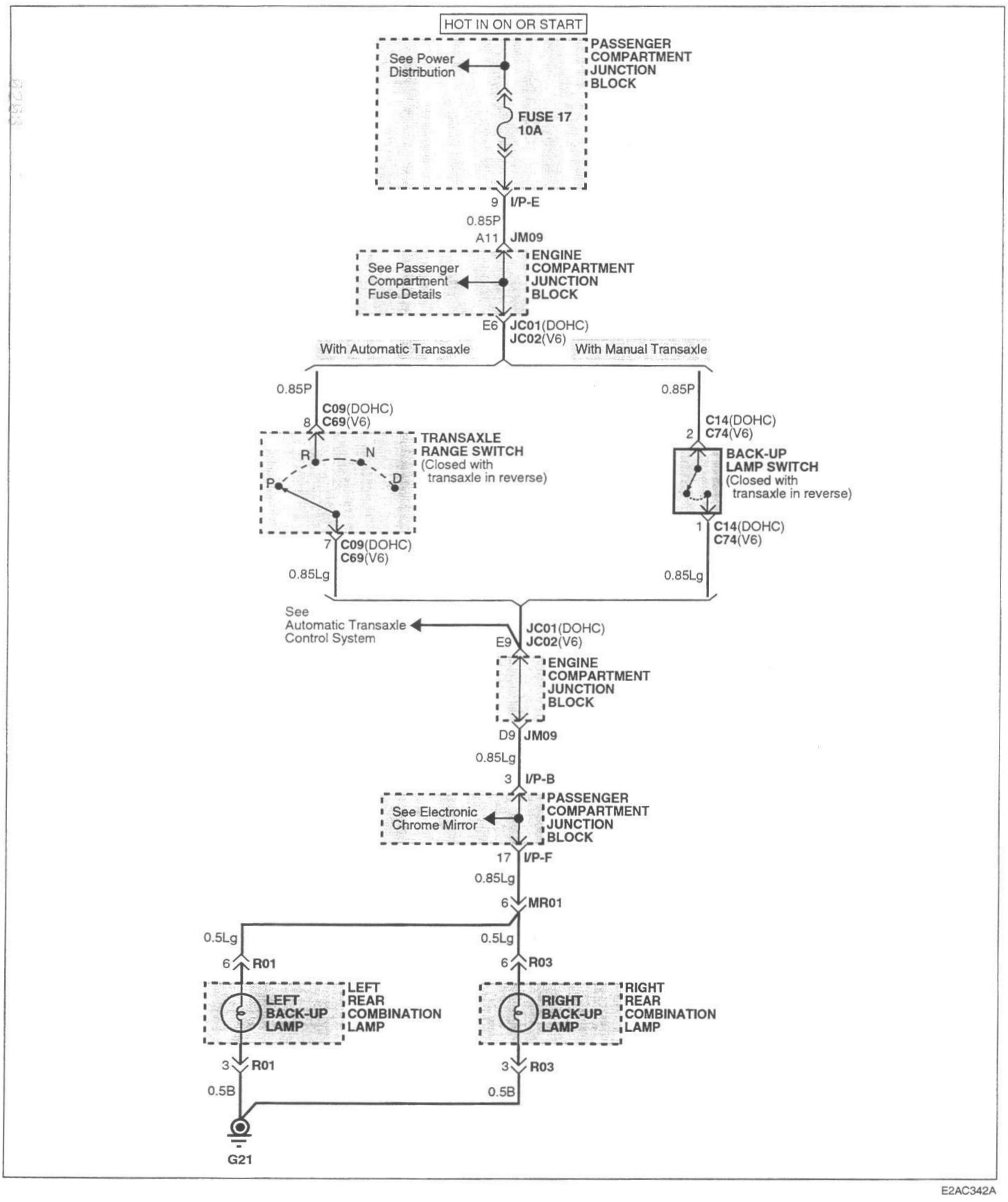

Image SD-188 Back-up Lamps (1):
