Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Fog/Driving Lamp
>>
Fog/Driving Lamp Relay
>>
Locations
>>
Component Locations
Component Locations

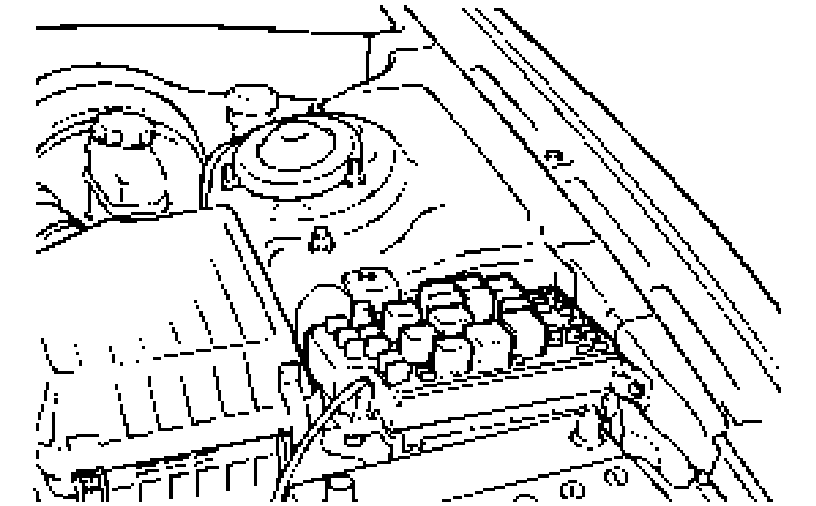

Engine Compartment Fuse/Relay Box:

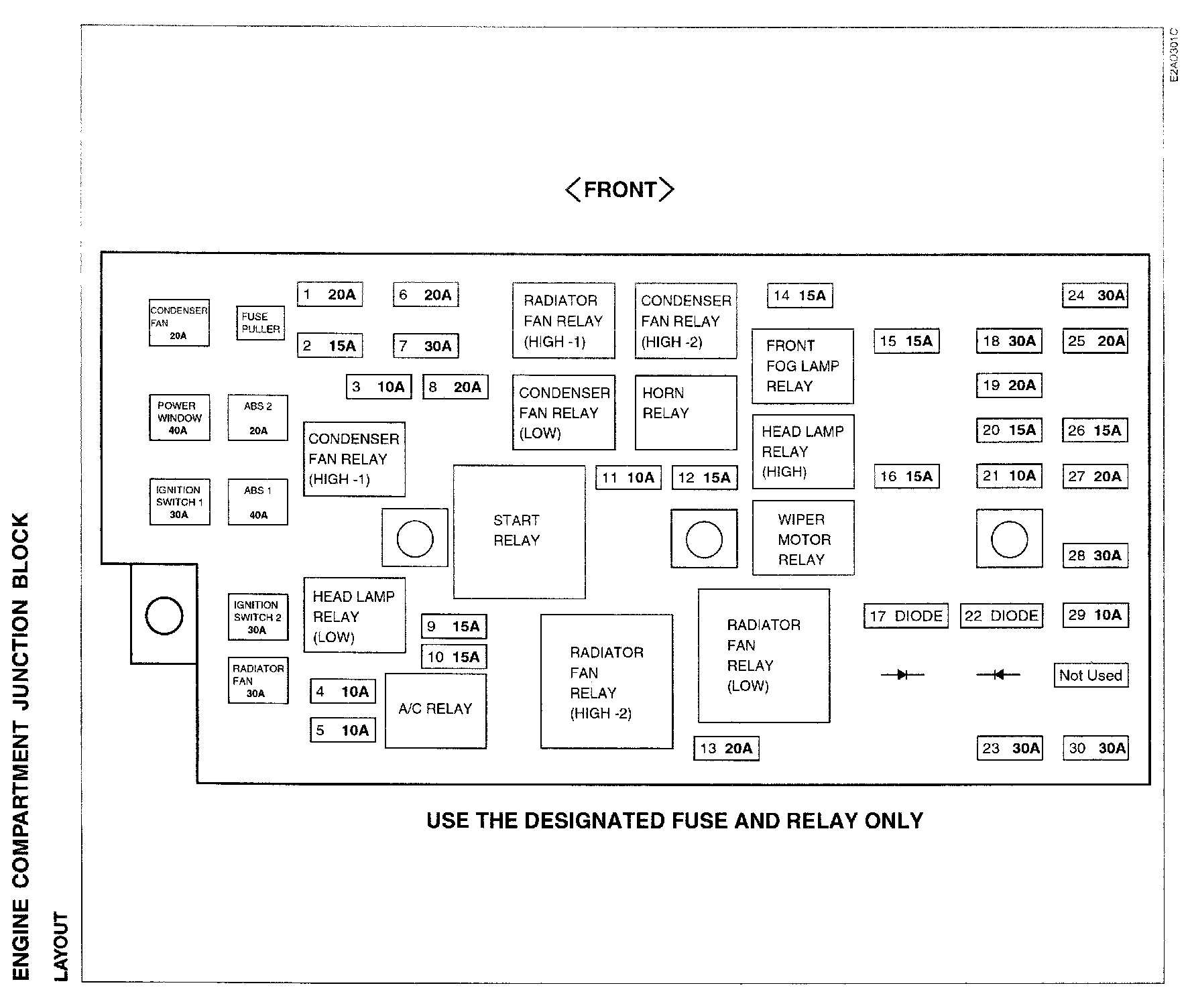

Engine Compartment Junction Block Layout:
