Sonata LX V6-2.7L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

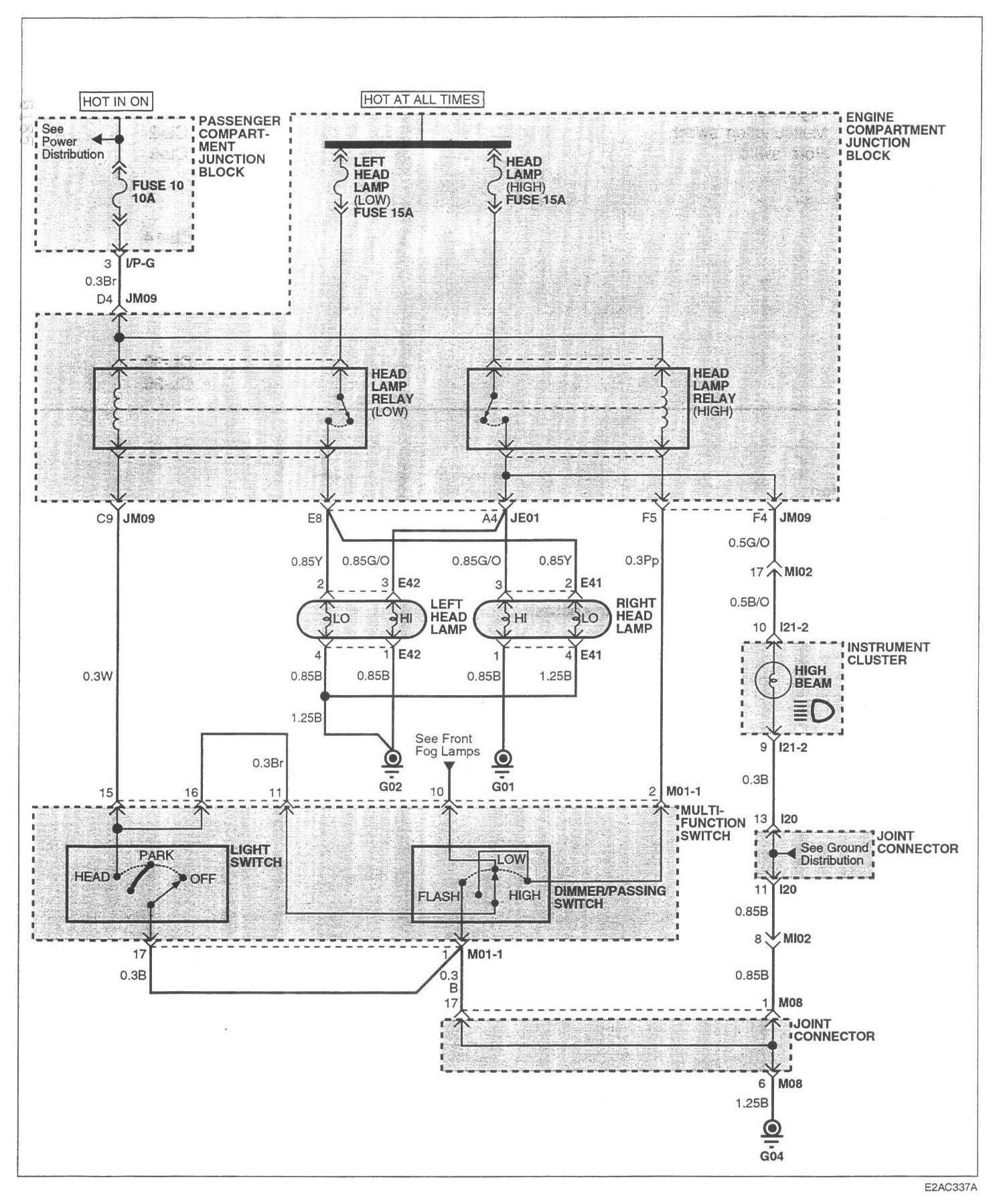

Image SD-170 Head Lamps (1):
