Home >> Hyundai >> 2002 >> Sonata LX V6-2.7L >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Door Switch >> Locations

Door Switch: Locations

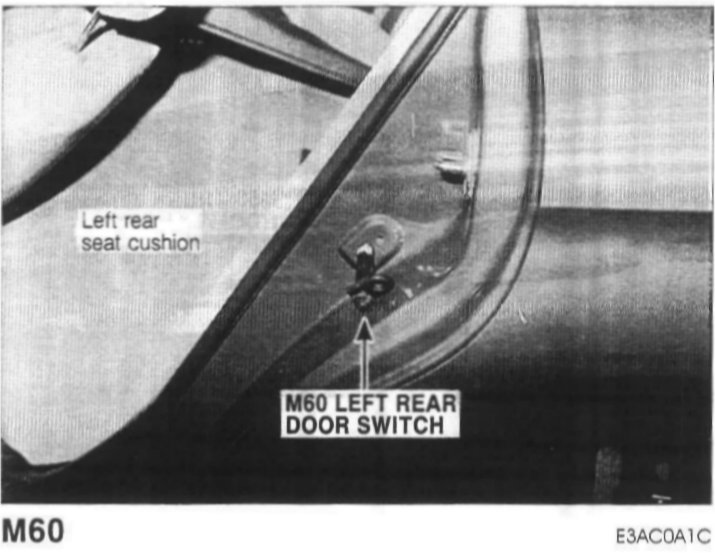

M60 Left Rear Door Switch:

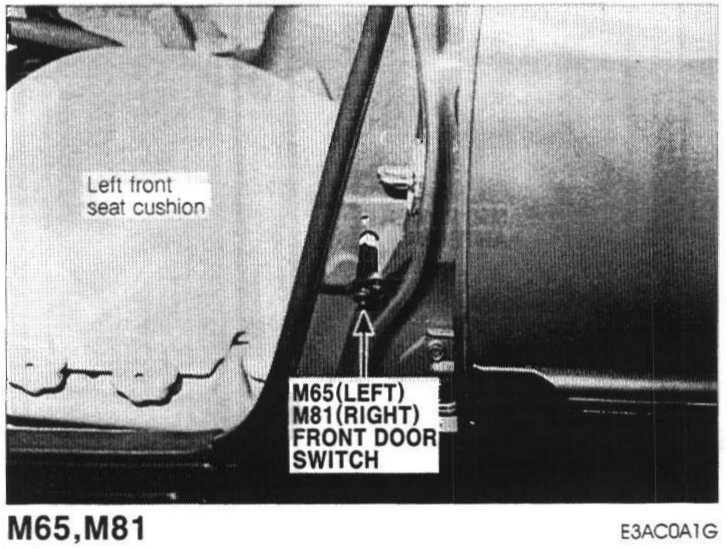

M65 Left Front Door Switch, M81 Right Front Door Switch:

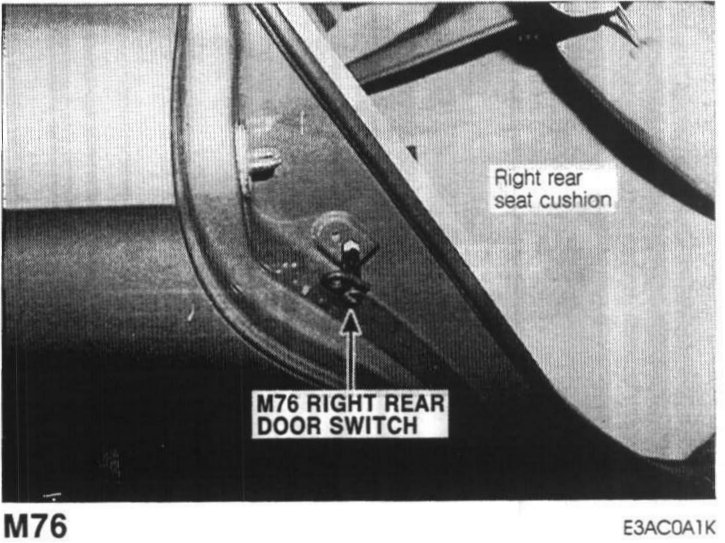

M76 Right Rear Door Switch:
