Home >> Hyundai >> 2002 >> Sonata LX V6-2.7L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Evaporative Emissions System >> Diagrams

Evaporative Emissions System: Diagrams

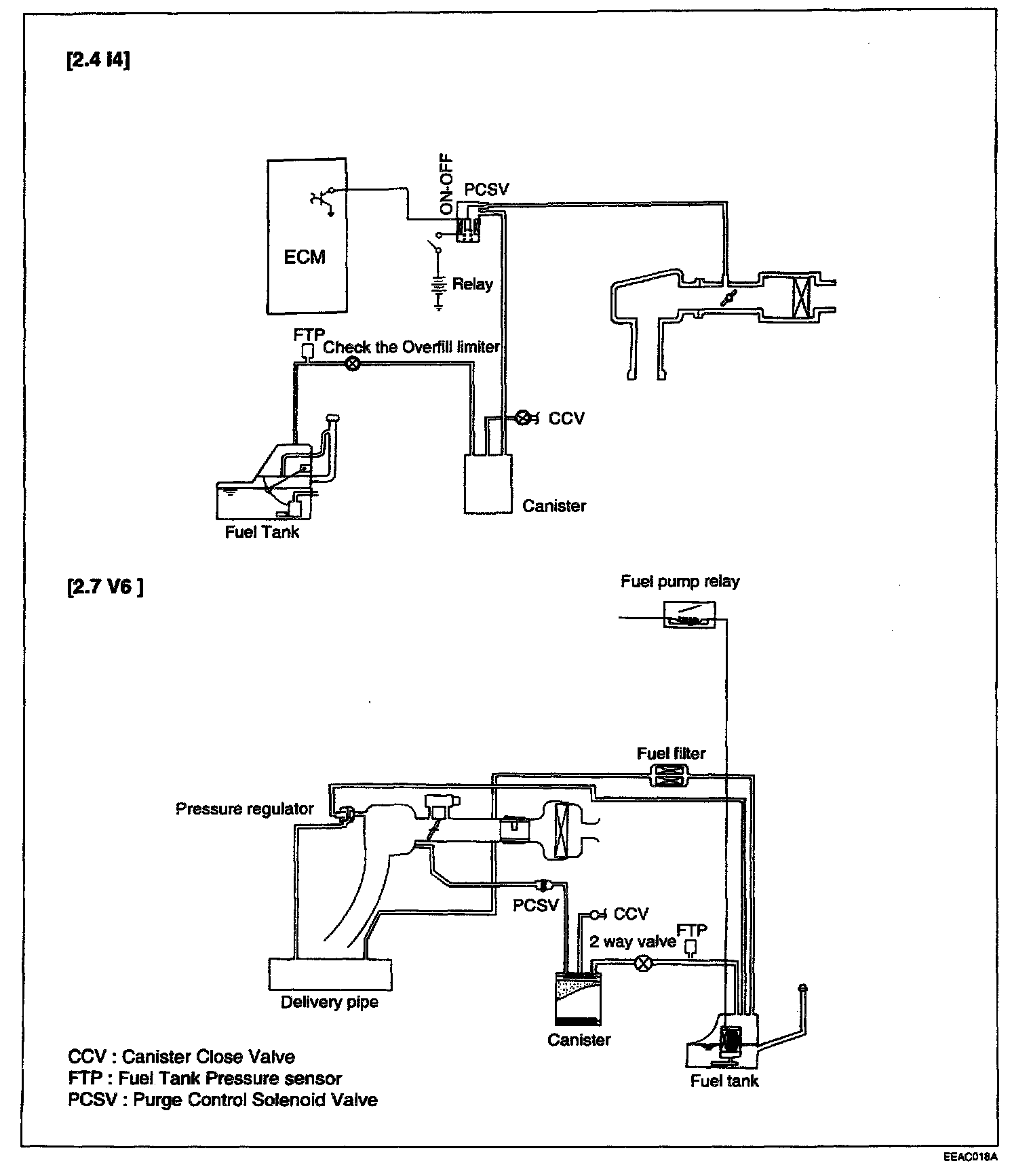

Evaporative Emission Control System:
