Component Locations

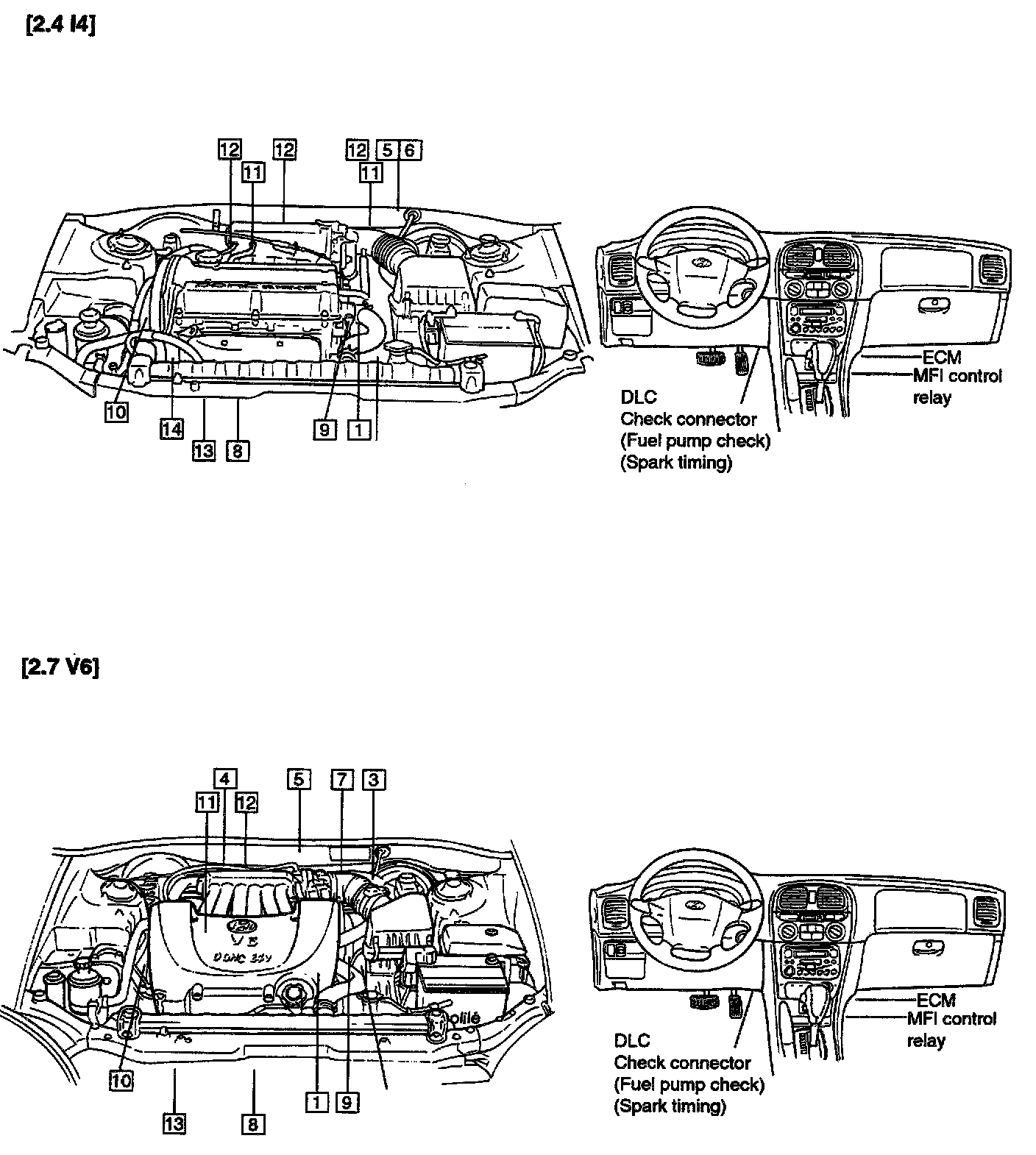

Location Of MFI Components Part 1:

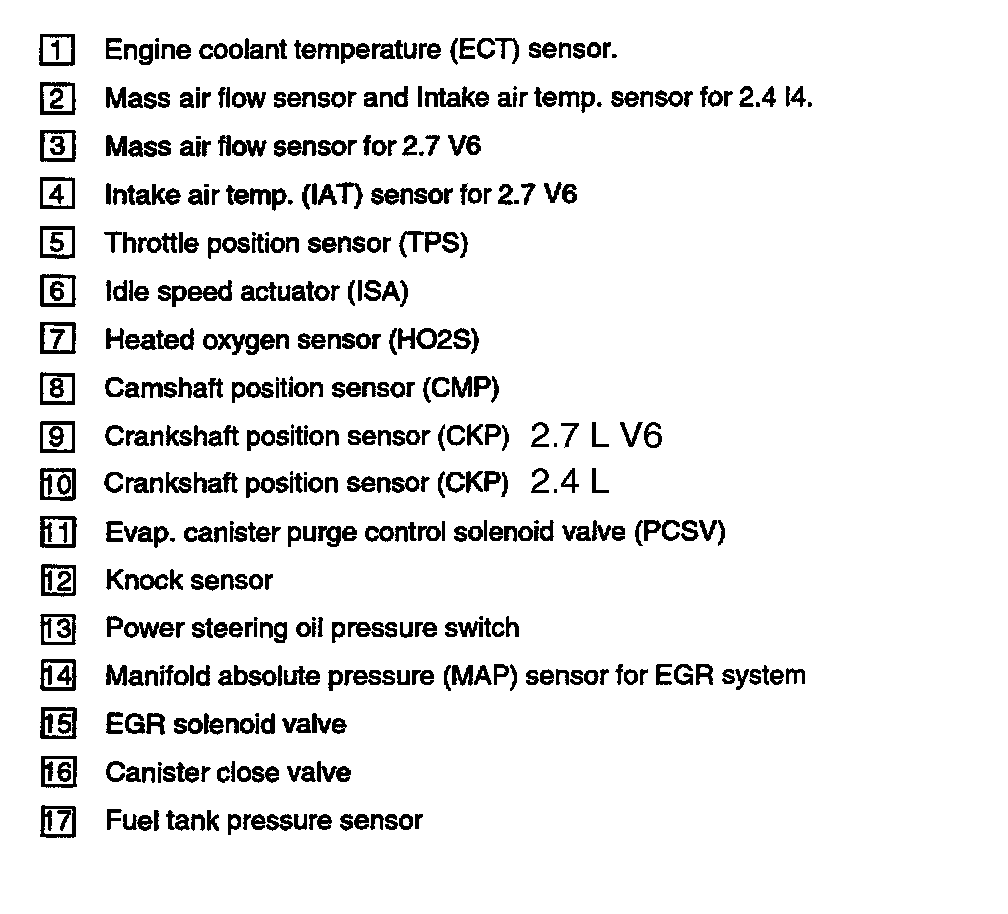

Location Of MFI Components Part 2:

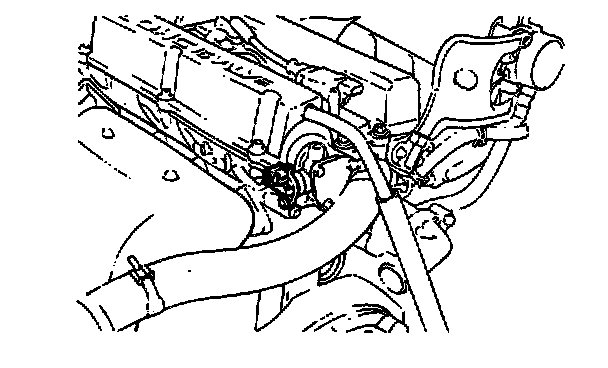

CMP Sensor:
