Service Manual Correction - DTC P0125 Diagnosis

Group
36 - ENGINE
ELECTRICAL

Number
02-36-016-1

Date
08-2002

Model
2002 and XG 350 2002

Subject
2002 SONATA AND 2002 XG350 SHOP MANUAL CORRECTION FOR DIAGNOSTIC TROUBLE CODE P0125 DIAGNOSIS

This TSB supersedes TSB # 02-36-016 to correct a typographical error.

DESCRIPTION:

The 2002 Sonata Shop Manual provides incorrect diagnostic troubleshooting information for diagnostic trouble code P0125 (Insufficient Coolant Temperature for Feed-Back Control).

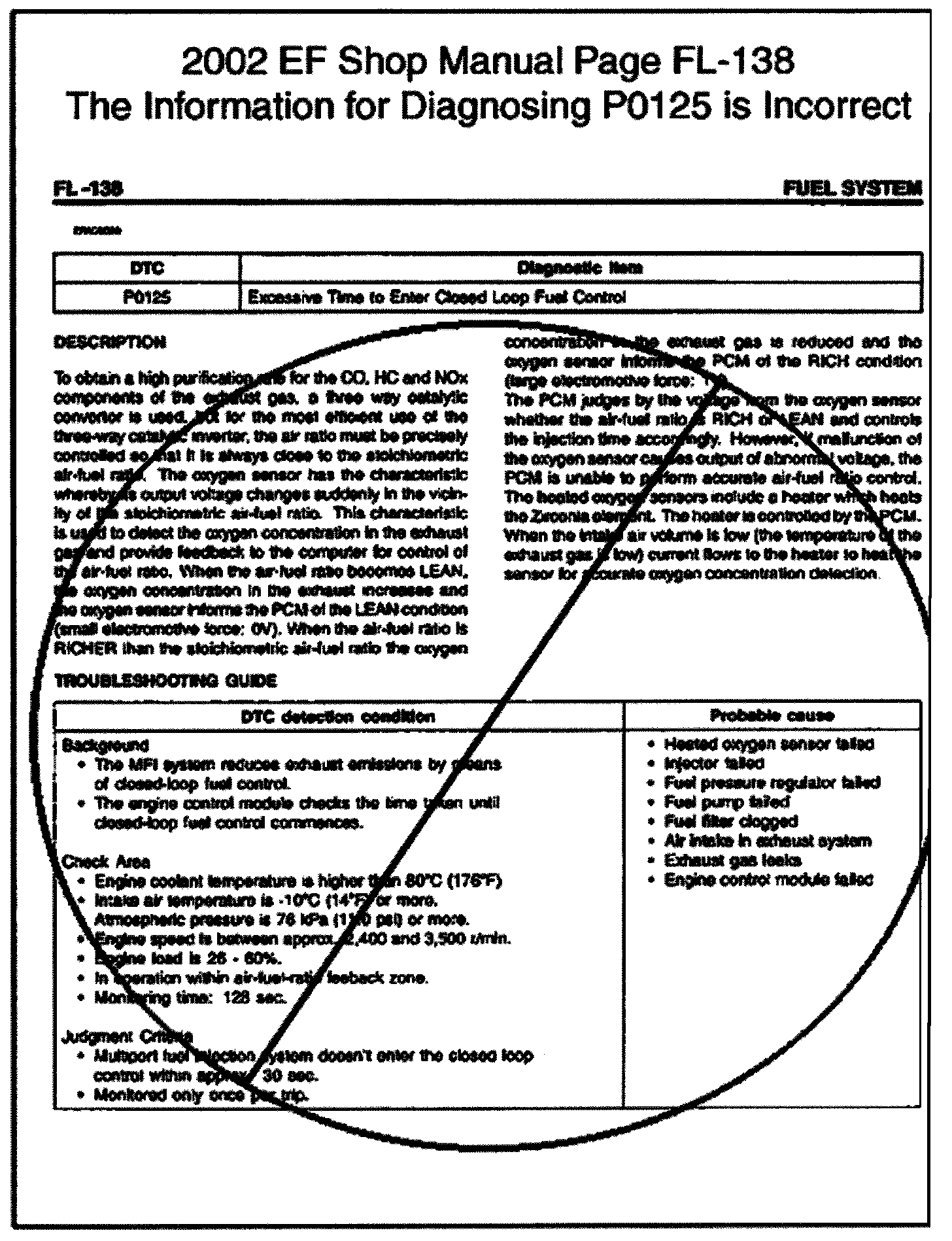

^ Page FL-138 describes this diagnostic and also has a troubleshooting guide. This information is incorrect or not related to code P0125. (The incorrect page is shown.)

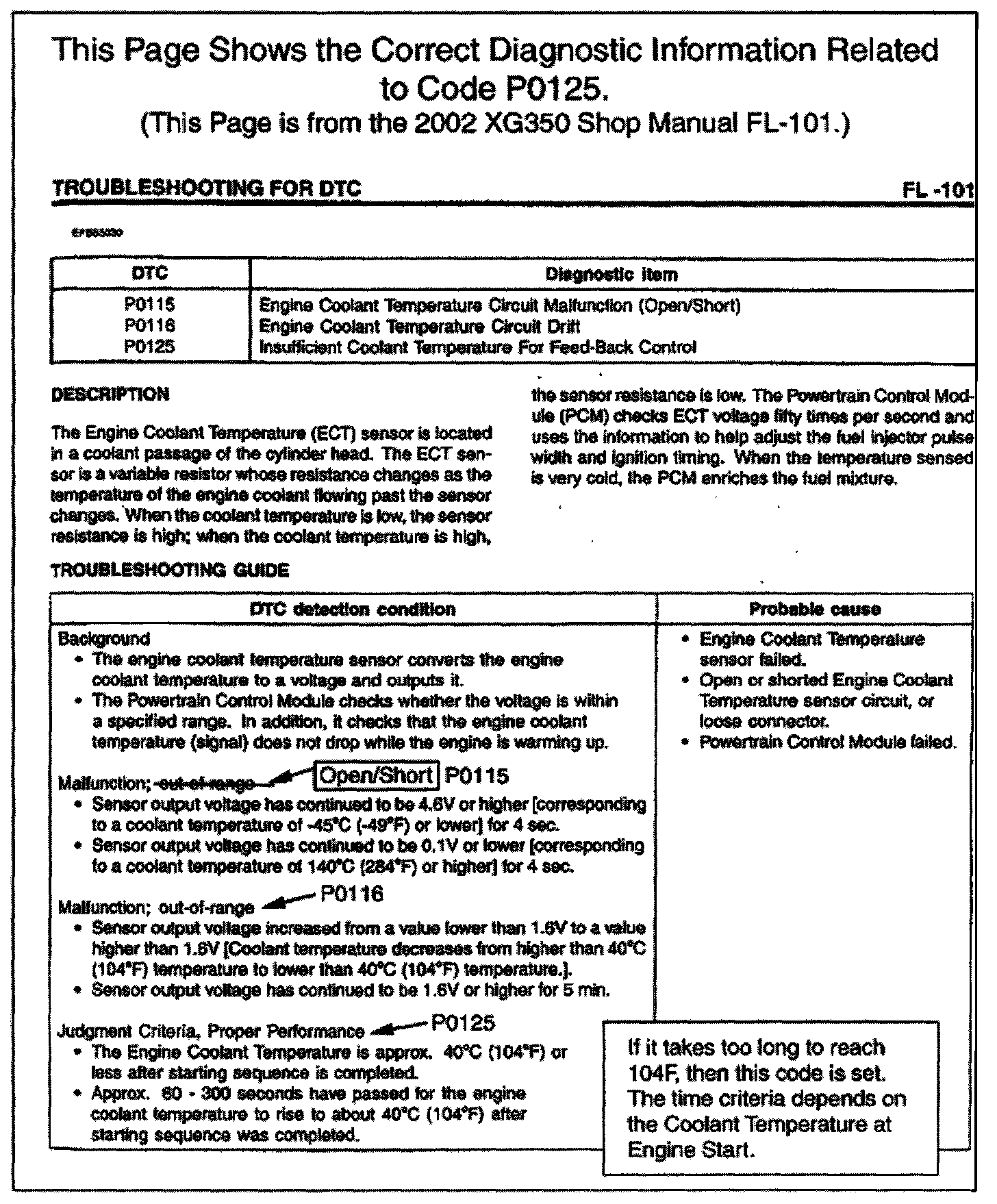

^ The 2002 XG350 shop manual provides the correct diagnostic information related to this code, except for some minor corrections. Shown is the correct page from the XG350 shop manual, including a few minor corrections and comments.

Please write this TSB number at the top of page FL-138 of the 2002 Sonata Shop Manual and at the top of page FL-101 of the 2002 XG350 Shop Manual for future reference.
