Engine Compartment Fuse/Relay Box

Engine Compartment Junction Block Layout:

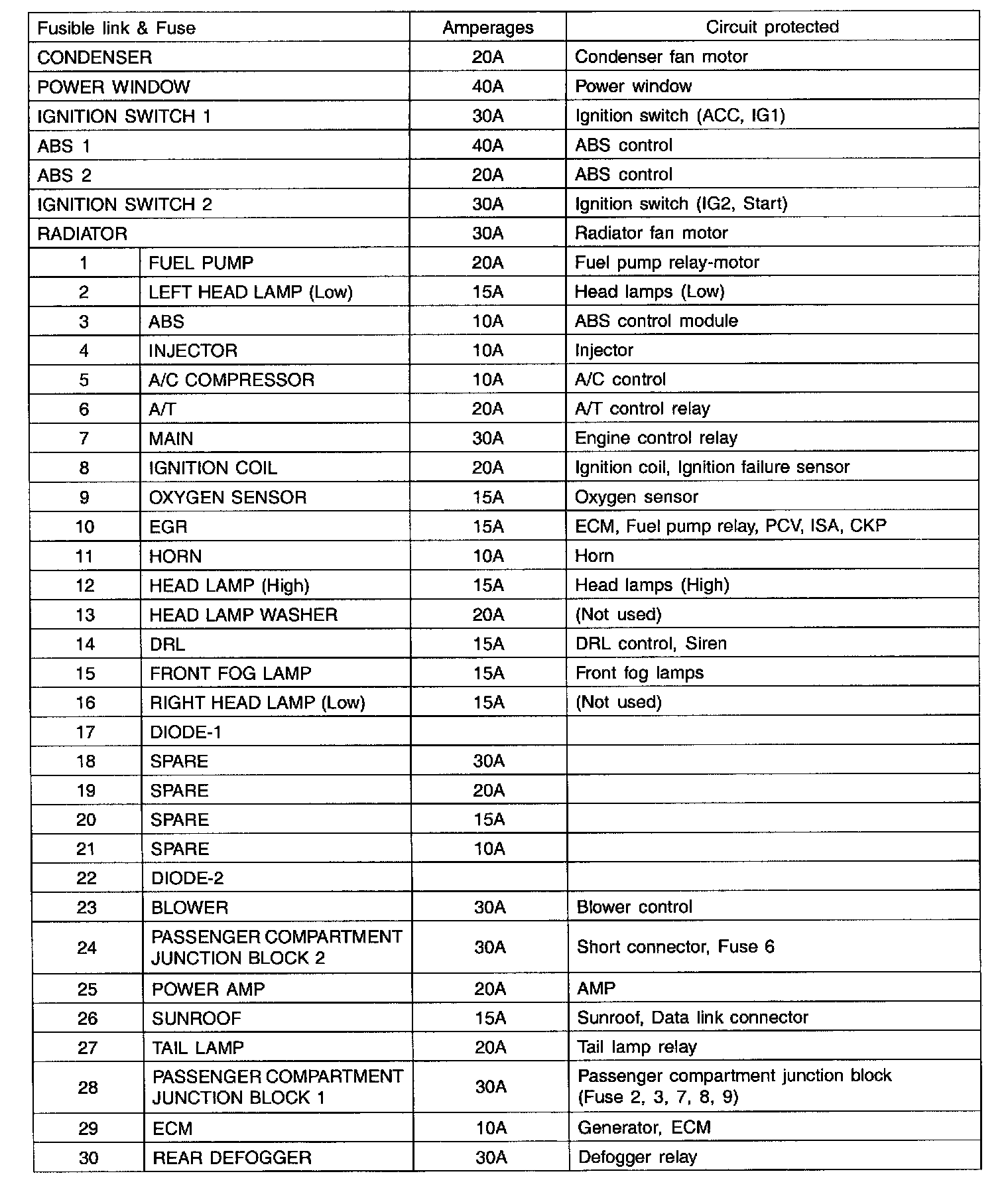

Engine Compartment Junction Block Circuit Details:
