Starter Relay: Testing and Inspection

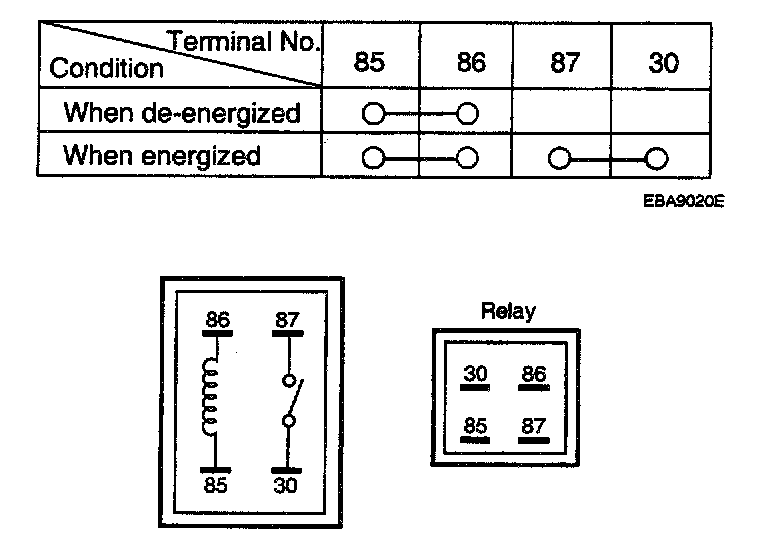

CHECK
STARTER RELAY
Remove the starter relay and check continuity between the terminals. If the continuity is not as specified, replace the relay.
