Disassembly and Reassembly

REASSEMBLY OF THE STOP RING AND SNAP RING
Using a suitable pulling tool, pull overrunning clutch stop ring over snap ring.

DISASSEMBLY

REMOVAL OF SNAP RING AND STOP RING

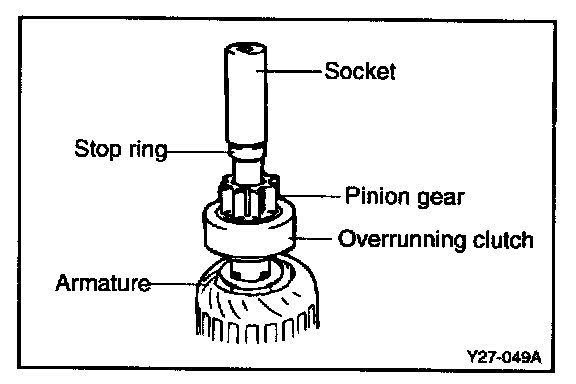

1. Press the stop ring to the snap ring side using a socket wrench, to the snap ring side.

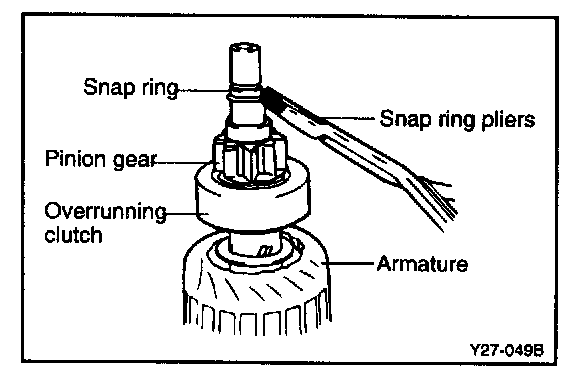

2. After removing the snap ring (using snap-ring pliers), remove the stop ring and the overrunning clutch.
