Windows and Glass
>>
Heated Glass Element
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

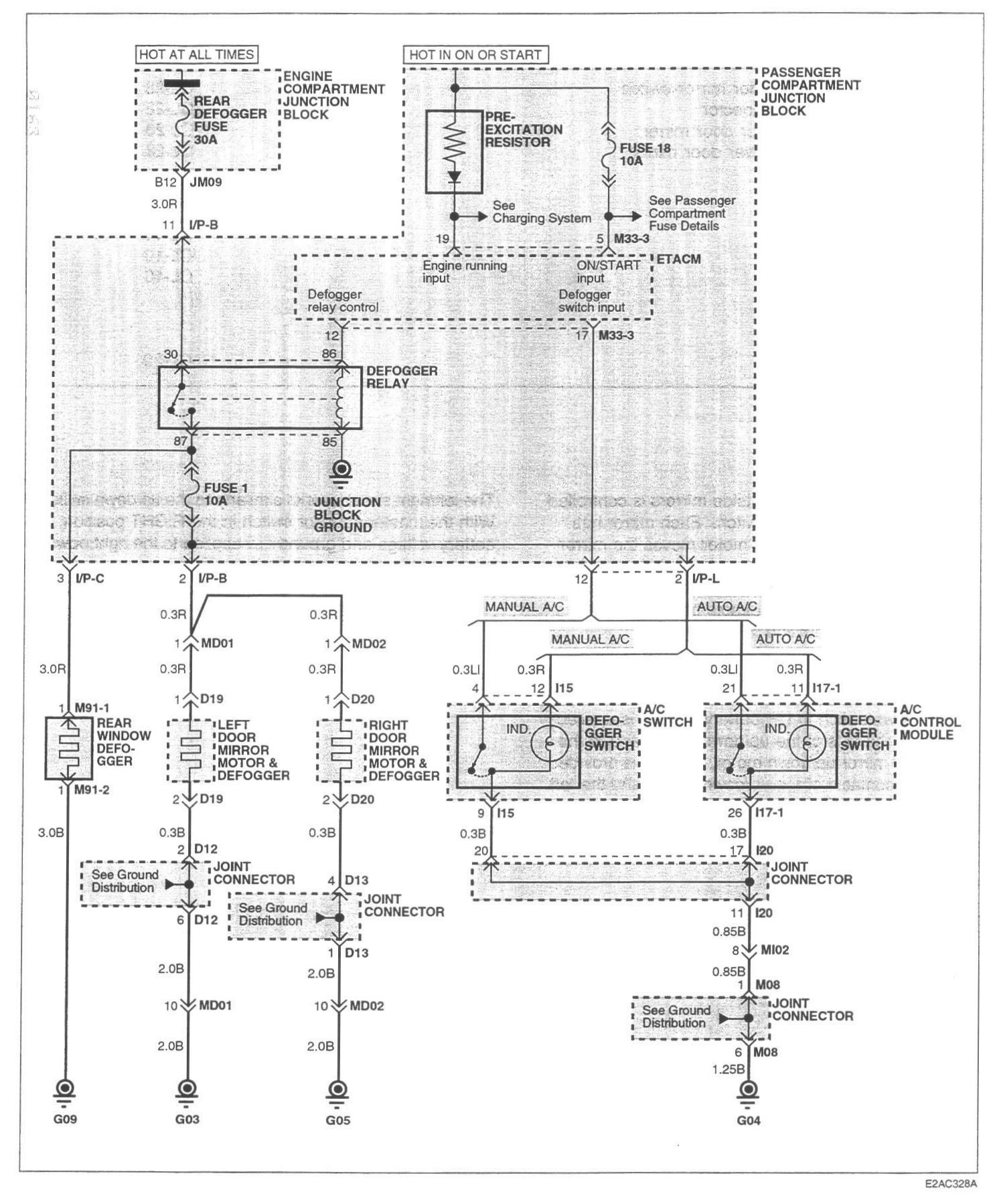

Image SD-148 Rear Window And Outside Mirror Defogger (1):
