Component Tests

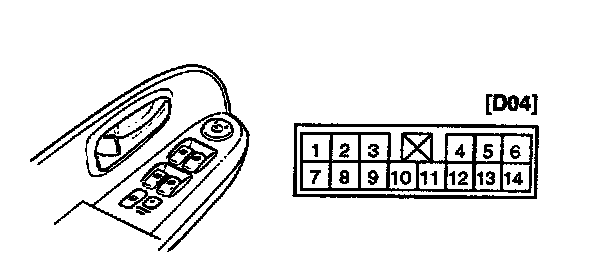

1. Remove the switch from the door trim panel.

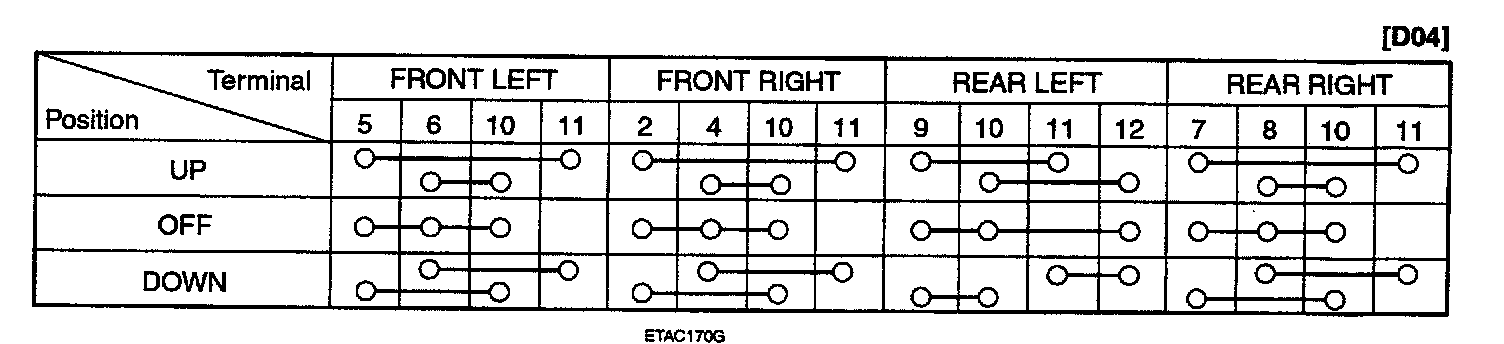

2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.
