Transmission

DIAGNOSTIC TROUBLE CODE DESCRIPTIONS

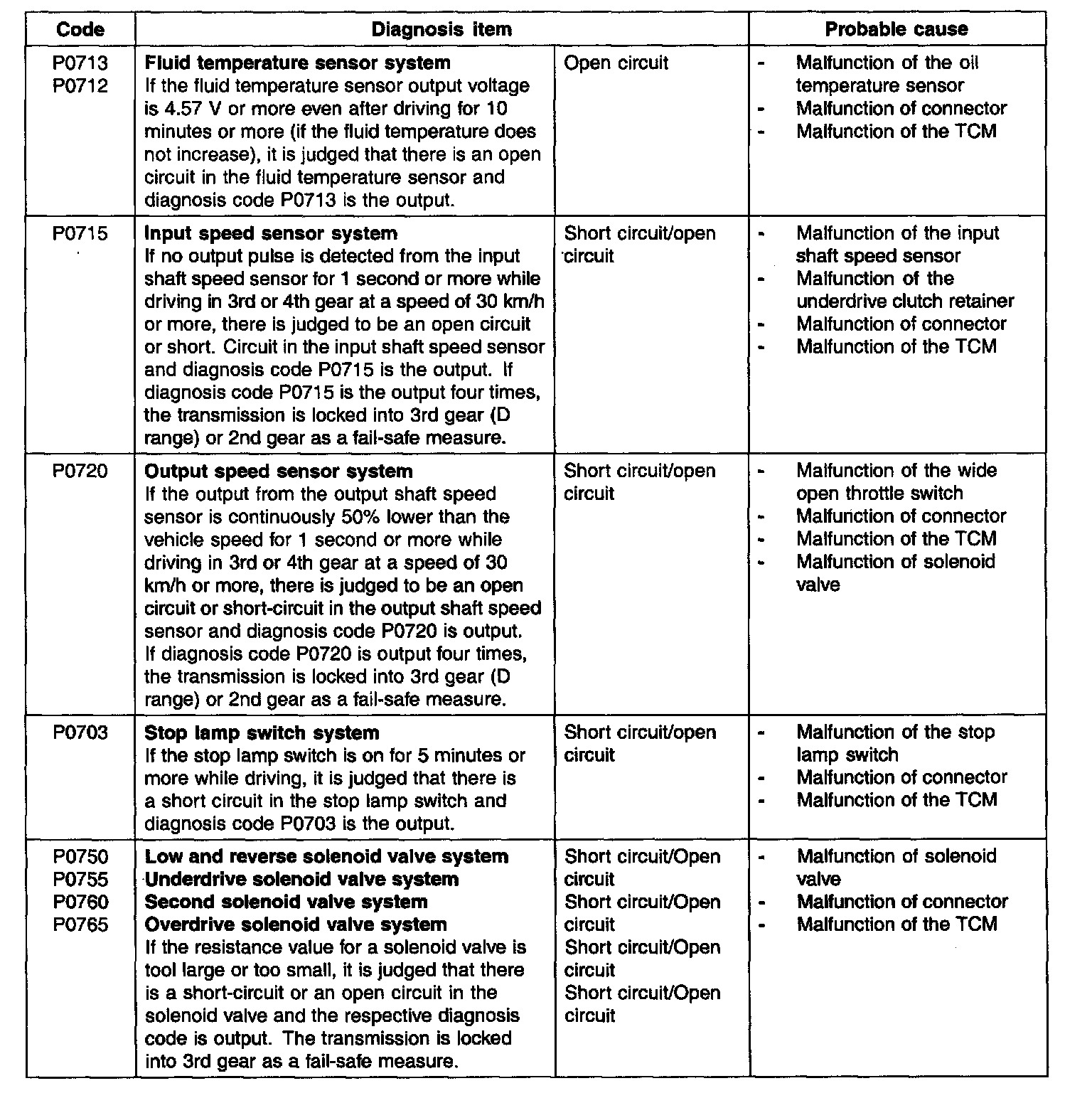

1 of 4

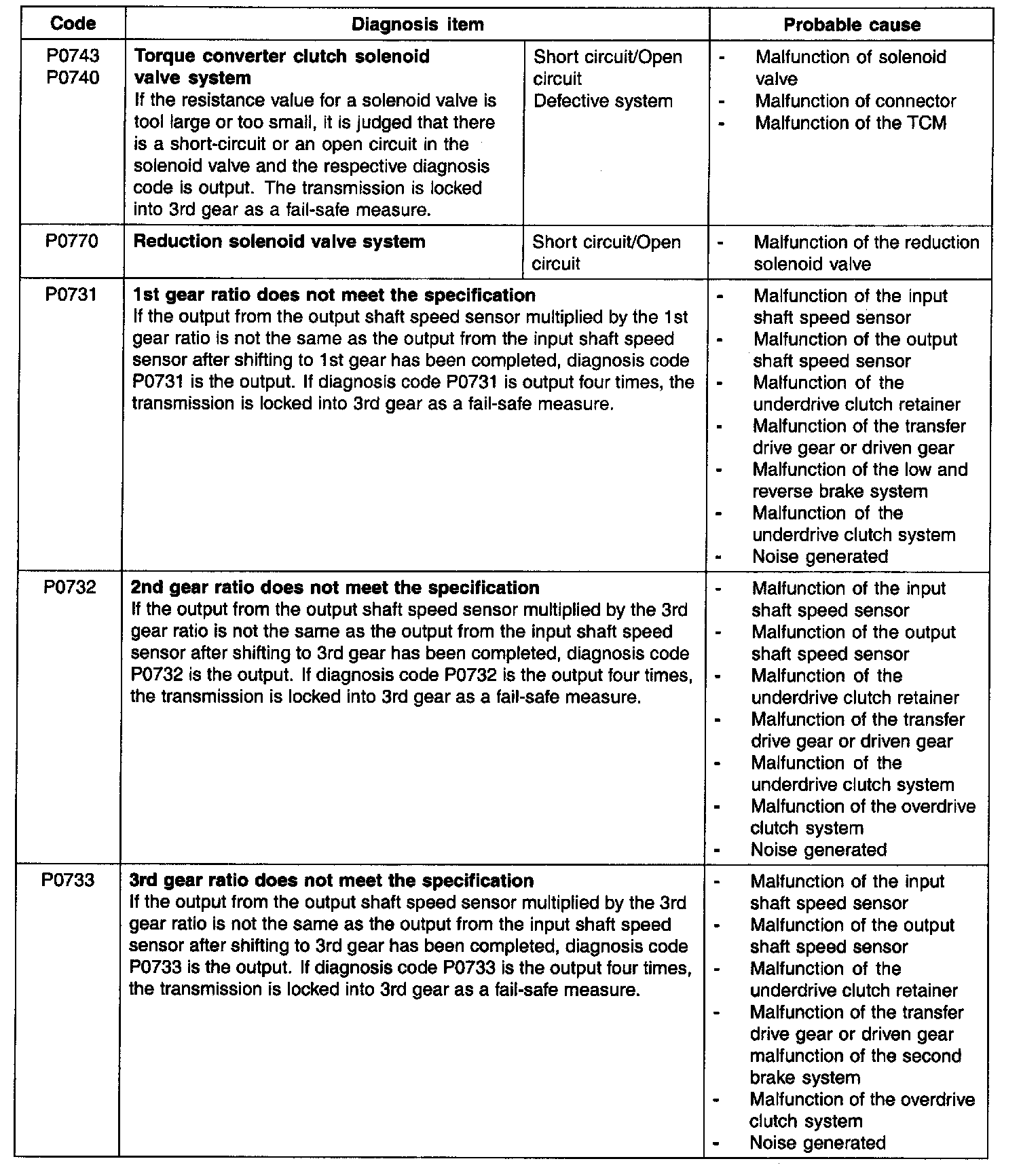

2 of 4

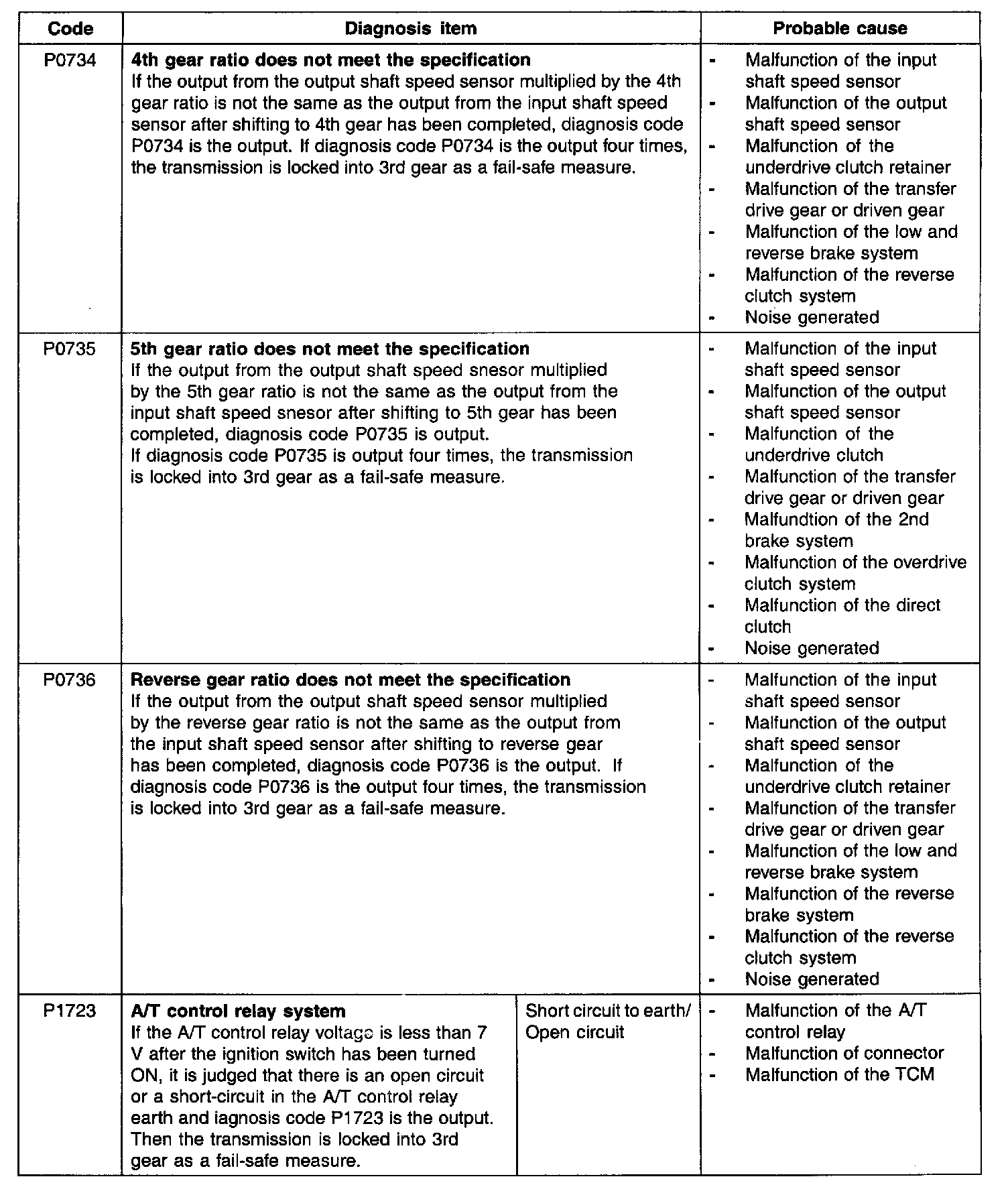

3 of 4

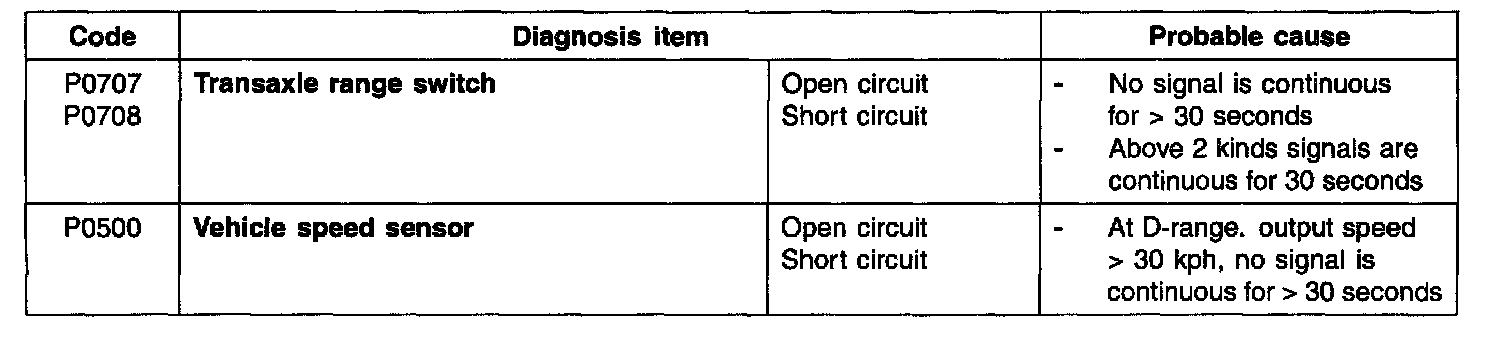

4 of 4

INSPECTION CHARTS FOR DIAGNOSIS CODES

NOTE: Hyundai Motor Company does not provide DTC specific flow charts for all DTCs. See the trouble code description list for a remedy or probable cause. In this instance, you may refer to specific component testing to determine the fault. Also, refer to TSBs for updated diagnostics.
