Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

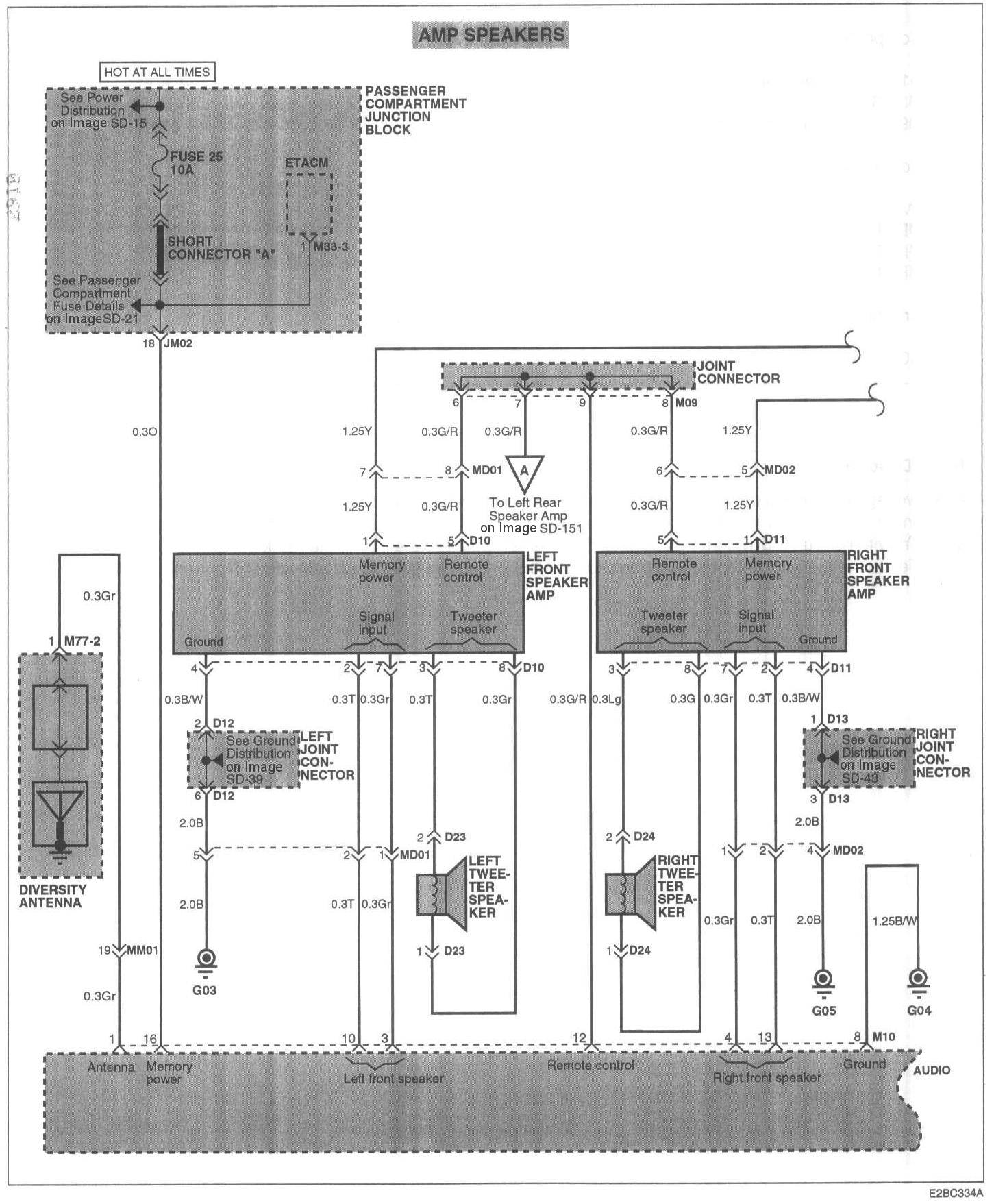

Image SD-150 Audio System (1):

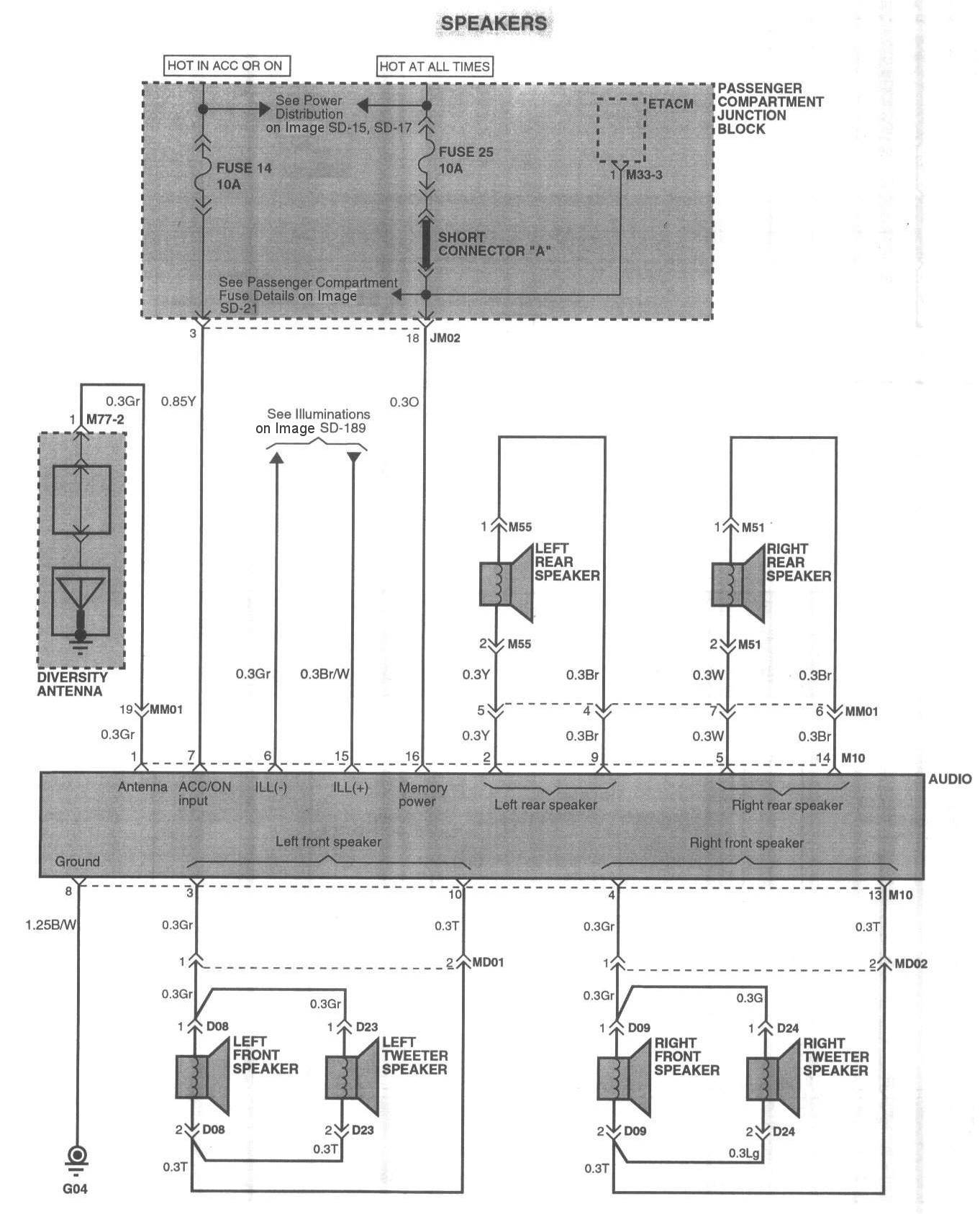

Image SD-151 Audio System (2):

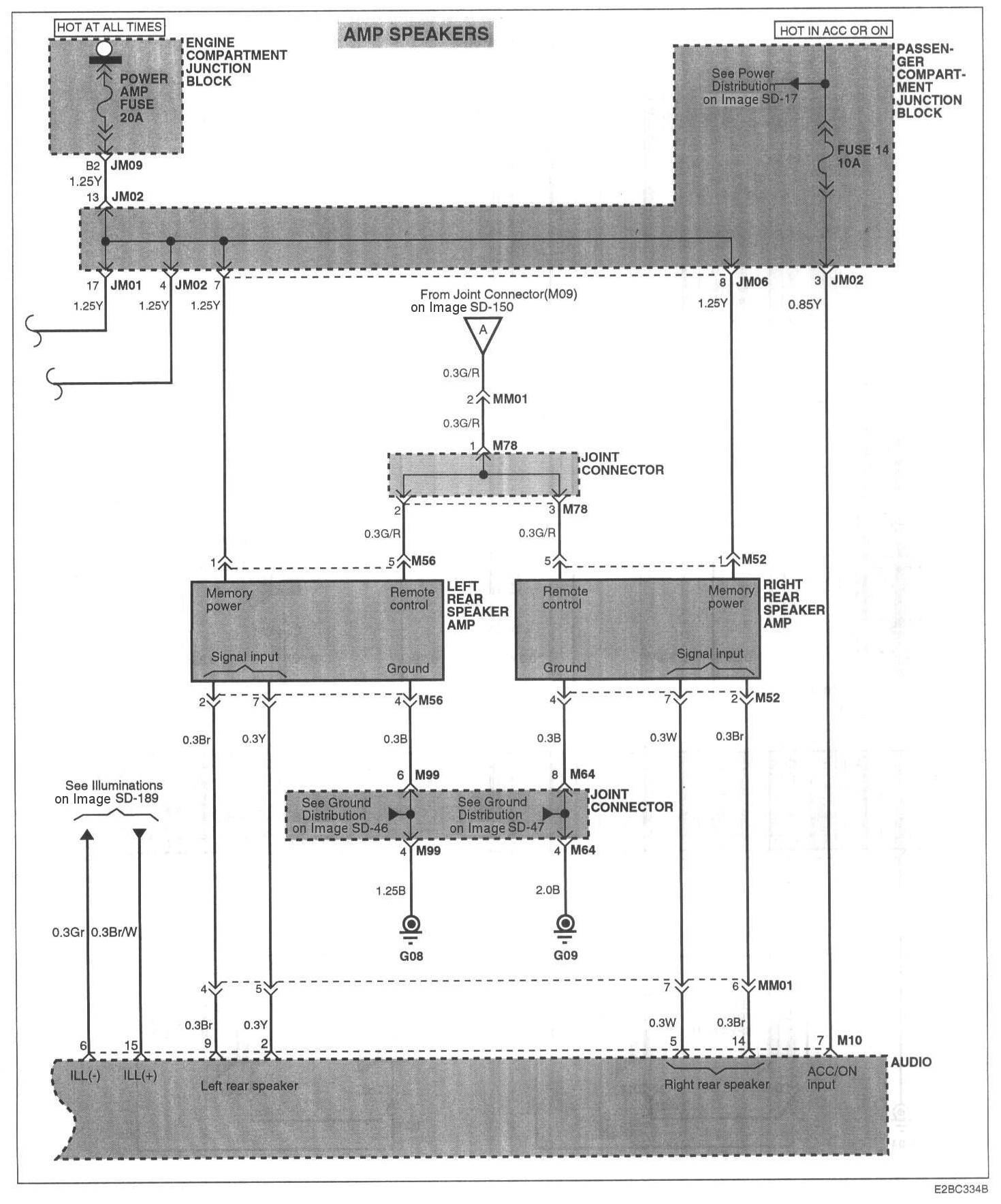

Image SD-152 Audio System (3):
