Rear Door Panel: Service and Repair

REMOVAL AND INSTALLATION

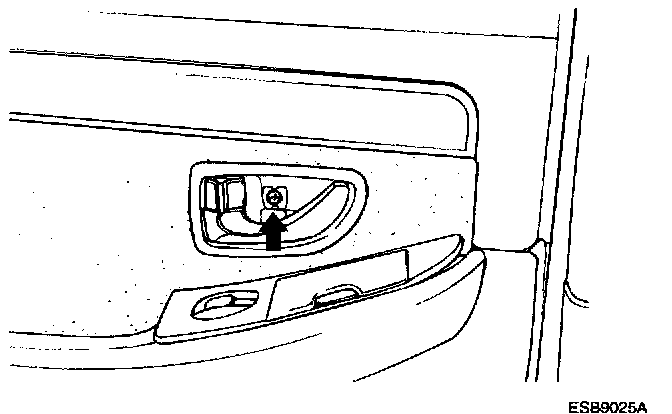

1. Remove the rear door inside handle housing.

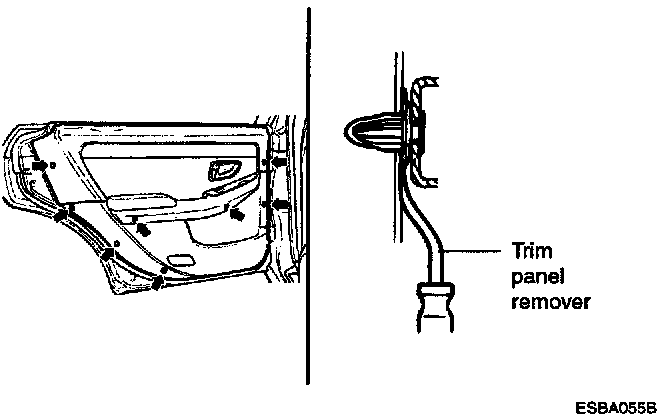

2. Remove the door trim panel by using a trim panel remover.

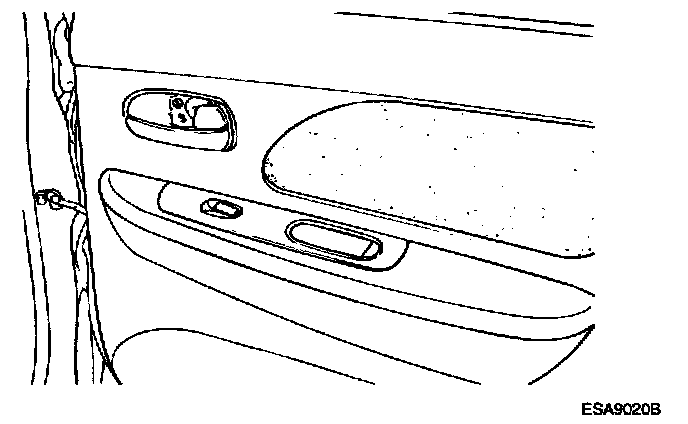

3. Disconnect the power window switch and the door courtesy lamp connector.






4. Remove the door pull handle mounting bracket, door inside handle and door trim seal.

- Reverse procedure to install.
