Console: Service and Repair

Console:

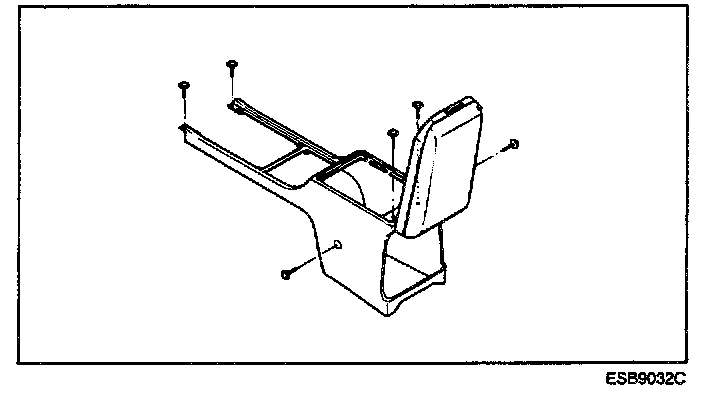

COMPONENTS

REMOVAL AND INSTALLATION

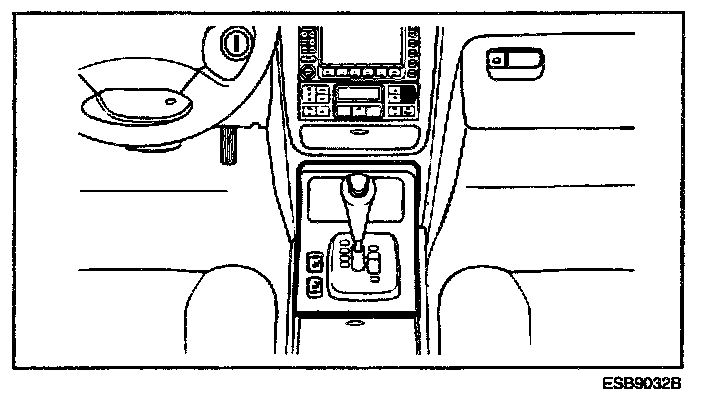

1. Remove the console upper cover and disconnect the switch connectors.

CAUTION: When prying the console upper cover loose with a flat-bladed screwdriver, wrap it with a shop towel to prevent damage.




2. Remove the floor console.
3. Installation is the reverse of removal.
