Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Sunroof / Moonroof
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

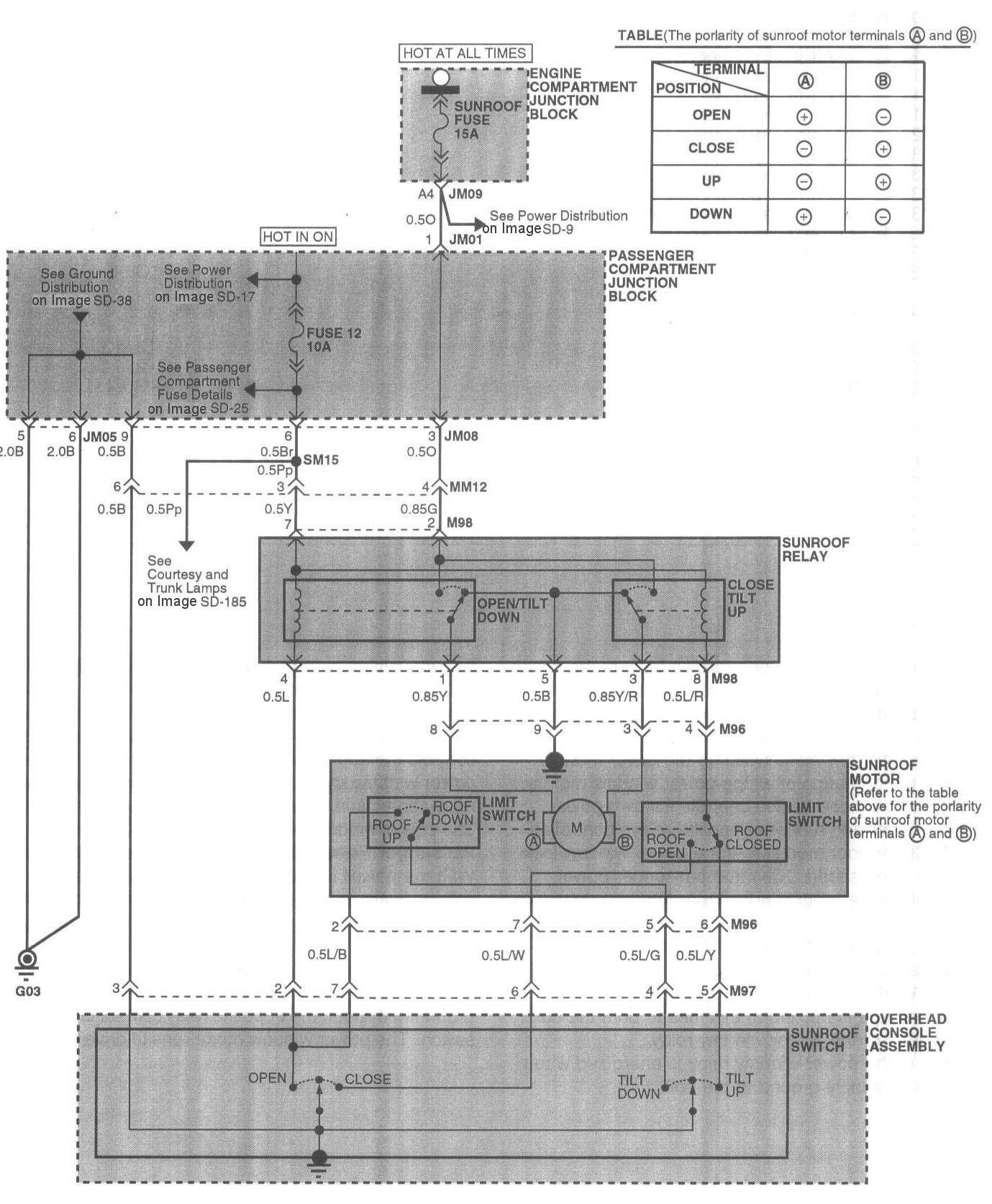

Image SD-146 Sunroof (1):
