Removal and Replacement

Sunroof:

COMPONENTS

REMOVAL

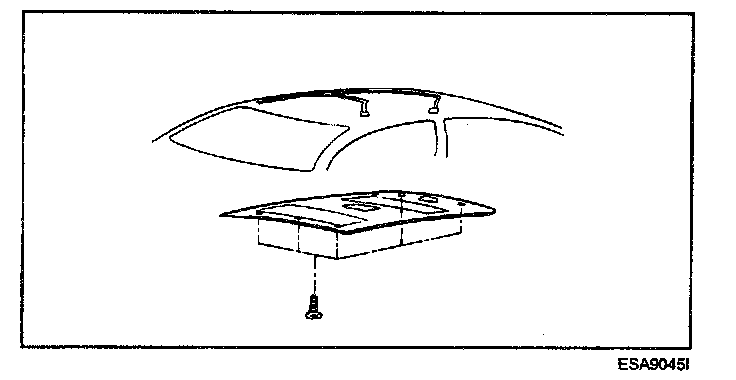

1. Remove the headliner. (Refer to INTERIOR TRIM)

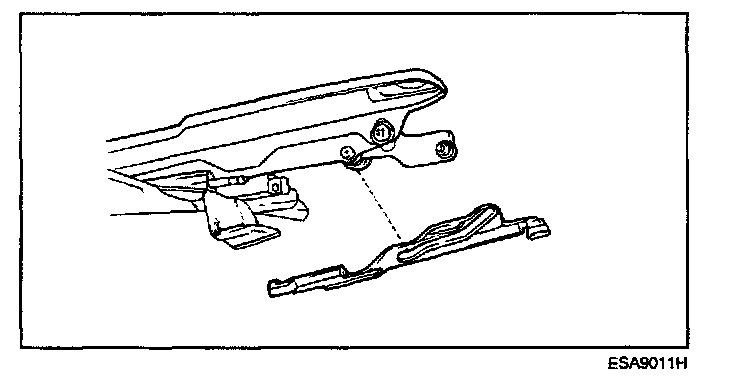

2. Remove the decoration cover and the glass panel.

Tightening torque Glass panel mounting nuts
4 - 6 Nm (40 - 60 kg.cm, 2.9 - 4.4 lb.ft)

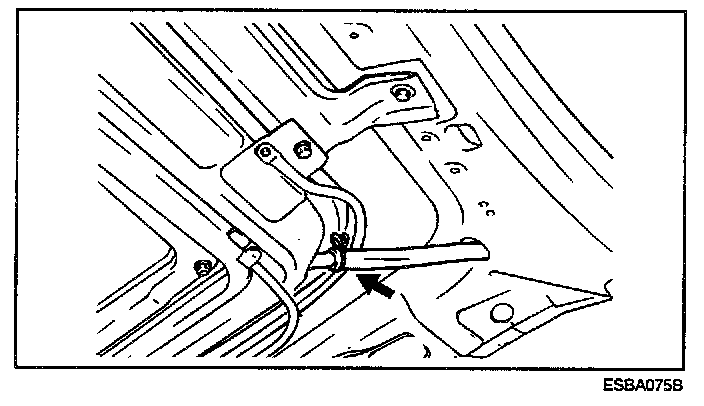

3. Disconnect the drain hose.

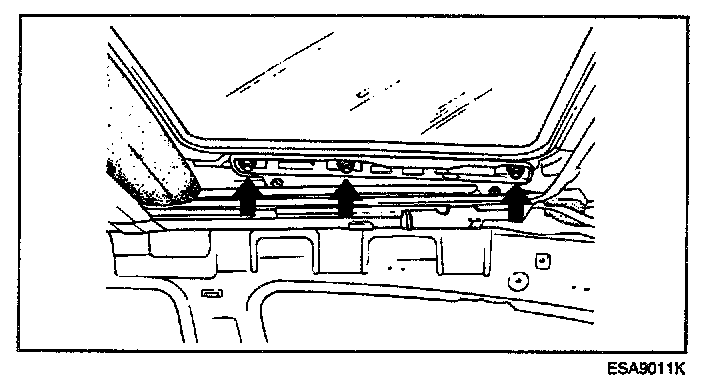

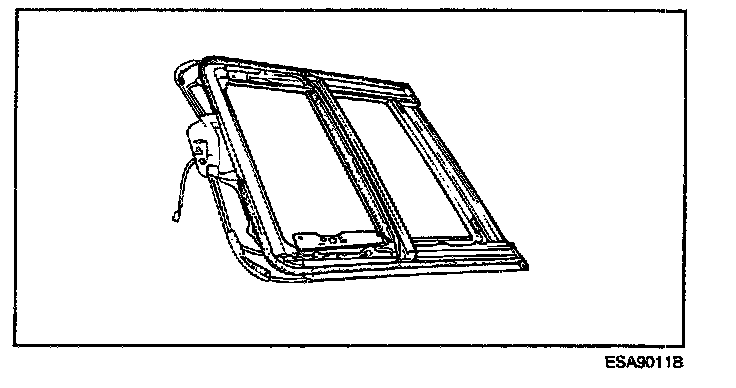

4. Remove the bolts and nuts holding the sunroof and then remove the sunroof assembly.

Tightening torque
Sunroof mounting bolts:
7 - 11 Nm (70 - 110 kg.cm, 5.1 - 8.0 lb.ft)

Sunroof mounting nuts:
4 - 6 Nm (40 - 60 kg.cm, 2.9 - 4.4 lb.ft)






NOTE: When removing the sunroof assembly, carefully pull out the assembly to avoid damaging other parts.

INSTALLATION







Installation is the reverse of removal.

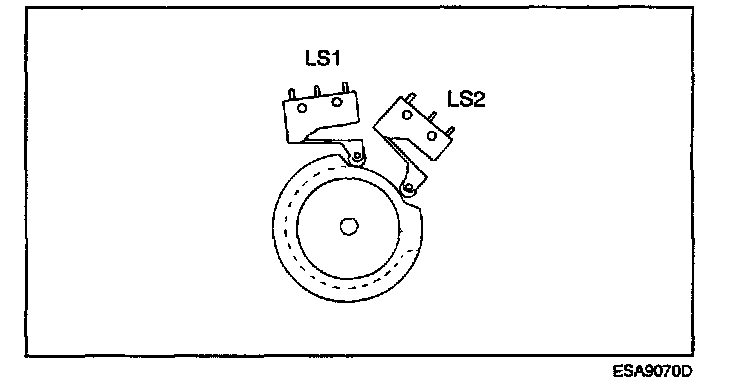

NOTE: Check that the limit switches (LS1 and LS2) of the motor are fully closed. Align the guide roller center and slider mating marks in the fully closed position.
