Power Seat Motor: Locations

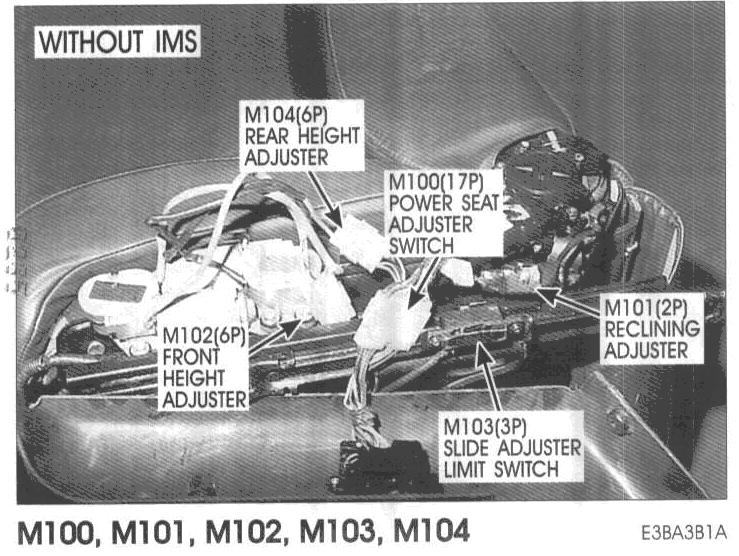

M100 Power Seat Adjuster Switch, M101 Reclining Adjuster, M102 Front Height Adjuster, M103 Slide Adjuster Limit Switch, M104 Right Height Adjuster:

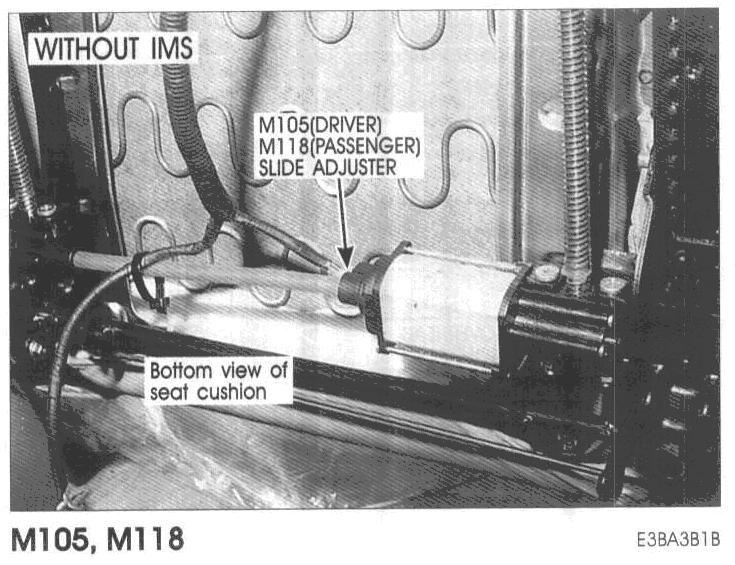

M105 Driver Slide adjuster, M118 Passenger Slide adjuster:

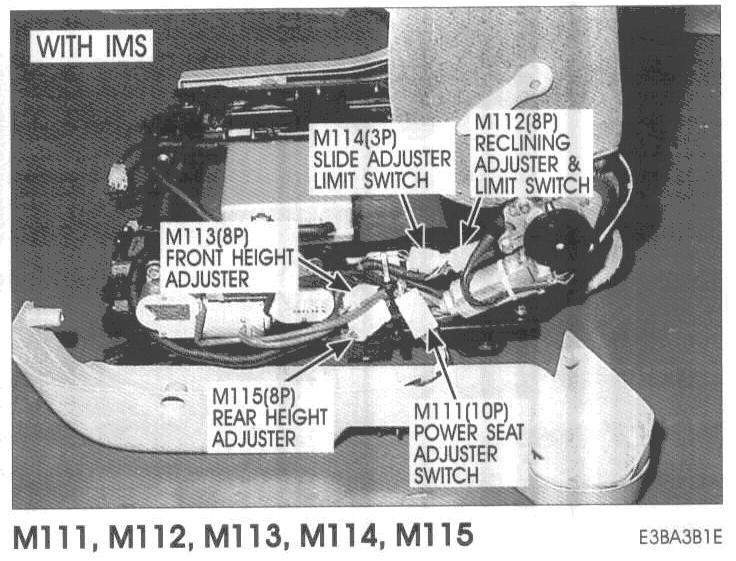

M111 Power Seat Adjuster Switch, M112 Reclining Adjuster & Limit Switch, M113 Front Height Adjuster, M114 Slide Adjuster Limit Switch, M115 Rear Height Adjuster:

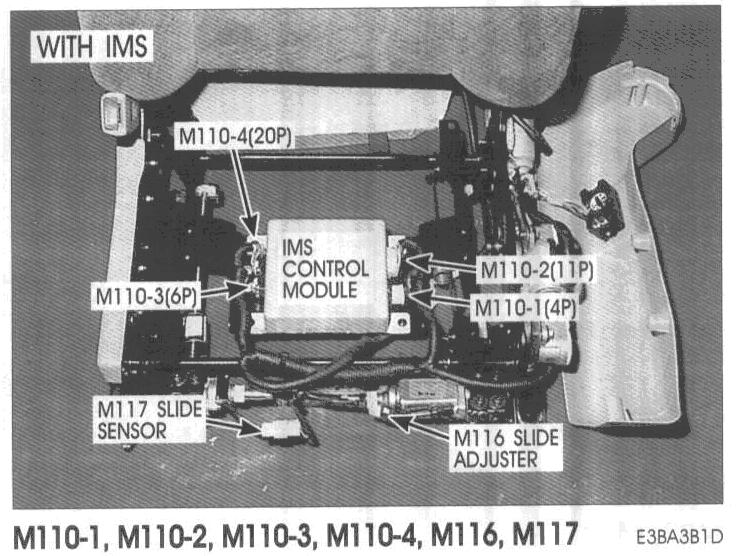

M110-1 IMS Control Module, M110-2 IMS Control Module, M110-3 IMS Control Module M110-4 IMS Control Module, M116 Slide Adjuster, M117 Slide Sensor:
