Electrical Diagrams

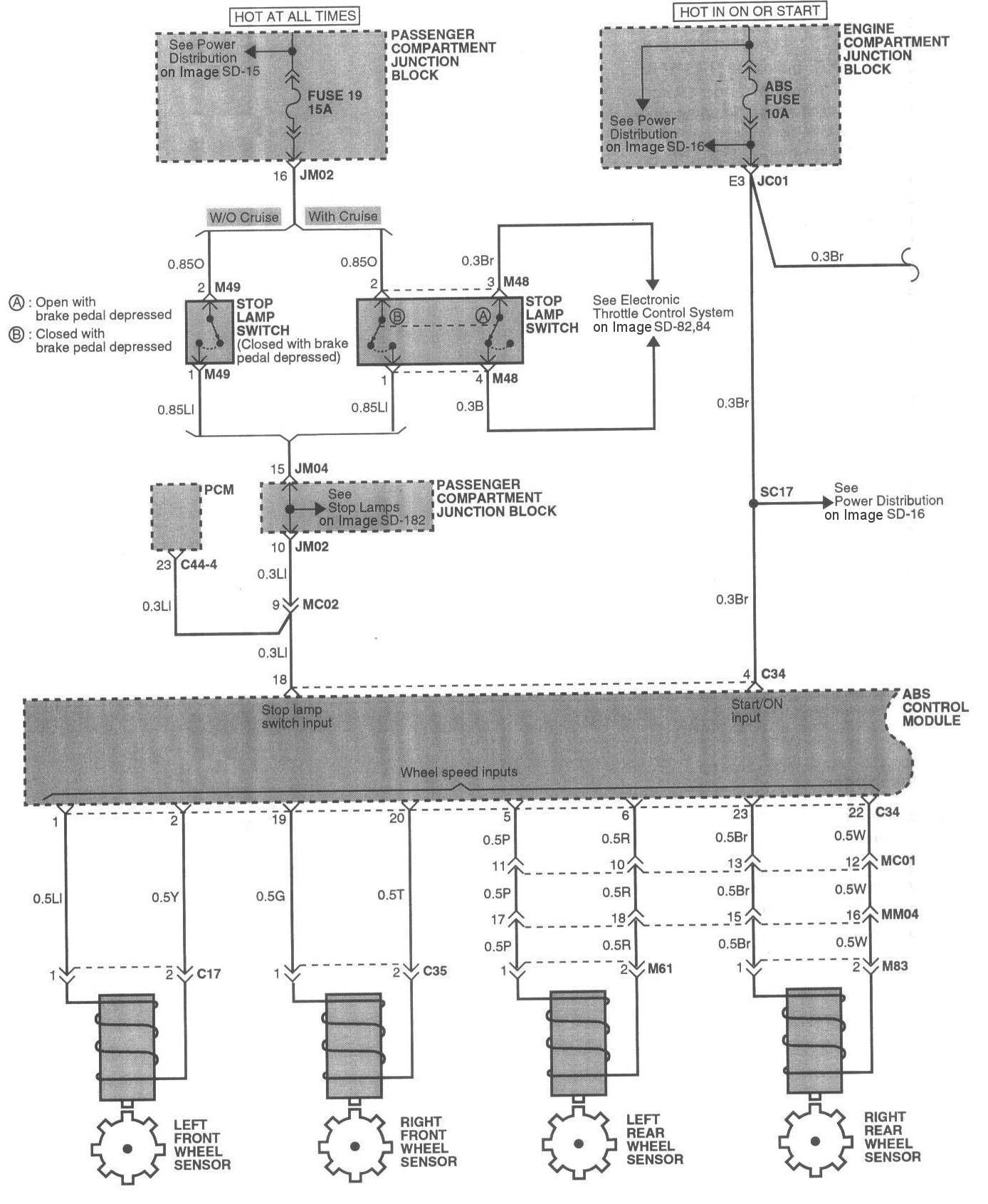

Image SD-90 Anti-lock Brake System/Traction Control System (1):

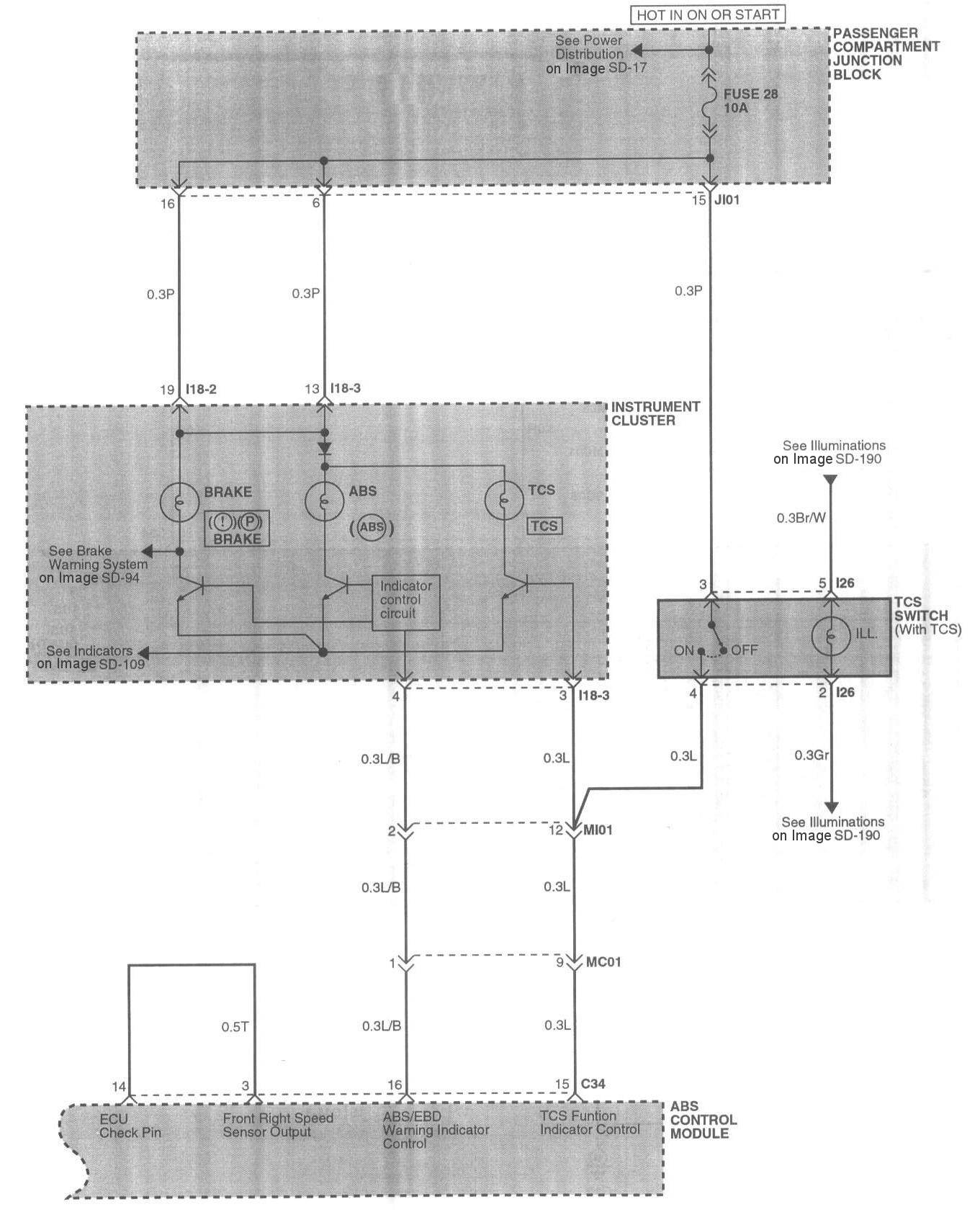

Image SD-91 Anti-lock Brake System/Traction Control System (2):

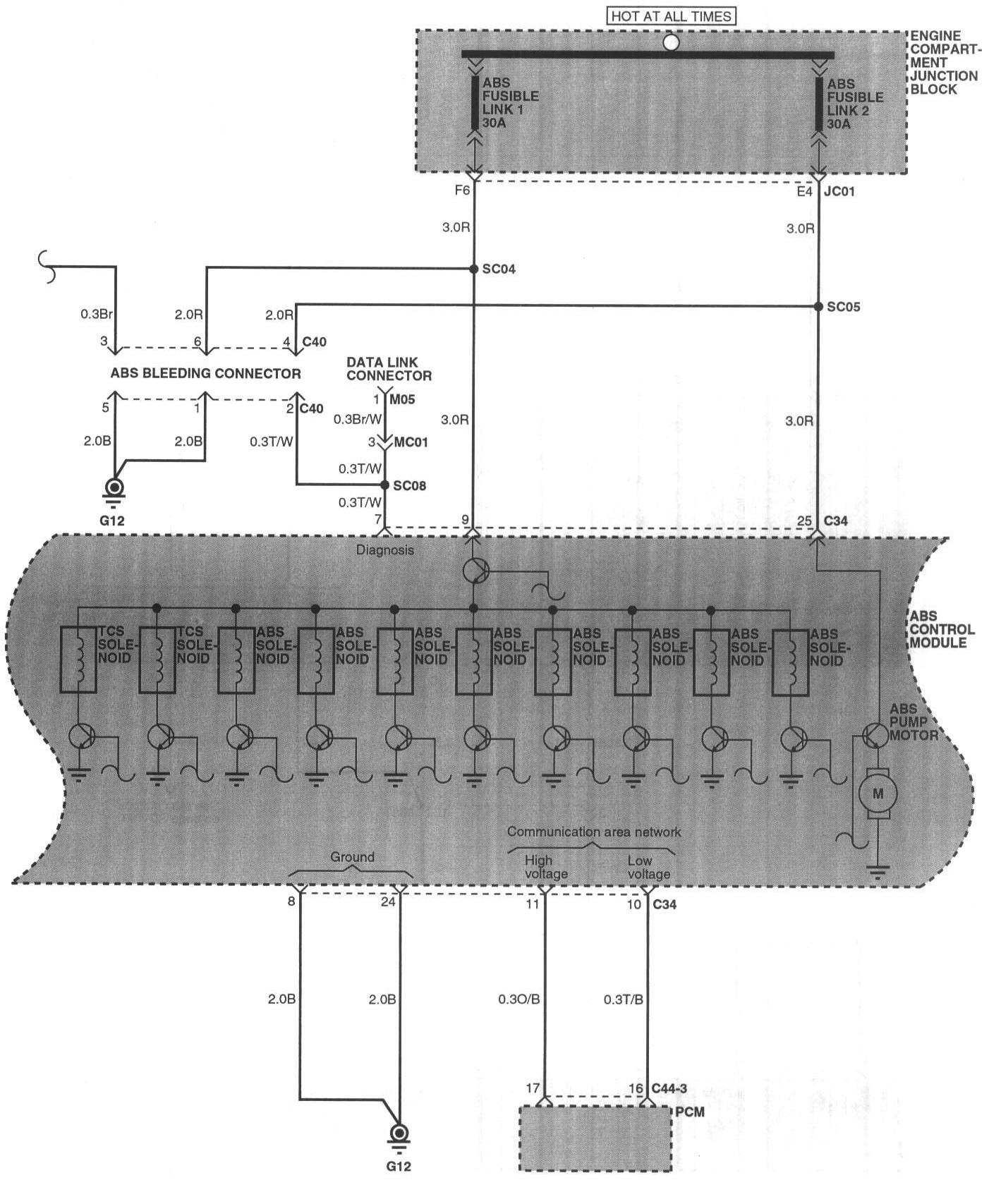

Image SD-92 Anti-lock Brake System/Traction Control System (3):
