Diagnostic Strategies
Diagnostic Strategies

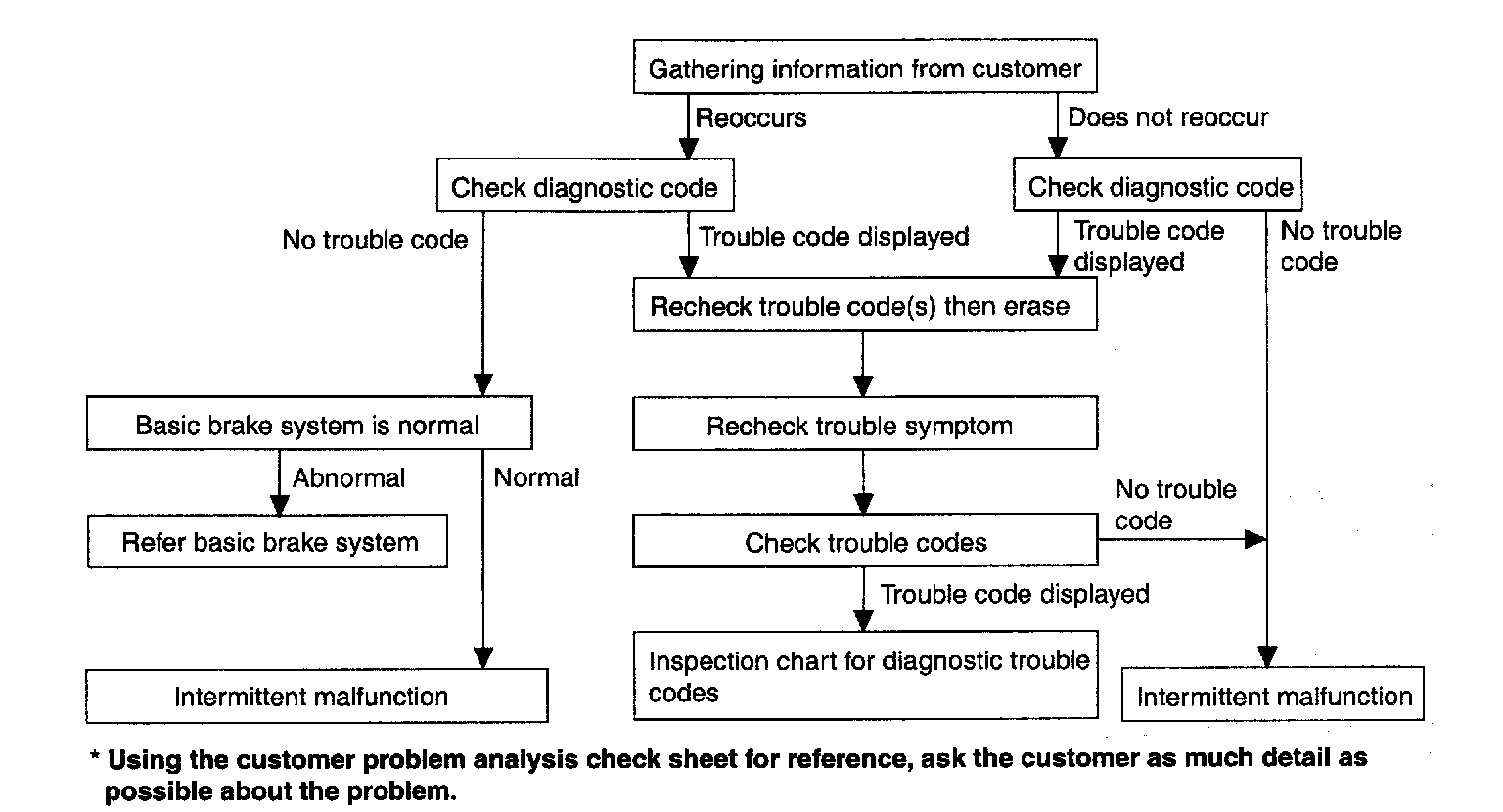

STANDARD FLOW OF DIAGNOSTIC
NOTES WITH REGARD TO DIAGNOSIS

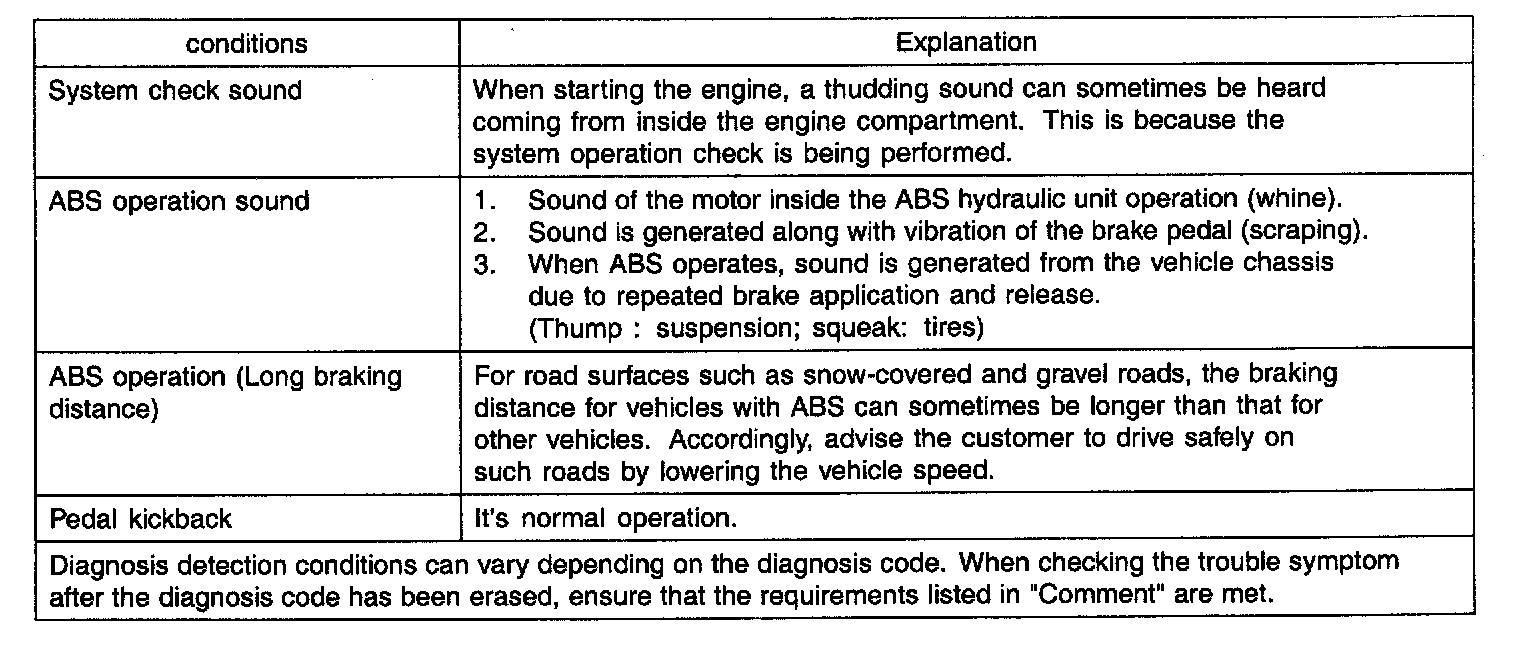

The conditions listed in the table are not abnormal.

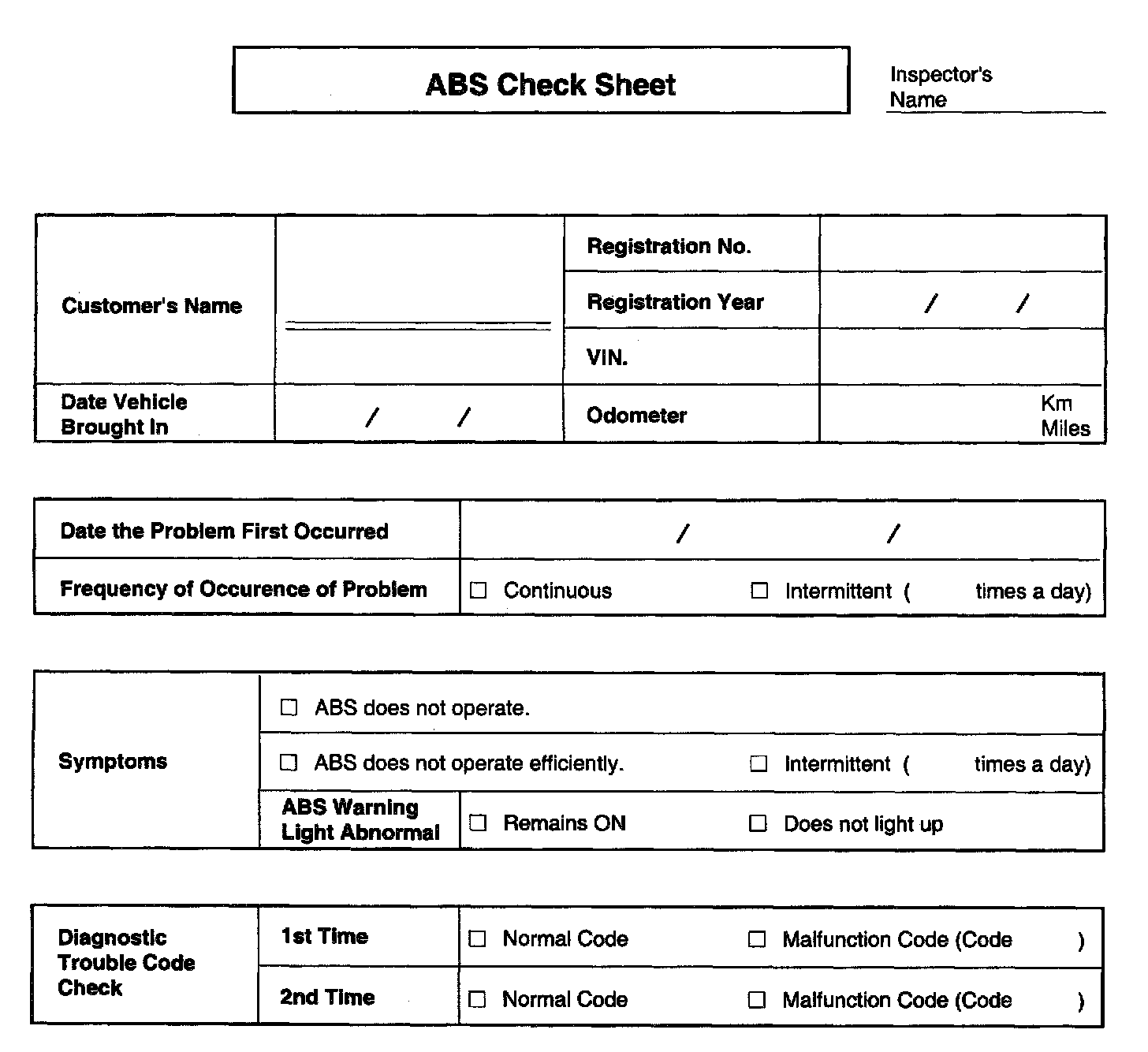

ABS CHECK SHEET
