Diesel Data
: Automotive Repair
Home
>>
Hyundai
>>
2002
>>
XG 350 V6-3.5L
>>
Repair and Diagnosis
>>
Cruise Control
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

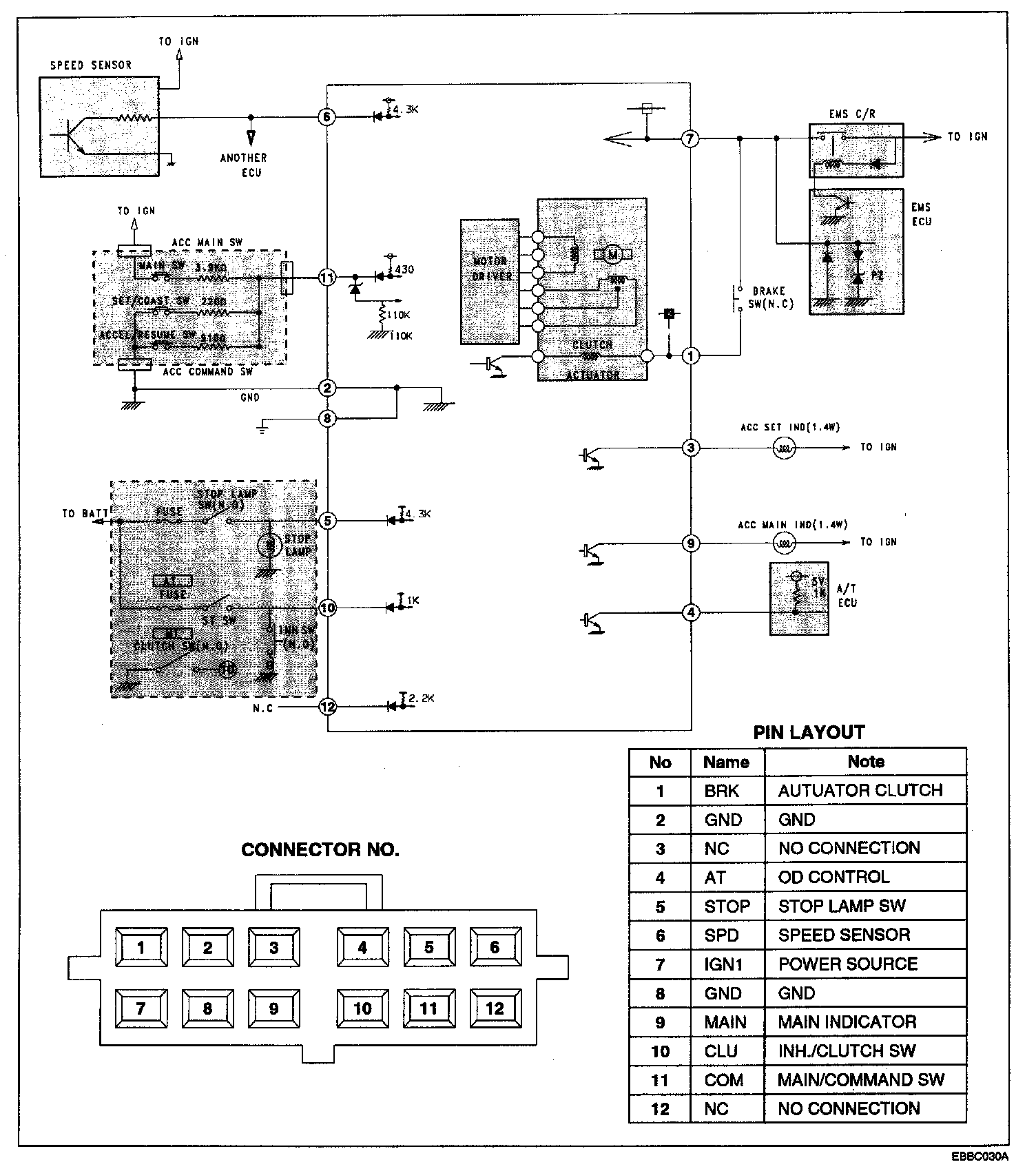

Image SD-84 Cruise Control System (1):

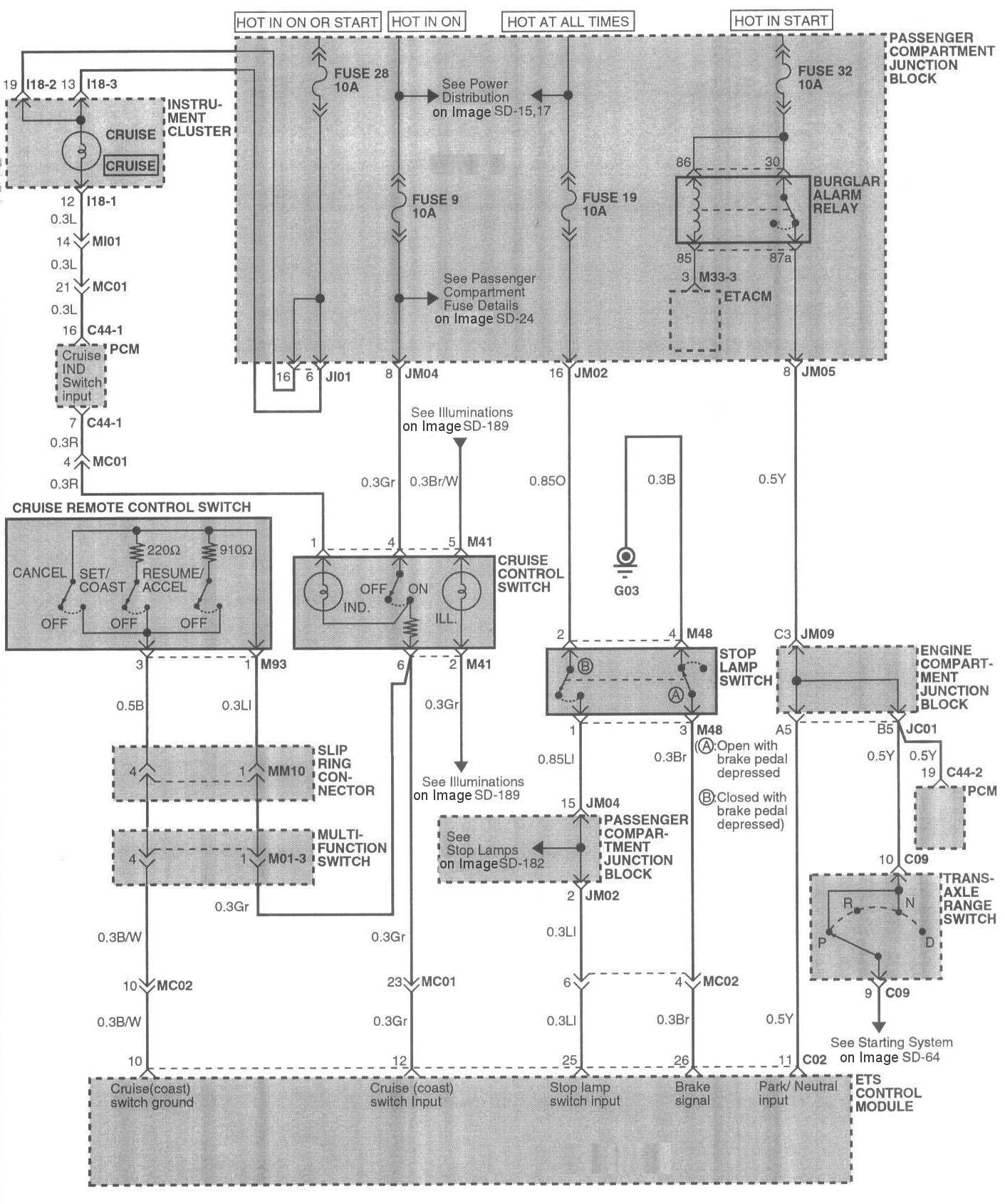

Cruise Control System - Circuit Diagram:
