Diagrams
>>
Connector Views
>>
D Connectors (Door Harness)
D Connectors (Door Harness)

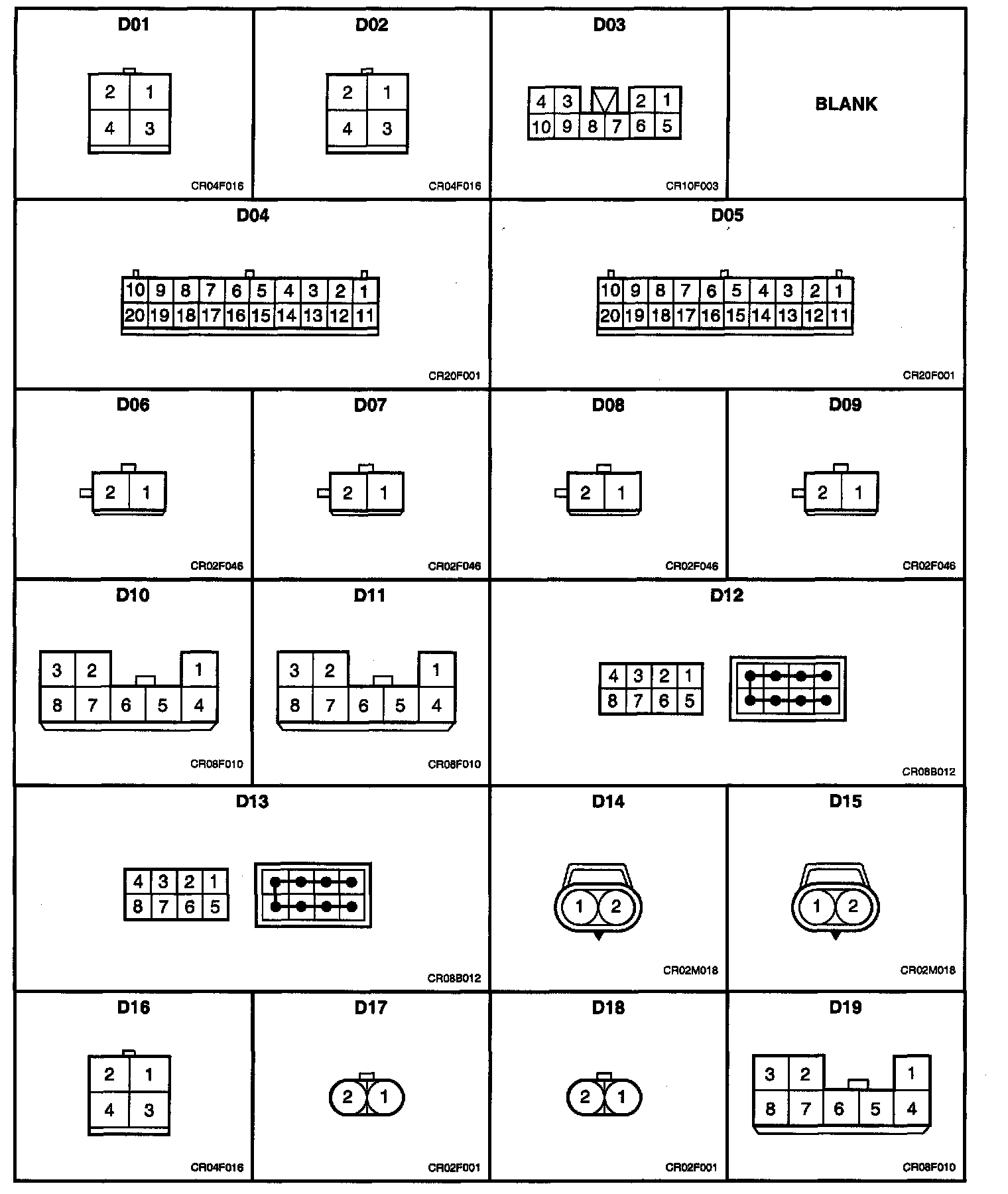

D01 - D19:

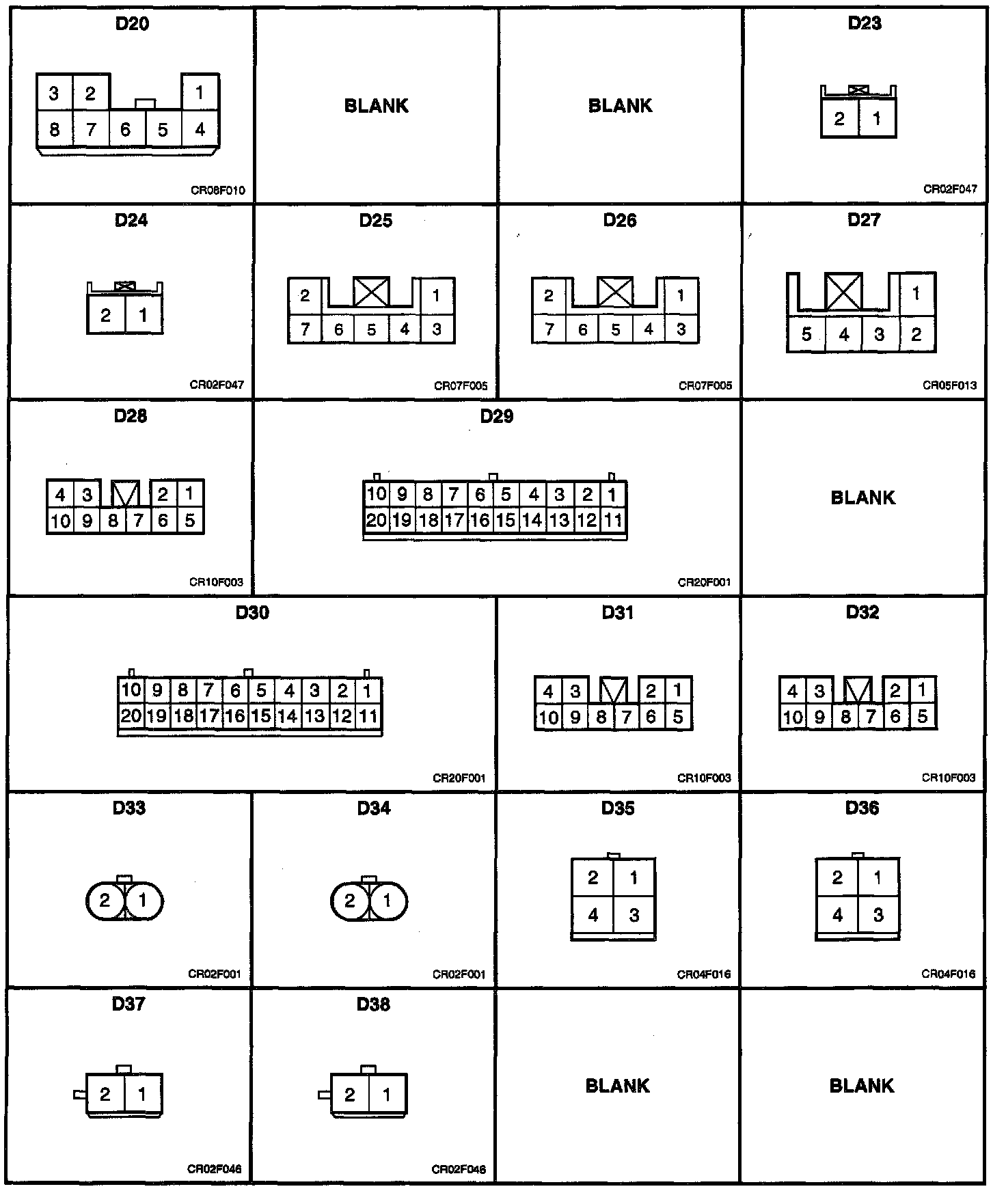

D20 - D38:
