I Connectors (Instrument Harness)
I Connectors (Instrument Harness)

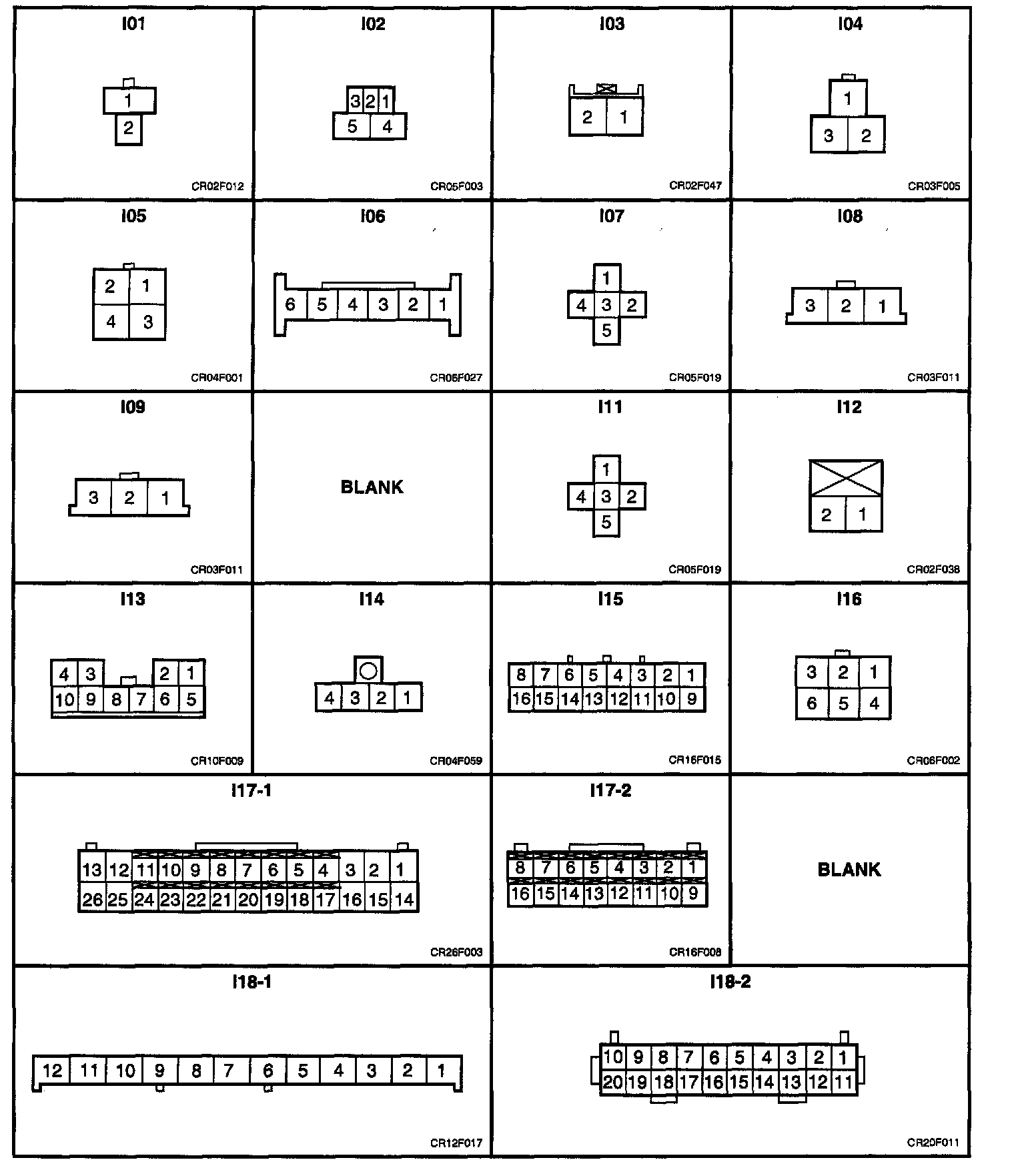

I01 - I18-2:

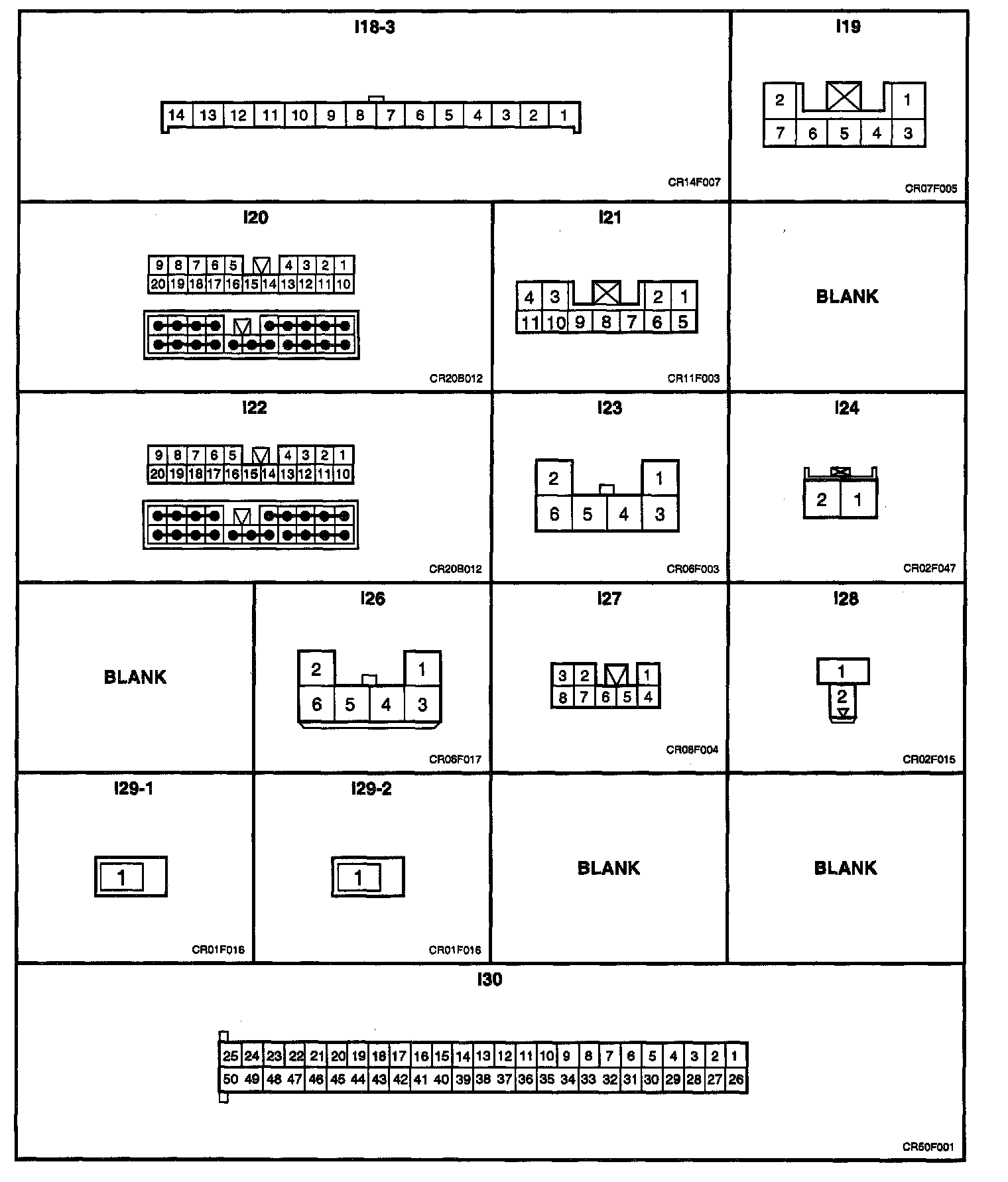

I18-3 - I30:

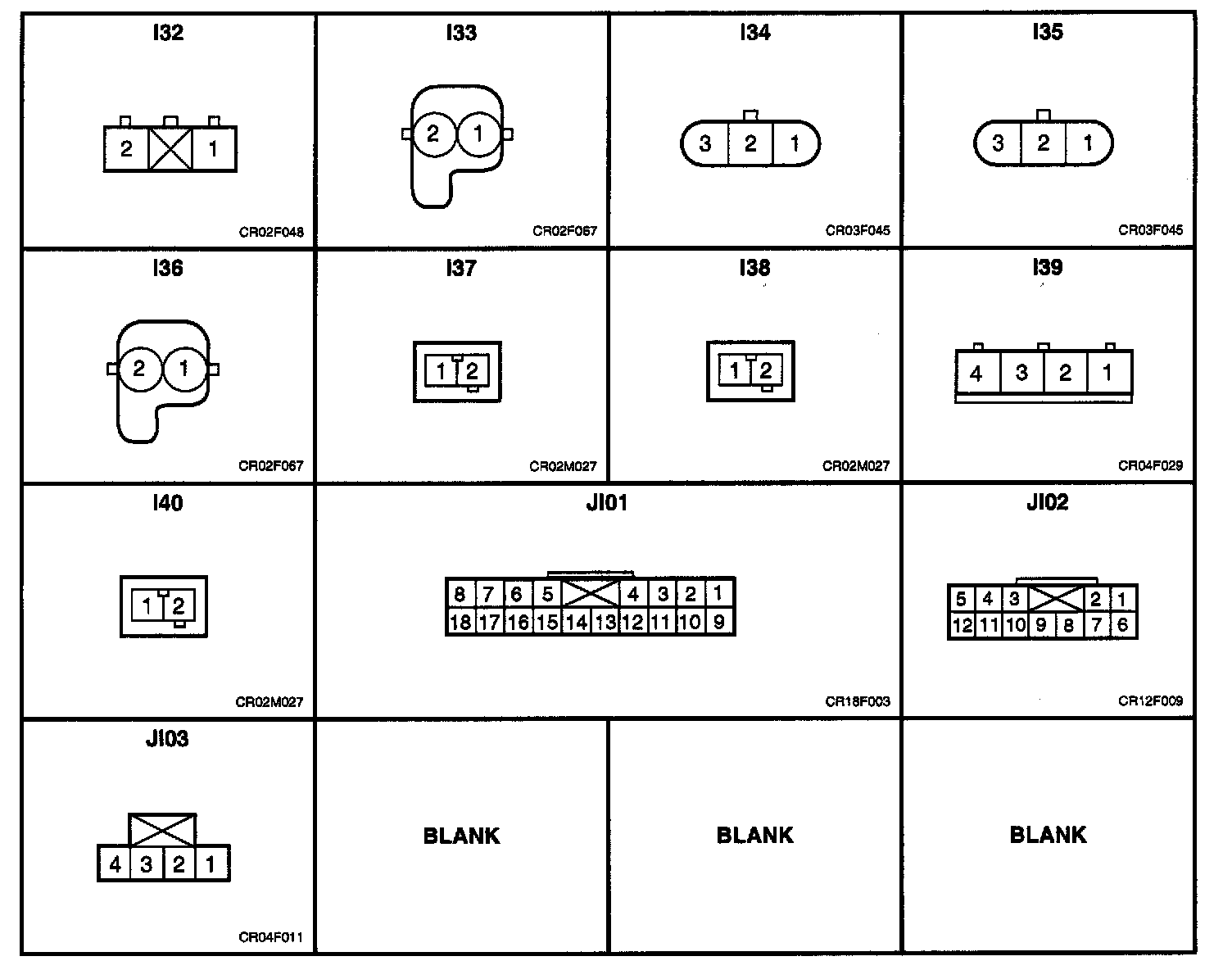

I32 - JI03:
