Ambient Light Sensor
Ambient Light Sensor

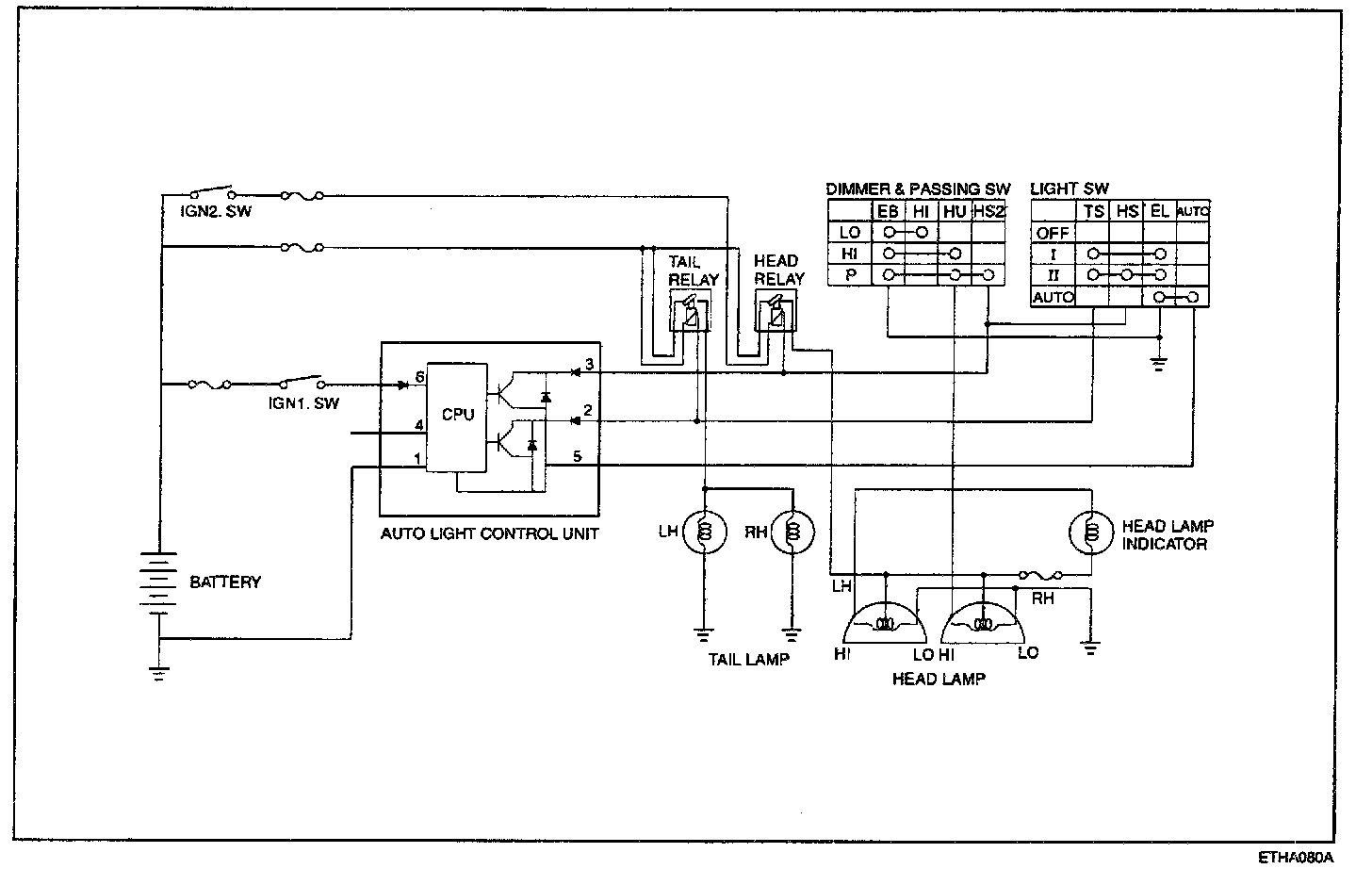

Circuit Diagram:

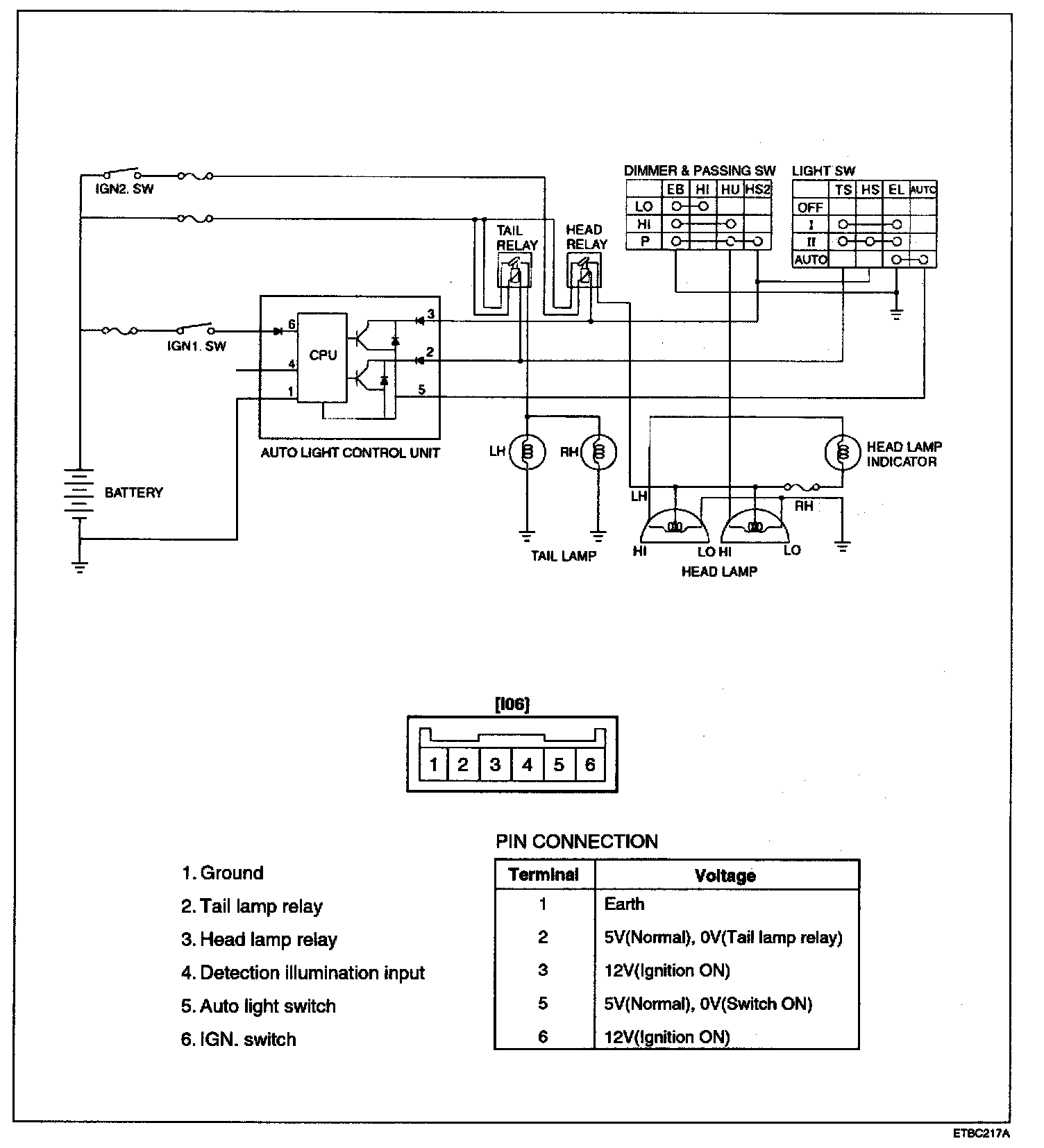

Auto Lights Control System - Circuit Diagram:

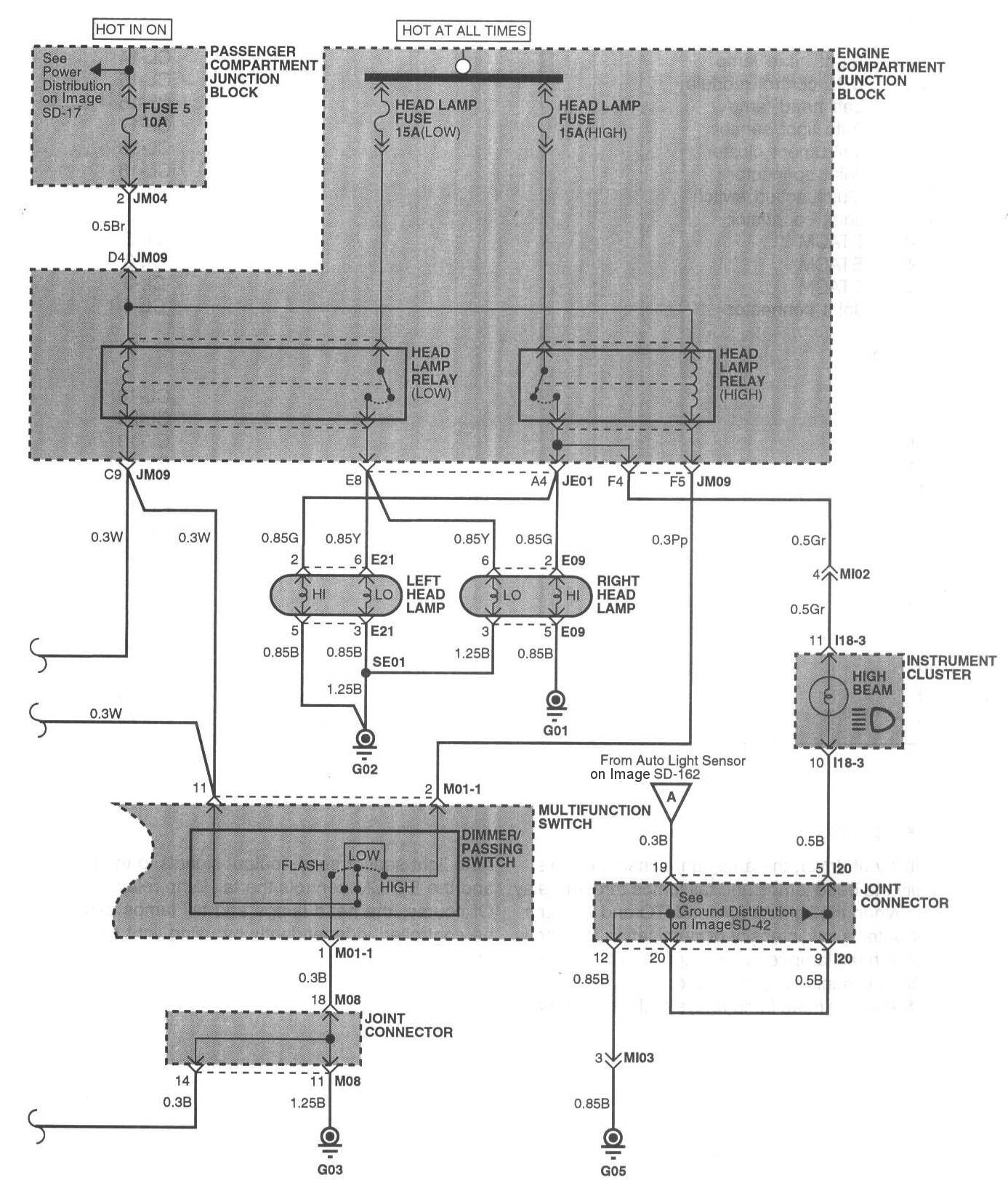

Image SD-163 Auto Lights (2):
