Home >> Hyundai >> 2002 >> XG 350 V6-3.5L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Backup Lamp

Backup Lamp

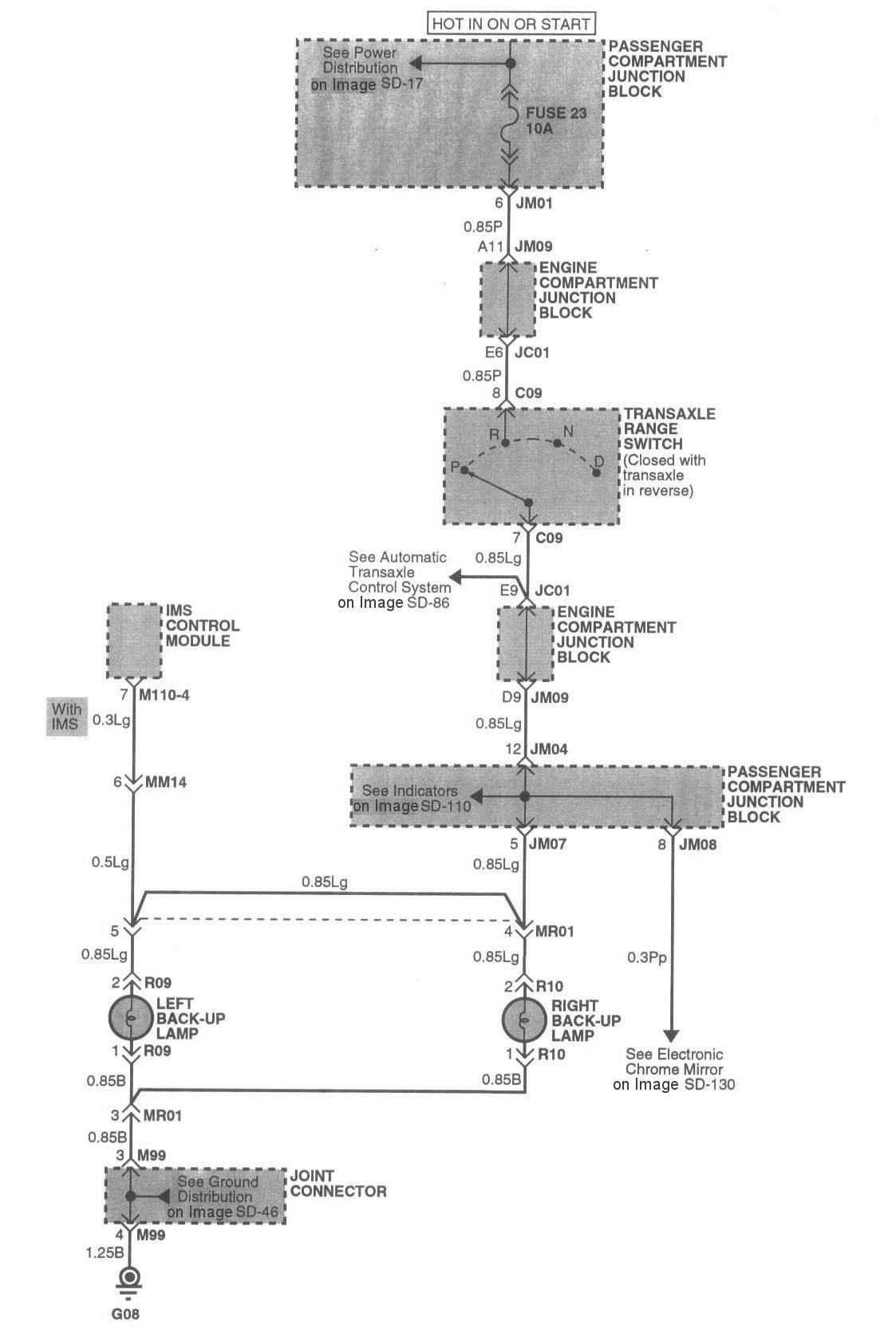

Image SD-180 Back-up Lamps (1):
