Power Trunk / Liftgate Lock Actuator
Power Trunk / Liftgate Lock Actuator

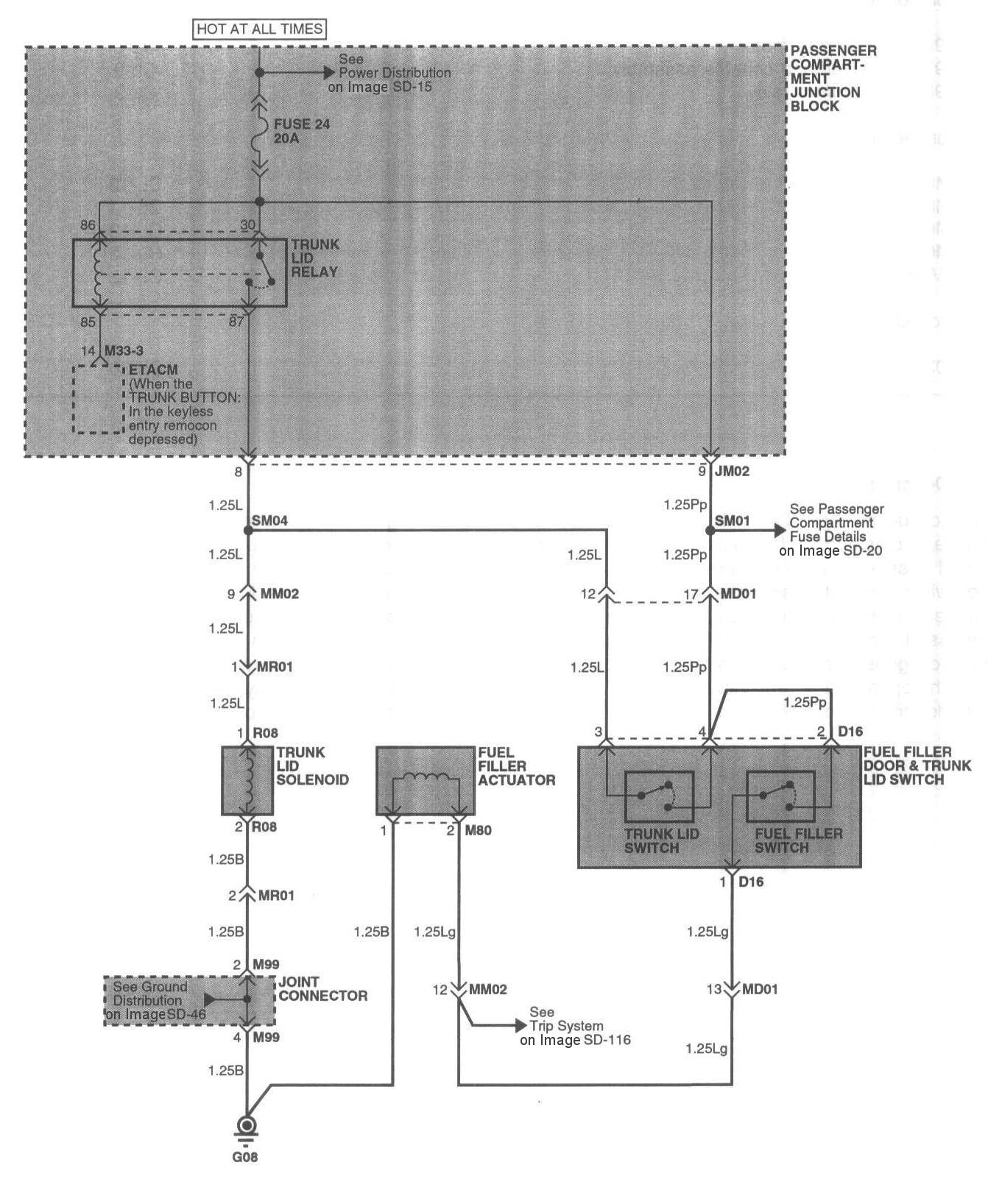

Image SD-148 Fuel Filler Door & Trunk Lid Opener (1):
