Electrical Diagrams
Electrical Diagrams

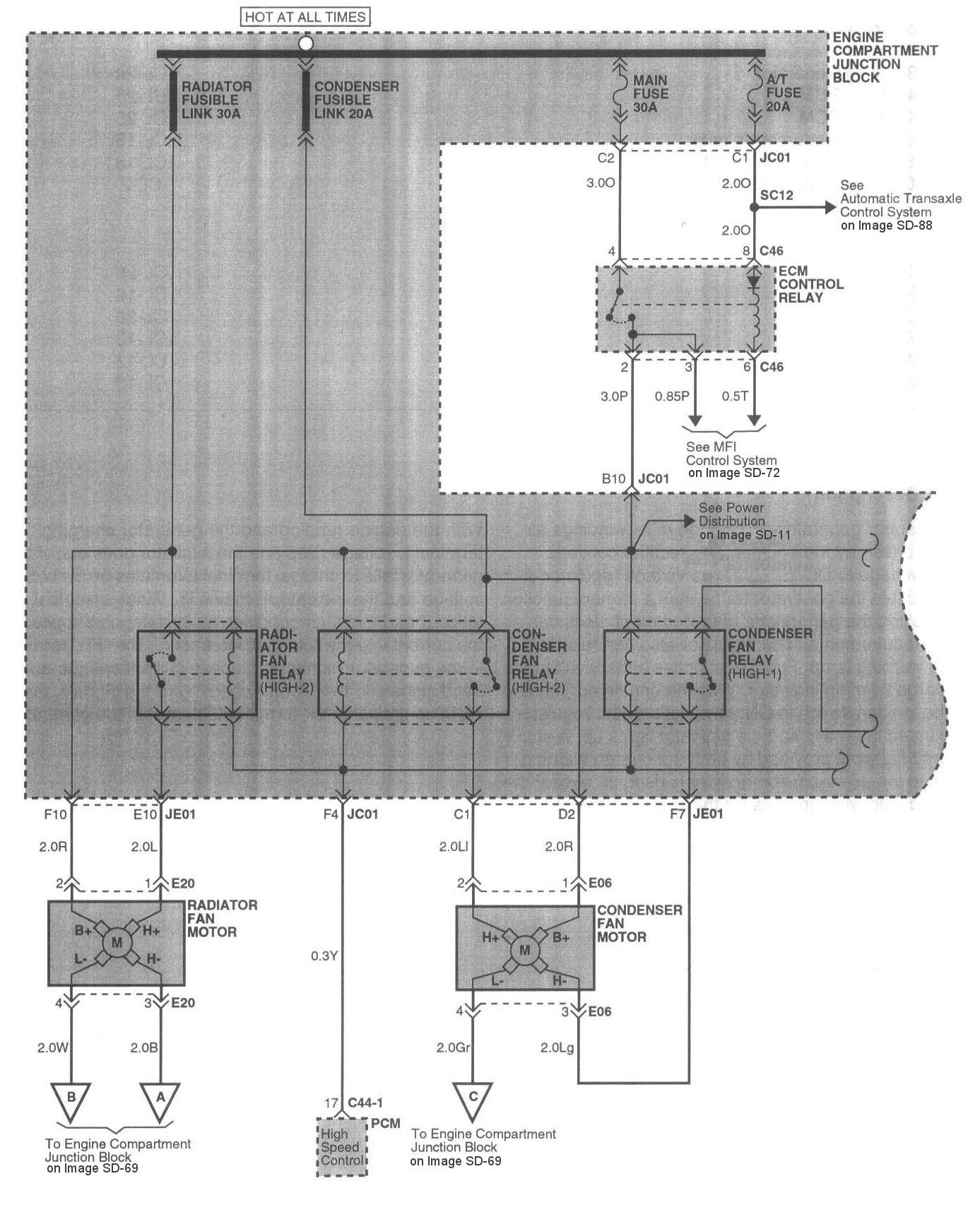

Image SD-68 Cooling System (1):

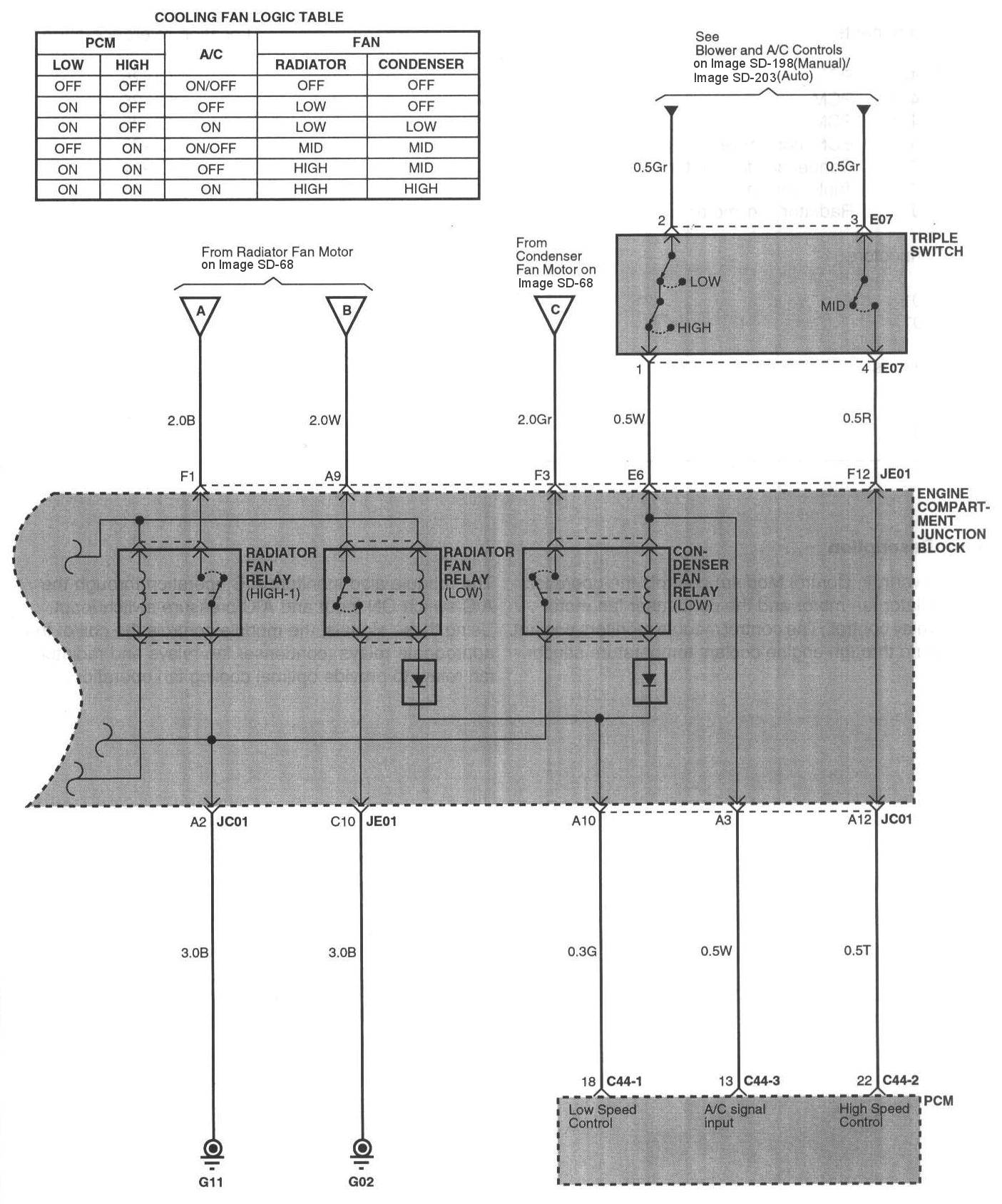

Image SD-69 Cooling System (2):
