Locations
>>
Harness Locations
>>
Main Harness
Main Harness

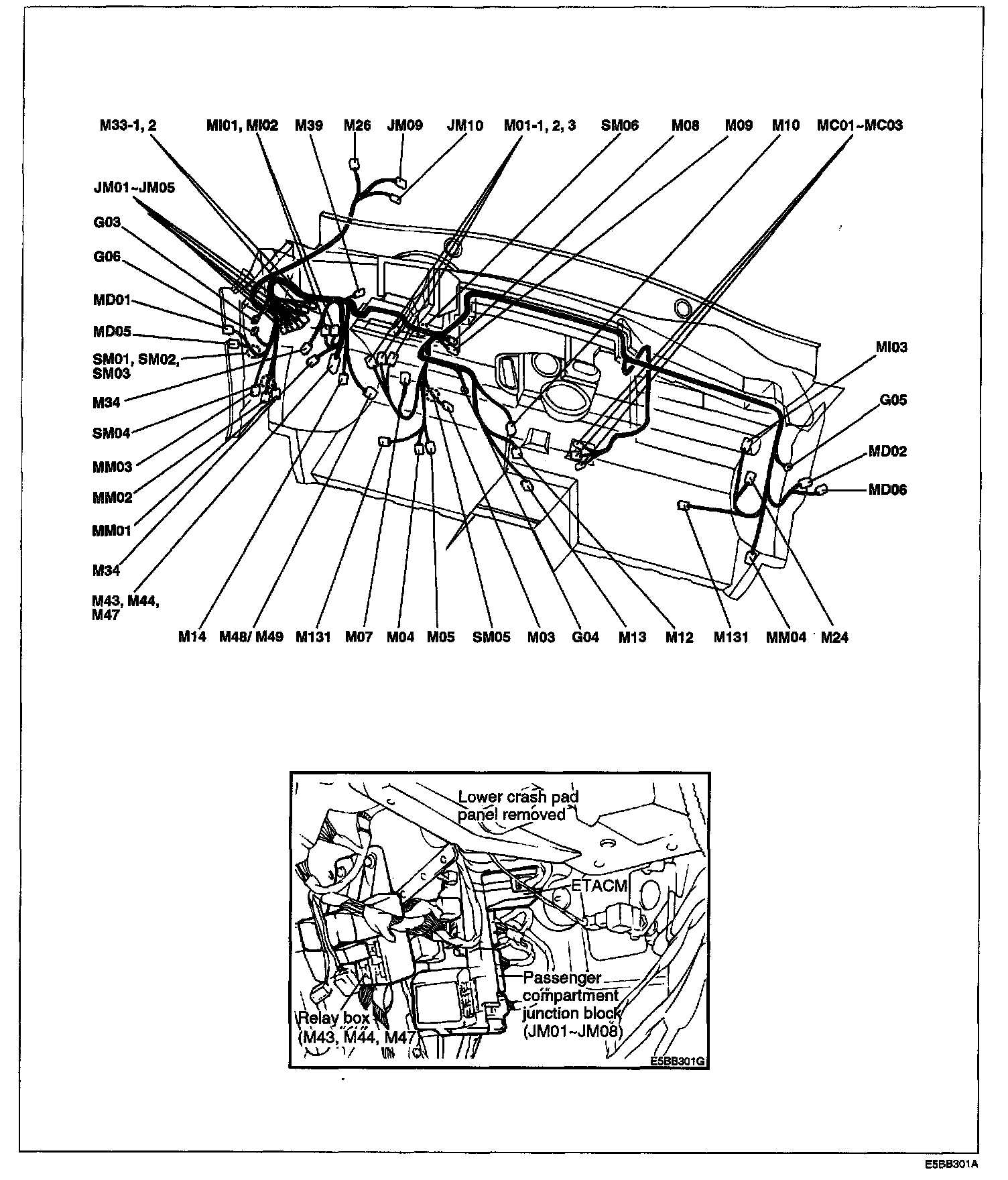

Main Harness (1) - View:

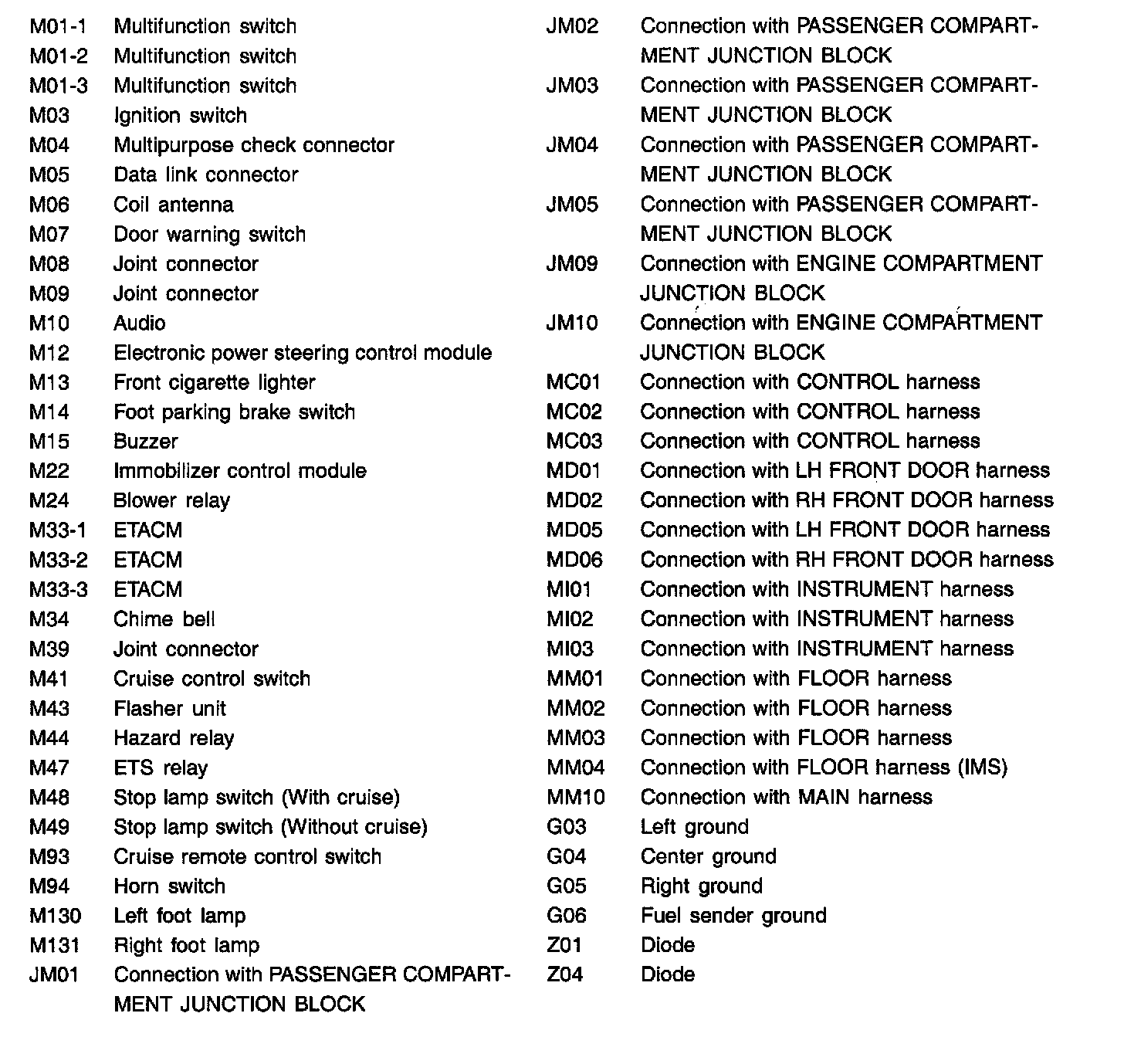

Main Harness (1) - Index:

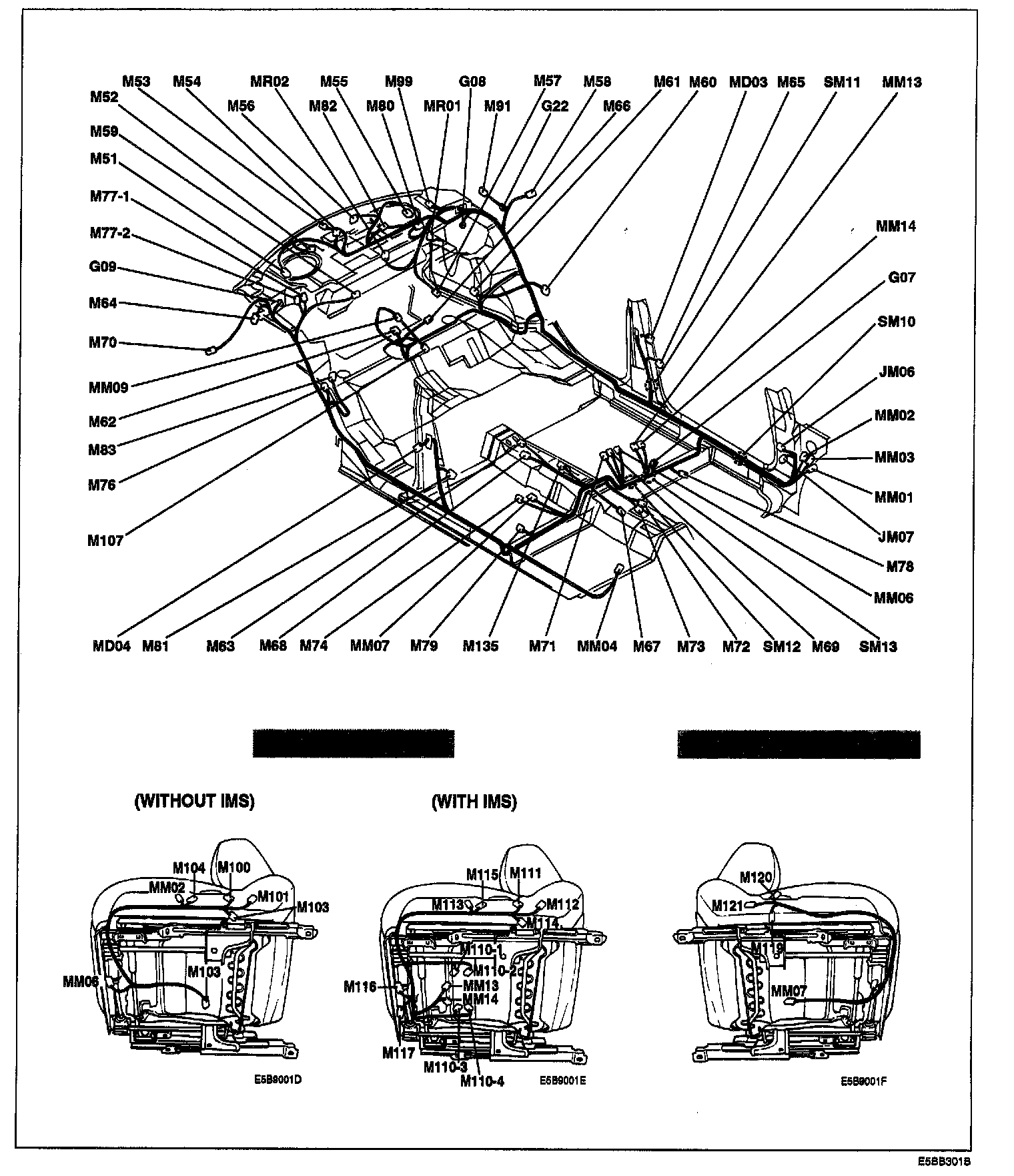

Main Harness (Floor) - View:

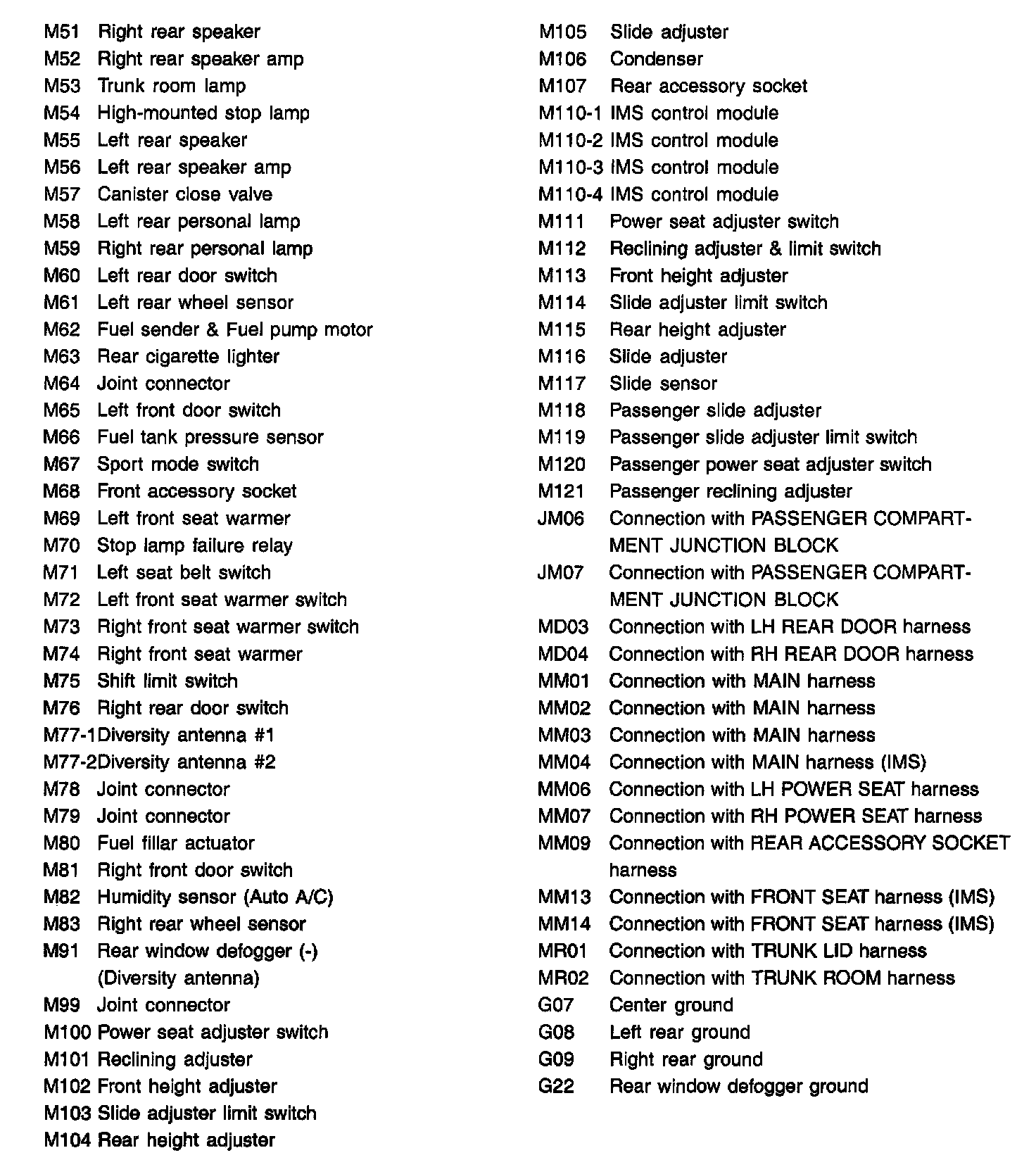

Main Harness (Floor) - Index:

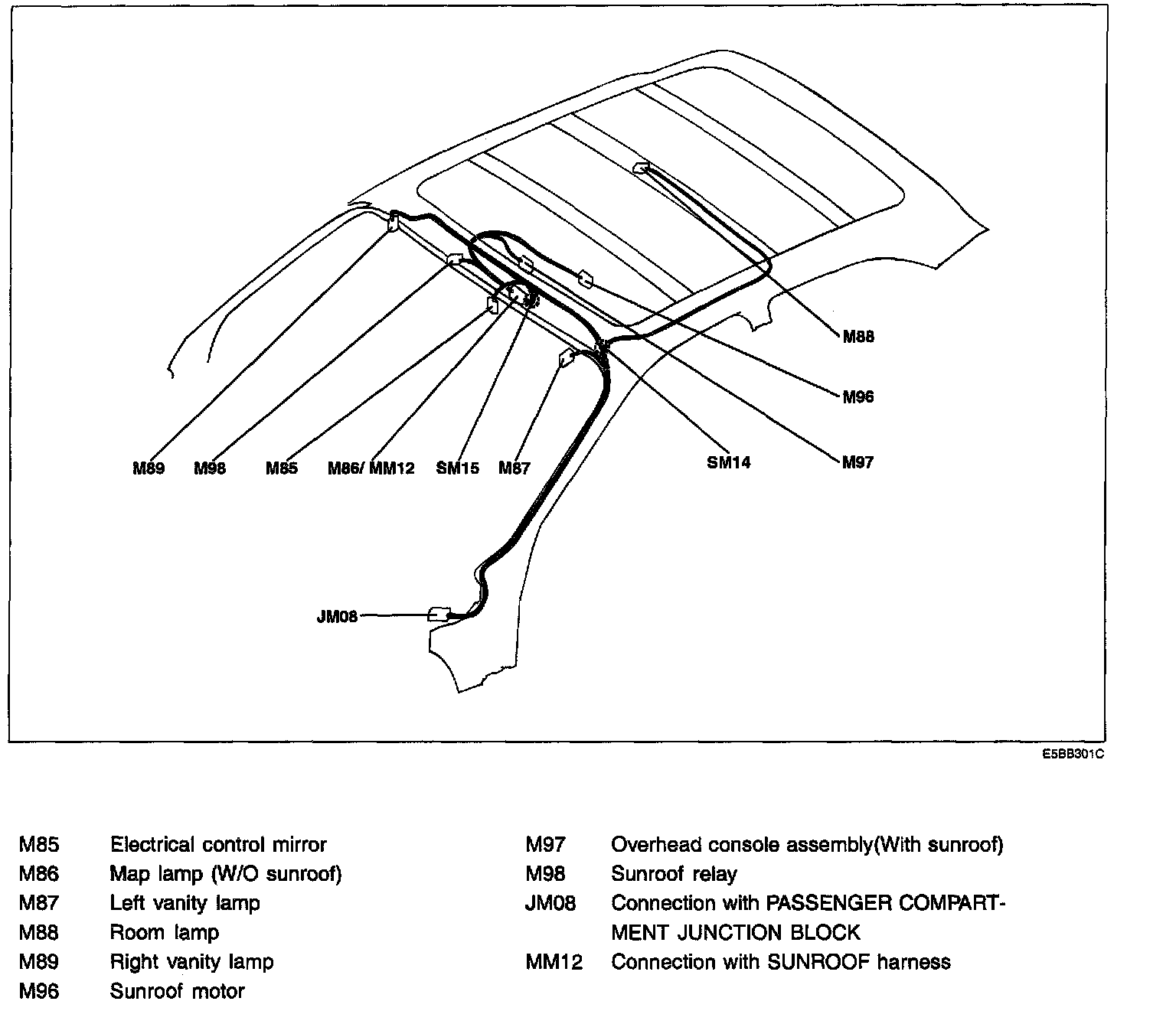

Main Harness (Roof):
