Circuit Test

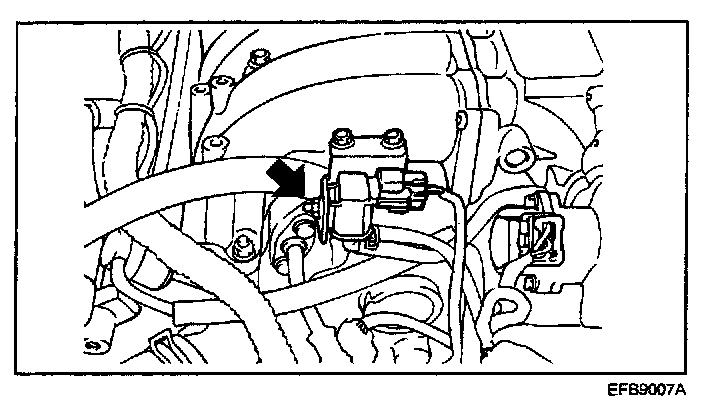

EVAPORATIVE EMISSION CANISTER PURGE CONTROL SOLENOID VALVE
The evaporative emission canister purge control solenoid valve is a duty control type, which controls purge air from the evaporative emission canister.

Circuit Diagram:

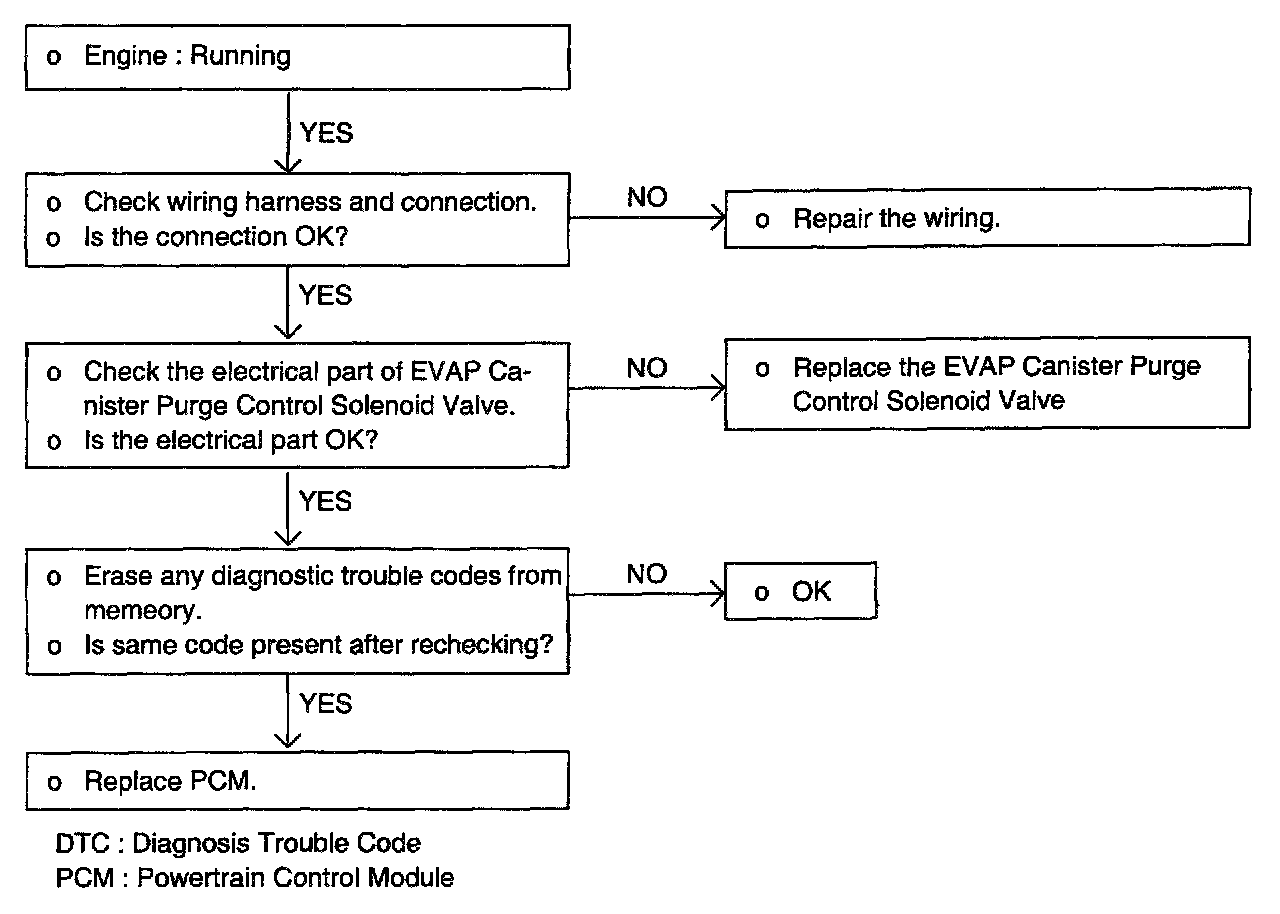

Troubleshooting Procedures:

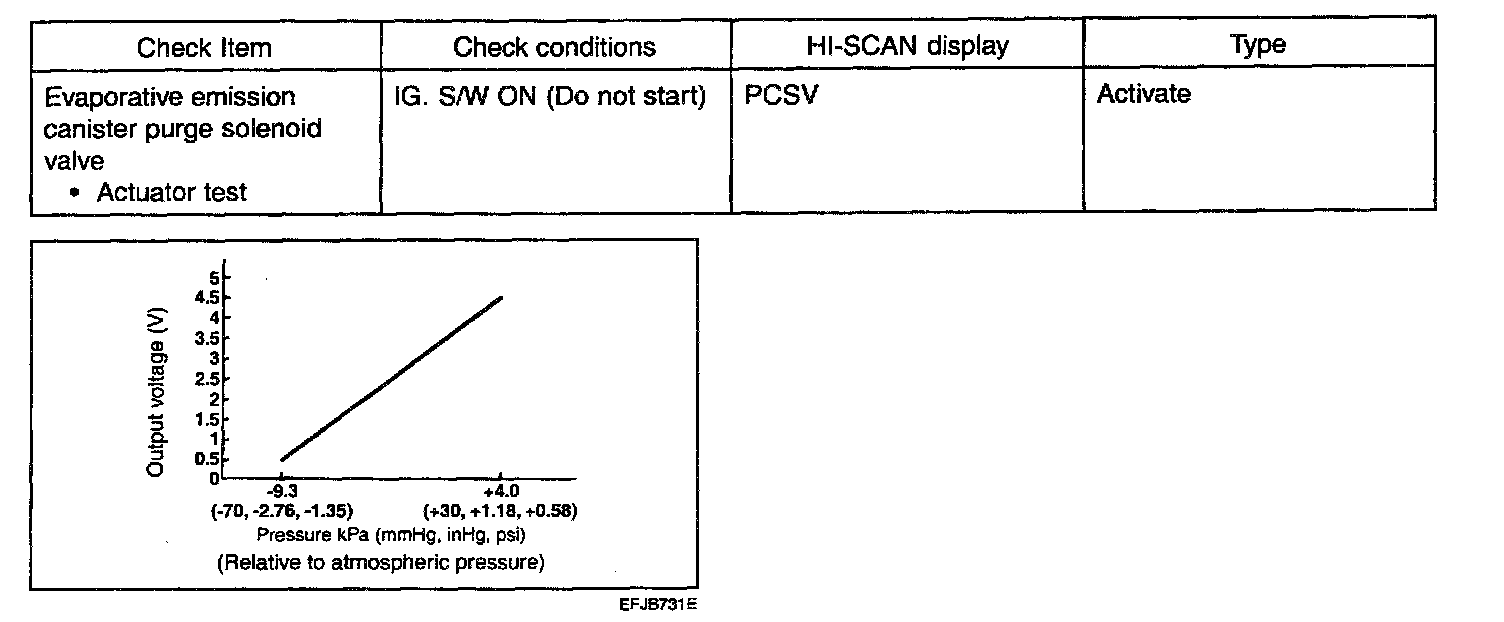

Using Hi-Scan (PRO):

USING HI-SCAN (PRO)

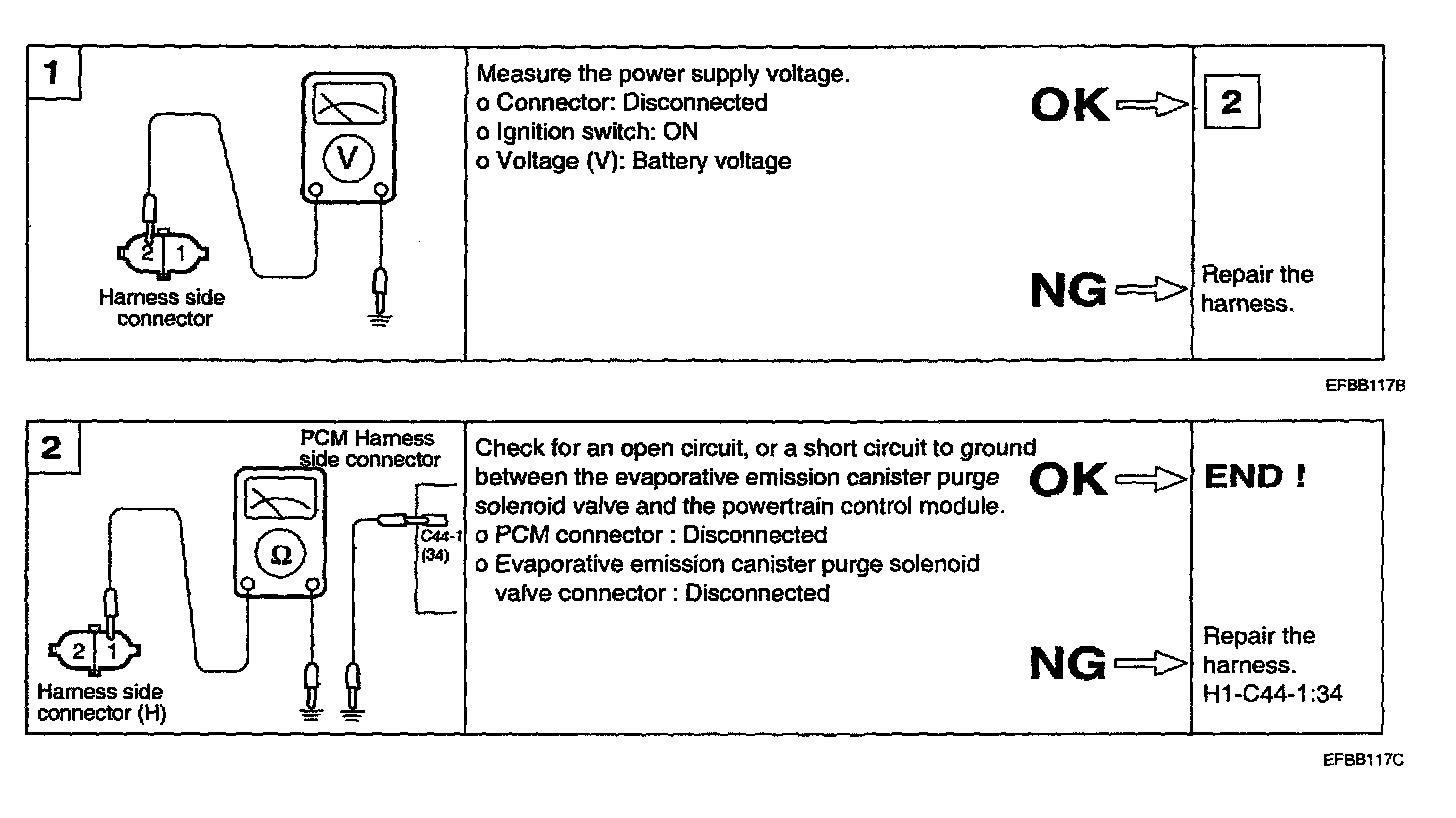

Harness Inspection Procedures:
