Rear Seat Belt

Seat Belts:

REAR SEAT BELT REMOVAL AND INSTALLATION
1. Remove the rear seat cushion, rear seat back and rear package tray trim.

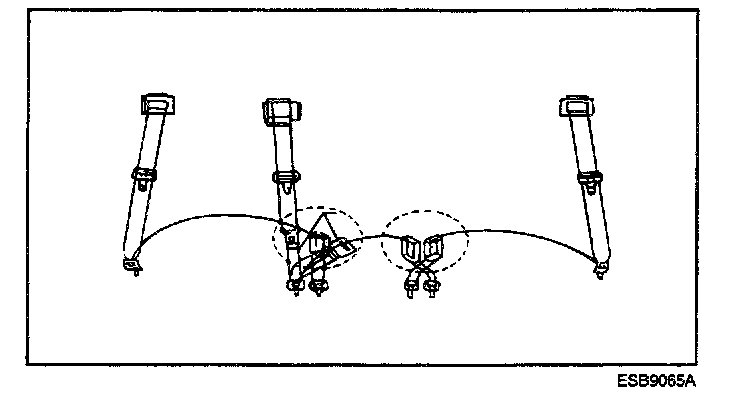

2. Remove the rear seat belt buckle and retractor.

Tightening torque
Seat belt buckle: 40-55 Nm (400-550 kg.cm, 29-40 lb.ft)

3. Installation is the reverse of removal.
