Disassembly and Reassembly

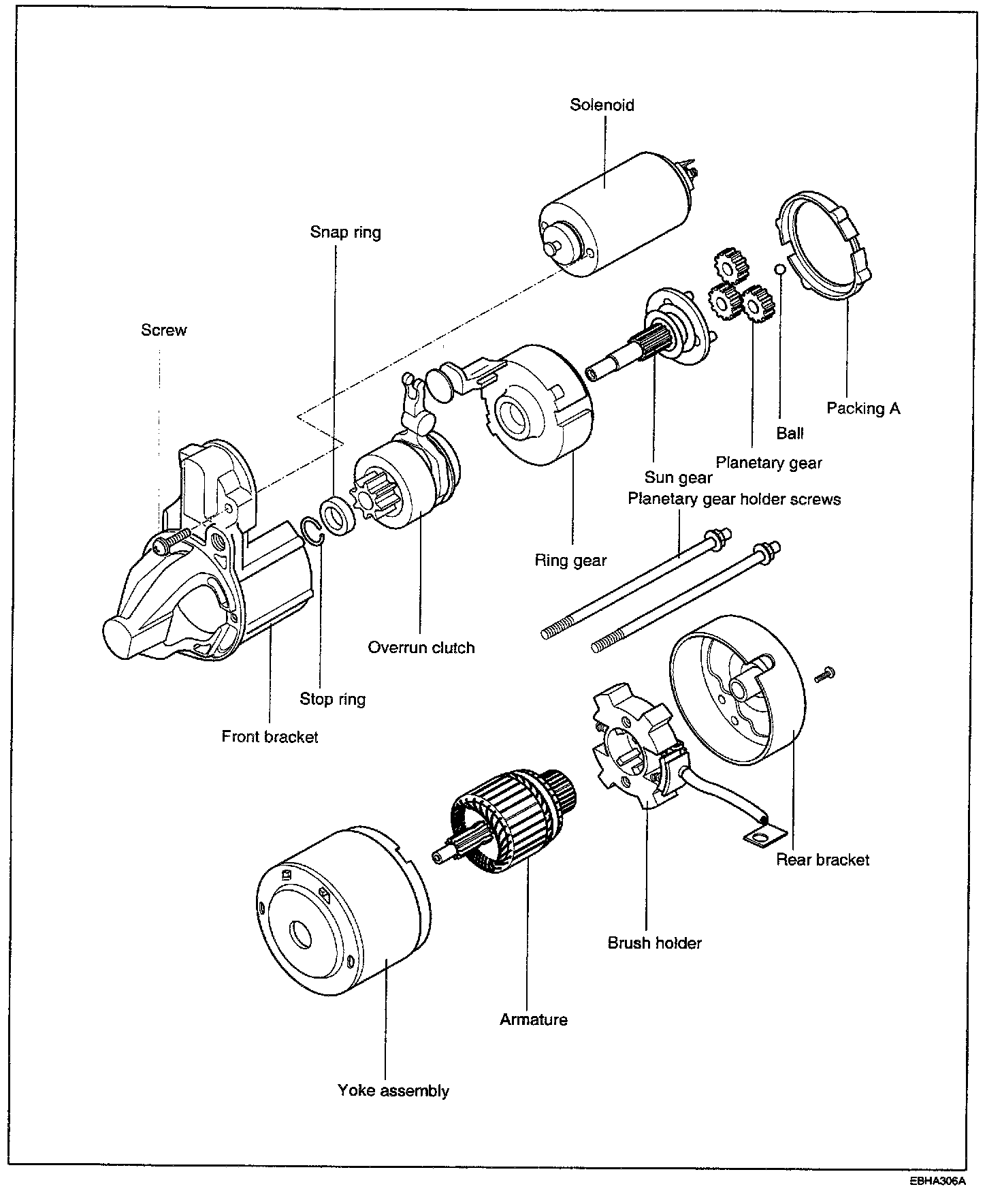

Starter Components:

DISASSEMBLY

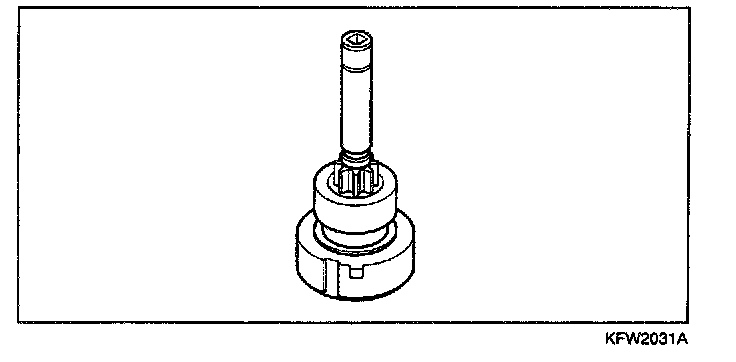

REMOVAL OF THE SNAP RING AND STOP RING




1. Press the stop ring using a socket.




2. After removing the snap ring (using snap-ring pliers), remove the stop ring and the overrunning clutch.

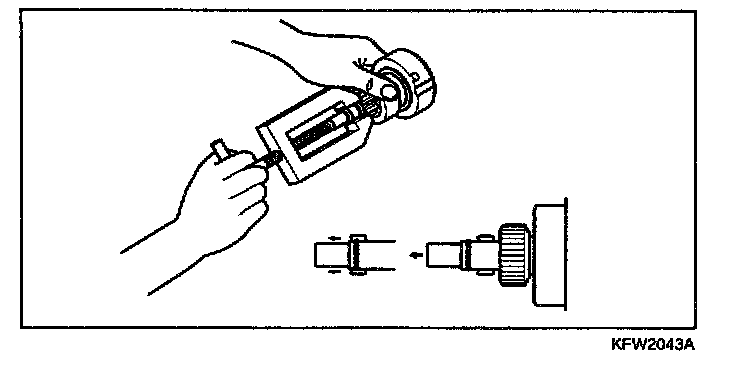

REASSEMBLY OF THE STOP RING AND SNAP RING
Using a suitable pulling tool, pull the overrunning clutch stop ring over the snap ring.
