Control Arm Bushing: Service and Repair

REAR UPPER ARM BUSHING REPLACEMENT





1. Remove the rear upper arm assembly.

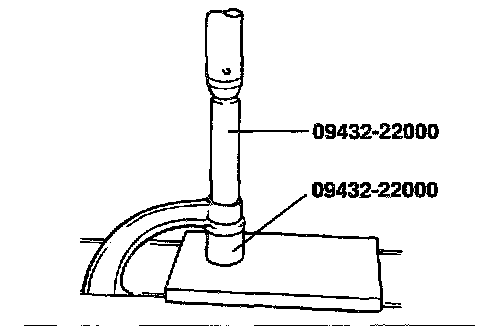

2. Using the special tools (09432-22000, 09545-21100), remove the pillow ball bush assembly.

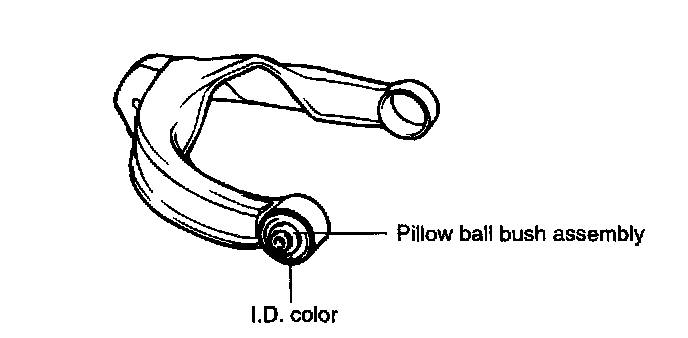

3. Set the pillow ball bush assembly so that its identification color is shown outside the upper arm.
4. Press-fit the pillow ball bush assembly in the upper arm.





5. Install the upper arm assembly.
