Rear Center Arm

REAR CENTER ARM REPLACEMENT
1. Loosen the ball joint nut, but do not remove it.

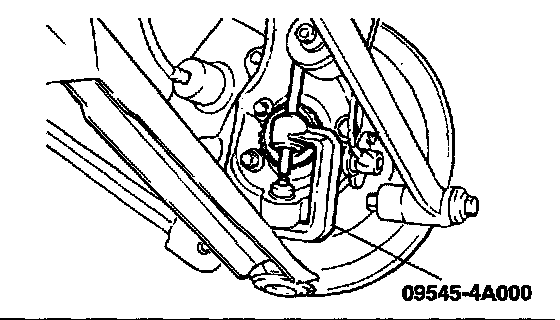

2. Using the special tool (09545-4A000), disconnect the ball joint from the rear axle carrier.
3. Remove the center arm mounting bolt.





4. Remove the center arm assembly.

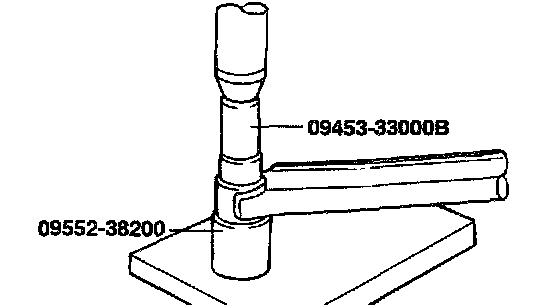

5. Using the special tools (09545-33000B, 09552 38200), replace the bushing.

INSPECTION
1. Check the bushing for wear and deterioration.
2. Check the center arm for bending or breakage.
3. Check the stabilizer link ball joint rotating torque.
1) If there is a crack in the dust cover, replace it and add grease.
2) Shake the ball joint stud several times.

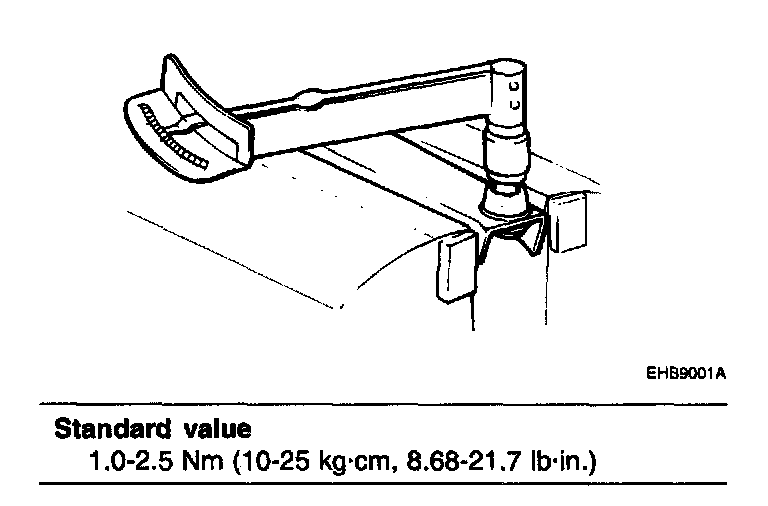

3) Mount the self-locking nut on the ball joint, and then measure the ball joint rotating torque.
Standard value 1.0 - 2.5 Nm (10 - 25 kg-cm, 8.68 - 21.7 inch lbs.)
4) If the rotating torque exceeds the upper limit of standard value, replace the ball joint assembly.
5) Even if the rotating torque is below the lower limit of the standard value, the ball joint may be reused unless it has drag and excessive play.
