Front

REMOVAL
1. Remove the wheel.

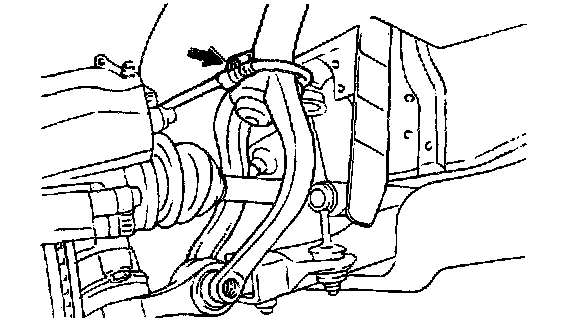

2. Detach the brake hose from the shock absorber mounting fork.

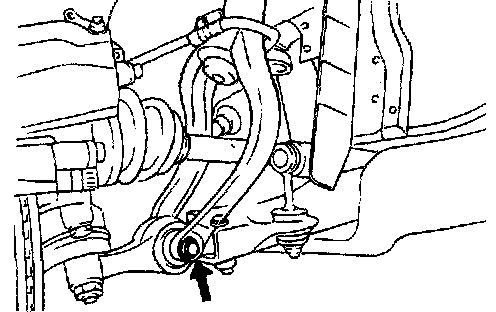

3. Remove the shock absorber mounting fork and lower arm connector mounting bolt.

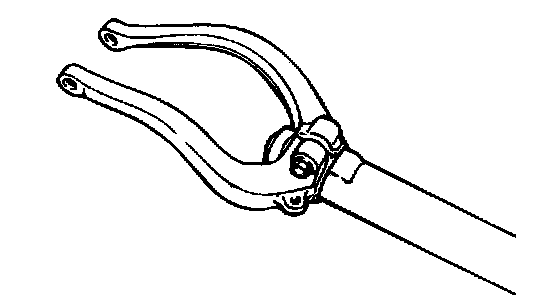

4. Remove the fork from the shock absorber.

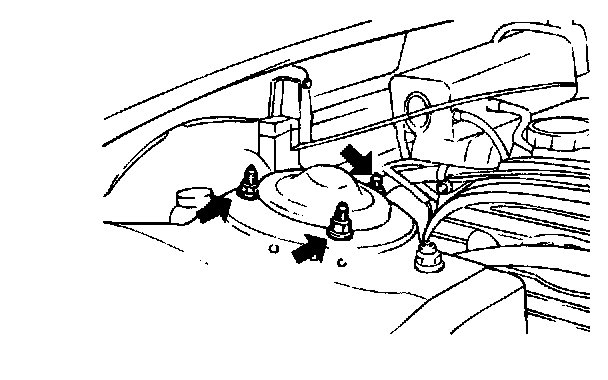

5. Remove the strut upper mounting nuts (3).
6. After pushing the axle assembly upward, remove the strut assembly.

INSTALLATION





1. Place the strut fork bracket toward the inside of the vehicle, then install the strut assembly.





2. Install the fork into the strut assembly.
3. Install the brake hose.
4. Install the wheel and tire.
